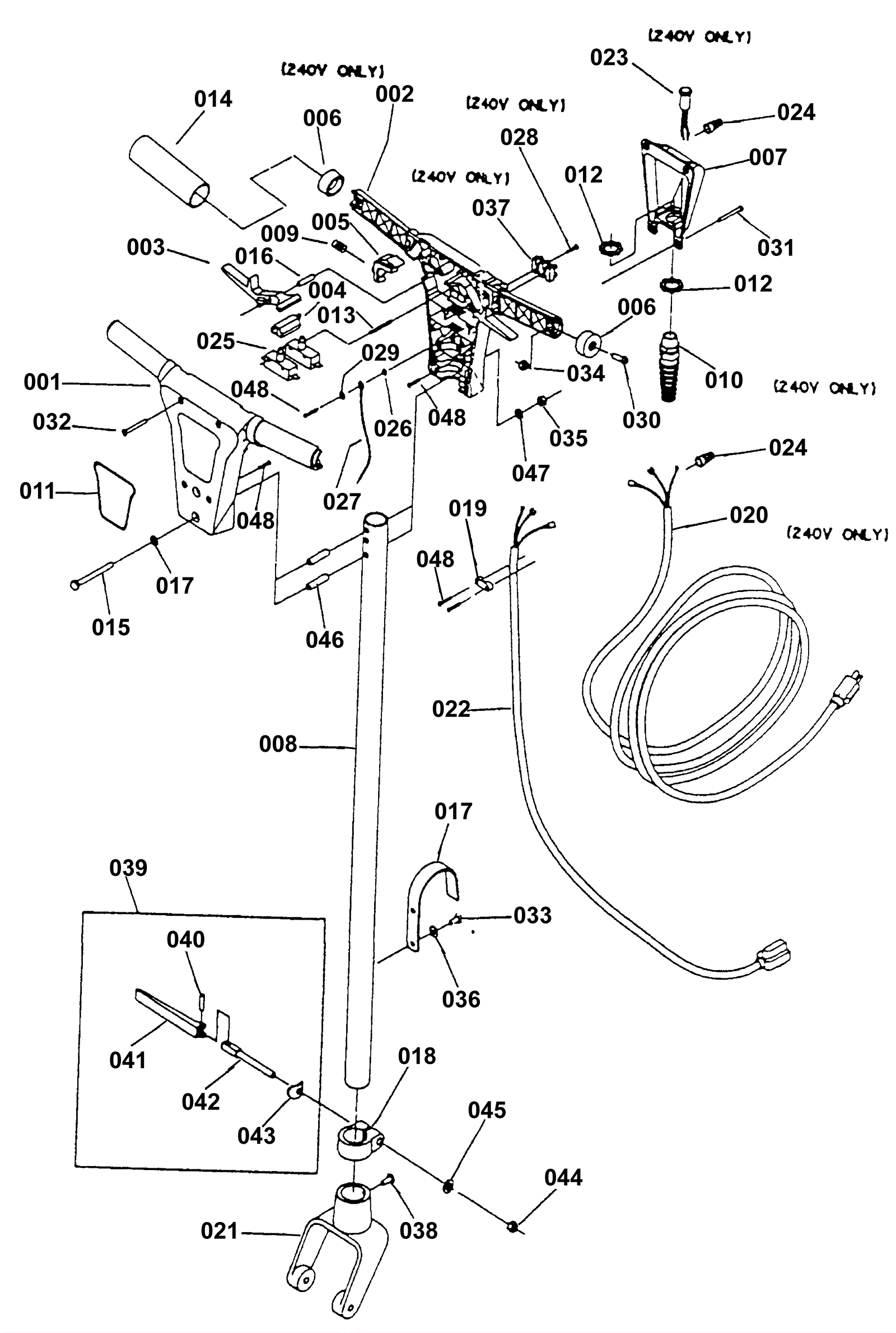

MC22 Electrical Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-4004 Front handle $26.60 1 ships same day
002 174-4005 Rear handle $24.61 1 ships same day
003 174-4001 Switch lever $3.45 2 ships same day
004 174-4006 Switch cap $2.53 1 usually ships 4-14 days
005 174-4007 Safety button $3.17 2 usually ships 4-14 days
006 174-4008 End cap $2.97 2 usually ships 4-14 days
007 174-5120 Rear electrical box (OBSOLETE) $8.60 1 usually ships 4-14 days
008 174-4010 Handle tube $123.98 1 usually ships 4-14 days
009 174-4011 Trigger spring $1.80 2 usually ships 4-14 days
010 174-4012 Strain relief $37.88 1 usually ships 4-14 days
011 174-4013 Minuteman runner decal $3.66 1 usually ships 4-14 days
012 174-3091 Nut 1/2 pipe lock $0.97 2 usually ships 4-14 days
013 174-4014 Roll pin 1/8 x 1.50 $0.97 2 usually ships 4-14 days
014 174-4015 Foam grip $4.04 2 usually ships 4-14 days
015 174-6260 Screw 1/4 - 20 x 2 1/4 truss head MC $0.97 2 usually ships 4-14 days
016 174-4016 Roll pin 1/4 x 1 $1.20 2 ships same day
017 174-4017 Cord hook $13.45 1 usually ships 4-14 days
018 174-4018 Handle clamp $47.30 1 usually ships 4-14 days
019 174-4019 Strain relief $2.06 1 usually ships 4-14 days
020a 174-4020 14/3 power cord 50 foot $153.95 1 usually ships 4-14 days
020b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) ships same day
021 174-4021 Yoke $132.47 1 usually ships 4-14 days
022 174-4022 Interconnect cord $35.10 1 usually ships 4-14 days
023 174-3083 Indicator light assembly $20.80 1 usually ships 4-14 days
024 174-4023 Wire cap $1.55 3 usually ships 4-14 days
025 174-4024 Switch $24.53 2 usually ships 4-14 days
026 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
027 174-4025 Wire assembly (green and yellow) $2.53 1 usually ships 1-5 days
028 174-5144 Screw 8-18 x 3/4 hi/lo $0.97 2 usually ships 4-14 days
029 999-0266 Washer #8 SAE flat stainless steel $0.99 1 ships same day
030 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 2 ships same day
031 174-5991 Screw #10 x 5/8 plated hi/low $0.99 4 usually ships 4-14 days
032 174-5134 Screw 10 x 1 1/4 $0.97 4 usually ships 4-14 days
033 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
034 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
035 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
036 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
038 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 2 ships same day
039 174-4002 Kick lever kit $33.40 1 ships same day
040 174-4026 Dowel kit $0.94 1 usually ships 4-14 days
041 174-4027 Kick lever $13.33 1 usually ships 4-14 days
042 174-4028 Cam bolt $13.94 1 usually ships 4-14 days
043 174-4061 Cam washer $4.10 1 usually ships 4-14 days
044 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
045 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
046 174-4029 Bushing $1.24 2 usually ships 4-14 days
047 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
048 174-4064 Screw 8 x 5/8 B hi/lo stainless steel plated $1.20 5 usually ships 4-14 days
