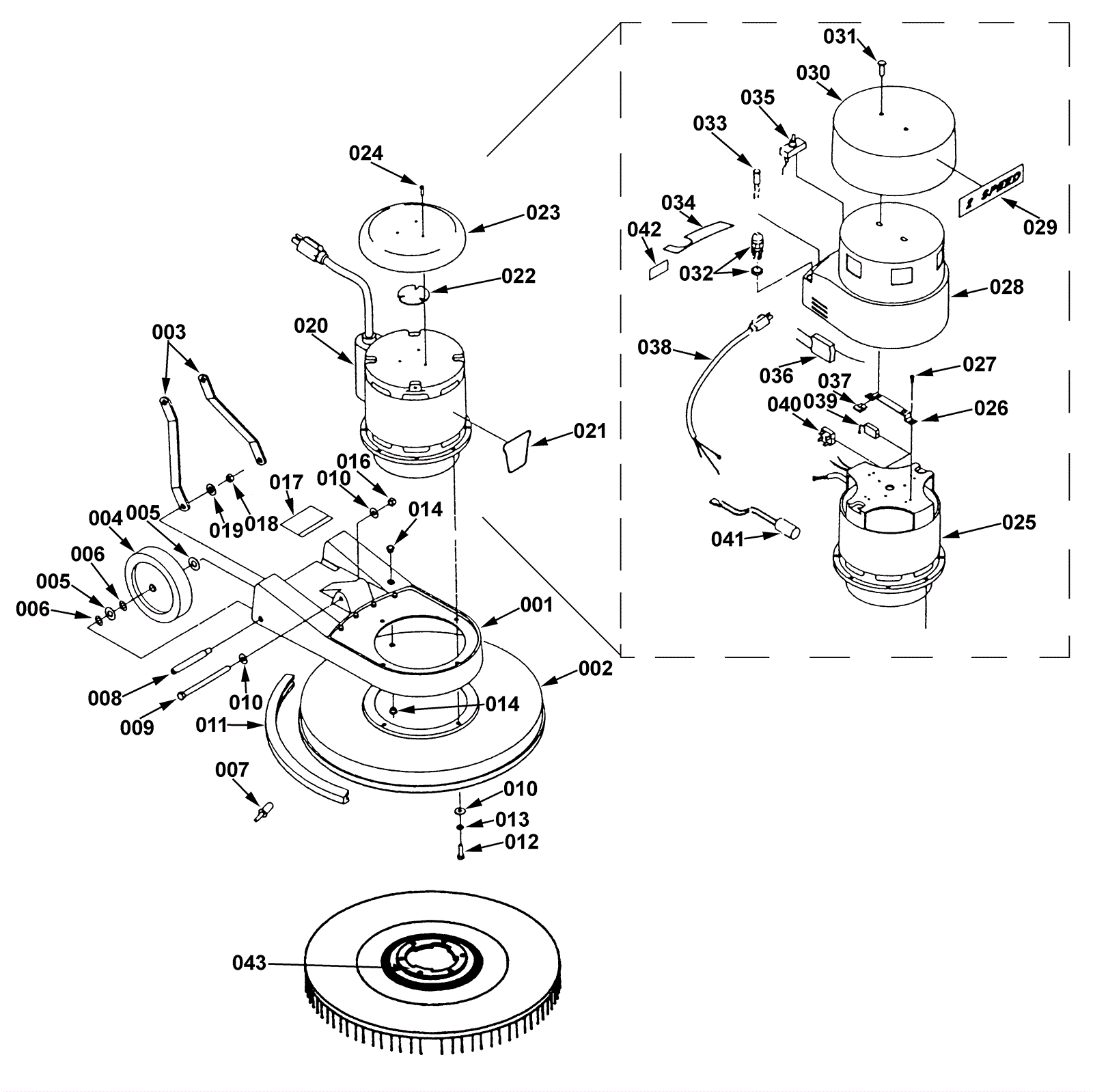

FRONT RUNNER 17 Motor Housing and Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 N/A Not available Call for price 1 Base casting usually ships 3-26 days
002a 174-4065 17 inch housing $119.21 1 usually ships 1-5 days
002b 274-7093 HOUSING, 20 inch $94.02 1 usually ships 4-14 days
003 174-4033 Handle brace (OBSOLETE) $8.25 2 usually ships 4-14 days
004 174-4034 Wheel $16.93 2 usually ships 4-14 days
005 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
006 174-5159 Washer 33/64 x 1/64 wave $0.99 4 usually ships 4-14 days
007 174-4035 Rivet $1.20 3 usually ships 4-14 days
008 174-4036 Axle $19.26 2 usually ships 4-14 days
009 174-4044 Yoke handle bolt $14.95 1 usually ships 1-5 days
010 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
011a 174-4066 17 inch bumper $42.66 1 usually ships 4-14 days
011b 174-4038 20 inch bumper (OBSOLETE) $26.60 1 usually ships 4-14 days
012 999-0178 Bolt 5/16-18 x 2 hex head grade 5 zinc plated $0.54 4 ships same day
013 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
014 174-4039 Snap bushing $1.20 2 usually ships 1-5 days
016 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
017 174-4040 Warning decal $3.66 1 usually ships 4-14 days
018 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 2 ships same day
019 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
020a 174-4043 120V 1.5HP motor with gear $921.40 1 usually ships 1-5 days
020b 174-4069 120V 2HP motor with gear $1,432.32 1 usually ships 1-5 days
021a 174-4067 Minuteman 17 decal Call for price 1 usually ships 1-5 days
021b N/A Not available Call for price (Minuteman 20 decal) usually ships 3-26 days
022 174-4046 Cork gasket $5.62 1 usually ships 4-14 days
023 174-4047 Motor cover $75.76 1 usually ships 4-14 days
024 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
025 174-4048 Motor and gear assembly $645.08 1 usually ships 1-5 days
026 174-4049 Mounting bracket $13.64 1 usually ships 4-14 days
027 999-0564 Screw 10 x 3/8 pan head phillips sheet metal $0.99 2 ships same day
028 174-4050 Motor cover $65.45 1 usually ships 1-5 days
029 174-4051 2-speed decal $1.30 1 usually ships 1-5 days
030 274-4625 MOTOR TOP COVER $32.99 1 usually ships 1-5 days
031 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
032 174-4053 Strain relief $6.83 1 usually ships 1-5 days
033 174-3083 Indicator light assembly $20.80 1 usually ships 4-14 days
034 174-4054 High/low decal Call for price 1 usually ships 1-5 days
035 174-0216 Toggle switch $16.85 1 usually ships 4-14 days
036 174-4055 Foam dampener $2.14 1 usually ships 1-5 days
037 174-0526 Nut 5/16-18 u-type $1.20 1 usually ships 4-14 days
038 174-4056 8 inch pigtail cord $9.99 1 usually ships 1-5 days
039 174-4057 Carbon brush $17.52 4 usually ships 4-14 days
040 991-1813 120V rectifier $6.88 1 usually ships 5-16 days
041 174-4058 Traic control $169.46 1 usually ships 4-14 days
042 174-4059 Brush wear indicator decal $3.66 1 usually ships 1-5 days
043 SEE NOTE Please See Brushes Page Call for price usually ships 1-5 days
N/S 274-7183 CAPACITOR, START $128.17 1 usually ships 4-14 days
N/S 274-7204 CAPACITOR, RUN $132.13 1 usually ships 4-14 days
