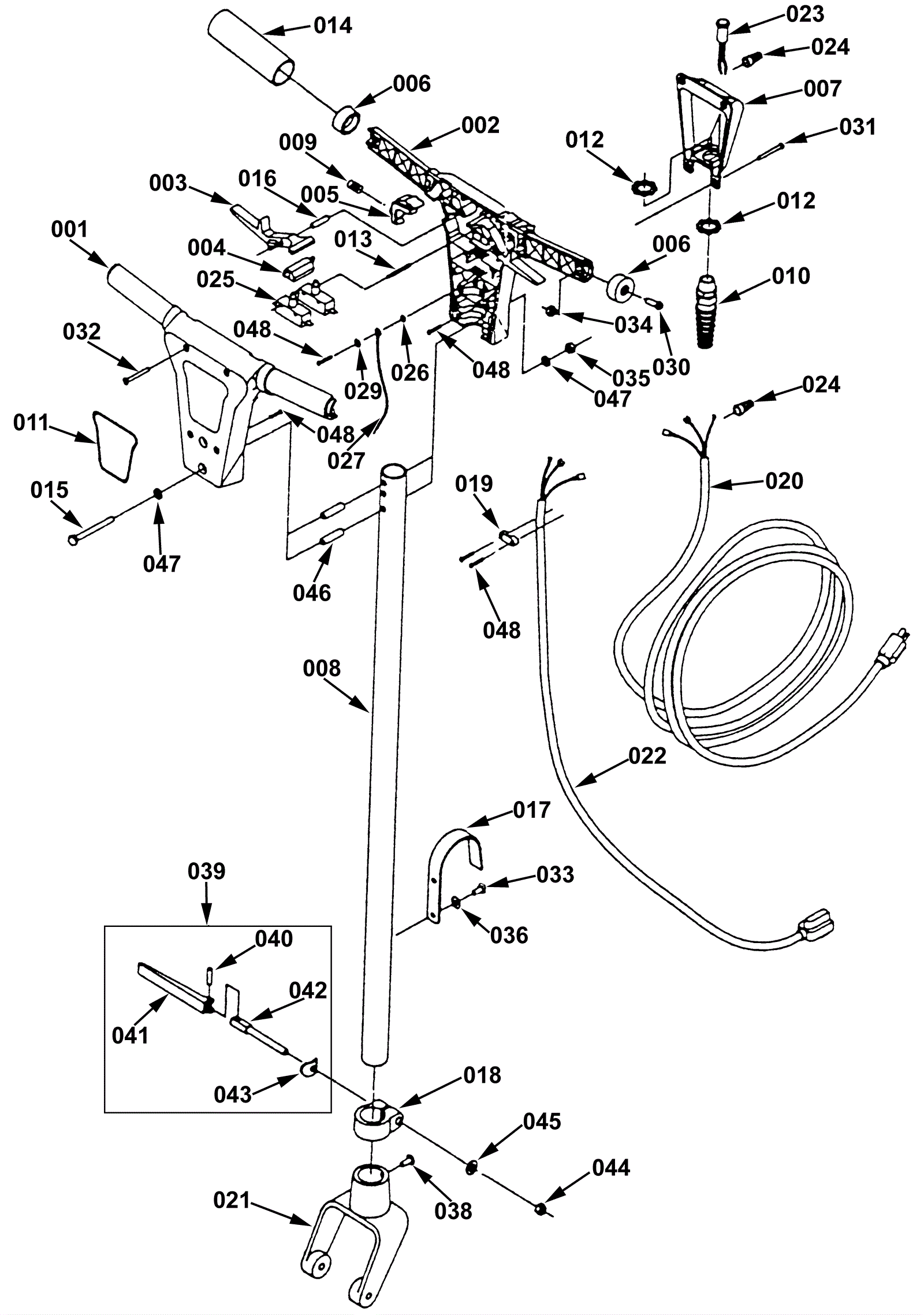

Handle Assembly

#PartDescription ReqNotesAvailability
001 174-4004 Front handle 1
002 174-4005 Rear handle 1
003 174-4001 Switch lever 2
004 174-4006 Switch cap 1
005 174-4007 Safety button 2
006 174-4008 End cap 2
007 174-5120 Rear electrical box (OBSOLETE) 1
008 174-4010 Handle tube 1
009 174-4011 Trigger spring 2
010 174-4012 Strain relief 1
011 174-4013 Minuteman runner decal 1
012 174-3091 Nut 1/2 pipe lock 2
013 174-4014 Roll pin 1/8 x 1.50 2
014 174-4015 Foam grip 2
015 999-0675 Screw 1/4-20 x 2 1/4 truss head slotted zinc 2
016 174-4016 Roll pin 1/4 x 1 2
017 174-4017 Cord hook 1
018 174-4018 Handle clamp 1
019 174-4019 Strain relief 1
020a 174-4020 14/3 power cord 50 foot 1 (OEM)
020b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
020c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
020d 174-4056 8 inch pigtail cord 1
021 174-4021 Yoke 1
022 174-4022 Interconnect cord 1
023 174-3083 Indicator light assembly 1
024 174-4023 Wire cap 3
025 174-4024 Switch 2
026 999-0089 Washer #10 internal star lock zinc plated 1
027 174-4025 Wire assembly (green and yellow) 1
029 999-1267 Washer M8 flat zinc 1
030 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated 2
031 999-0013 Screw 10 x 5/8 pan head phillips sheet metal 4
032 999-0677 Screw 10 x 1 1/2 pan head phillips sheet metal zinc 4
033 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 2
034 999-0190 Nut 1/4-20 hex plain finish 2
035 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
036 999-0060 Washer 1/4 split lock plain finish 2
038 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 2
039 174-4002 Kick lever kit 1 (includes 40-43)
040 174-4026 Dowel kit 1
041 174-4027 Kick lever 1
042 174-4028 Cam bolt 1
043 174-4061 Cam washer 1
044 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
045 999-0024 Washer 5/16 flat stainless steel 1
046 174-4029 Bushing 2
047 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4
048 999-0678 Screw 8-18 x 5/8 pan head self-drilling stainless steel 5
N/S 274-8128 SHAMPOO TNK COMPLETE
N/S 209-0013 4 gallon solution tank kit for round handle side x sides 1
N/S 274-2719 CORD HOOK ASSY 1 FR17115, FR20115
N/S 209-0017 2 1/2 gallon solution tank kit (OBSOLETE)
