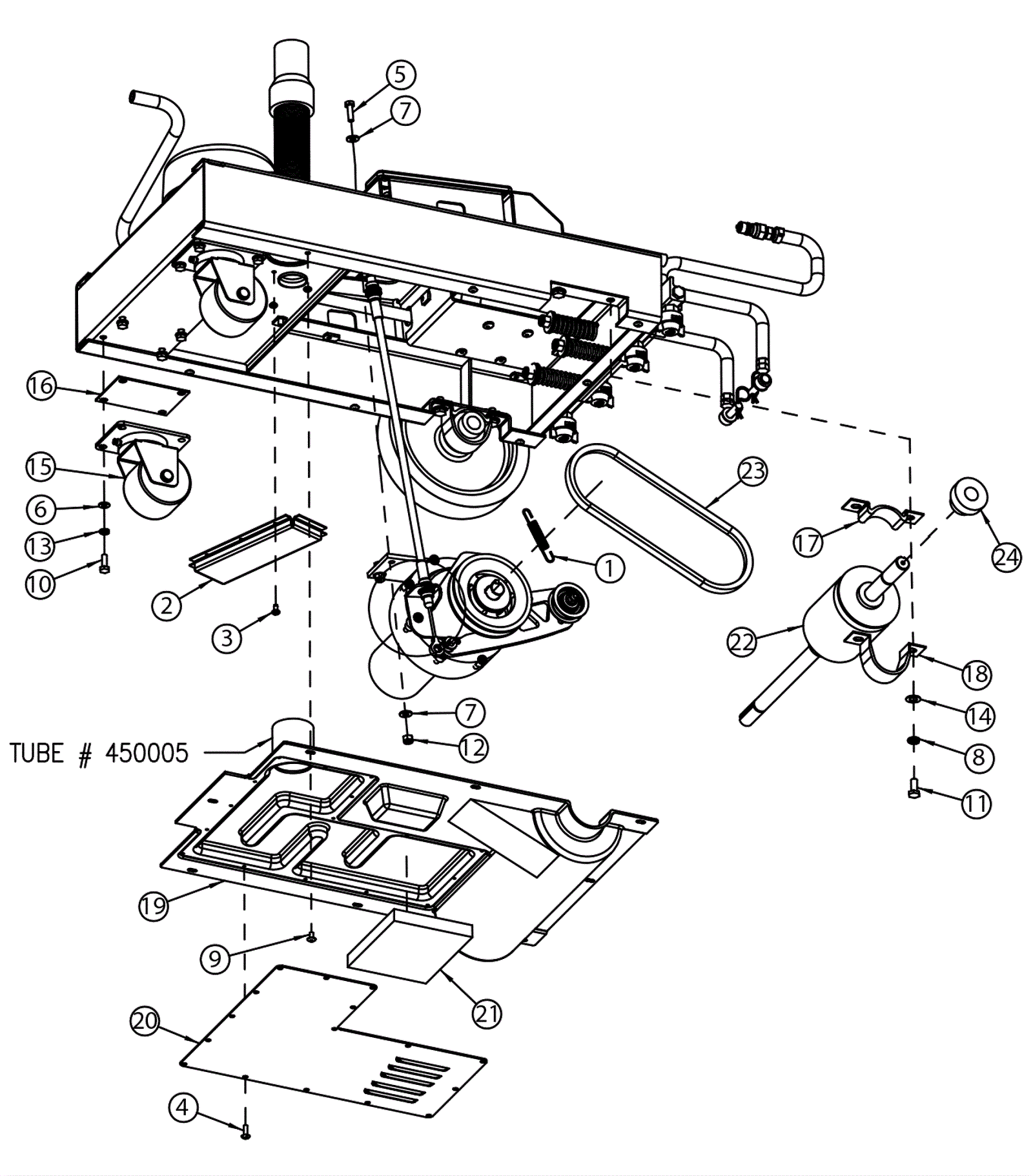

AMBASSADOR 20 Base Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 174-0008 Return spring $2.78 1 usually ships 4-14 days
2 174-3004 Air manifold $64.67 1 usually ships 4-14 days
4 174-5991 Screw #10 x 5/8 plated hi/low $0.99 16 usually ships 4-14 days
5 174-6289 Bolt 1/4-20 x 7/8 hex head steel plated $0.97 4 usually ships 1-5 days
6 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
7 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
8 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
9 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 6 ships same day
10 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 8 ships same day
11 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 4 ships same day
12 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
13 999-0632 Washer 1/4 split lock stainless steel $0.99 8 ships same day
14 174-3203 Washer 13/32 x 1/32 flat stainless steel $0.86 4 ships same day
15 174-1261 Caster wheel $86.91 2 usually ships 1-5 days
16 174-1272 Plate $43.75 2 usually ships 1-5 days
17 174-4554 Bearing base $5.63 2 usually ships 4-14 days
18 174-4555 Bearing cap $5.63 2 usually ships 4-14 days
19 174-1285 Baffle exhaust $176.63 1 usually ships 1-5 days
20 174-1286 Baffle exhaust cover $86.34 1 usually ships 1-5 days
21 174-1288 Baffle exhaust filter $6.10 1 usually ships 1-5 days
22 174-2922 Differential $382.33 1 usually ships 1-5 days
23 274-2243 DRV BELT-AMB 20 NEW DESIGN 1/2 inch X 27 inch $14.54 1 usually ships 4-14 days
24 174-1291 Bearing with collar $63.30 2 usually ships 1-5 days
