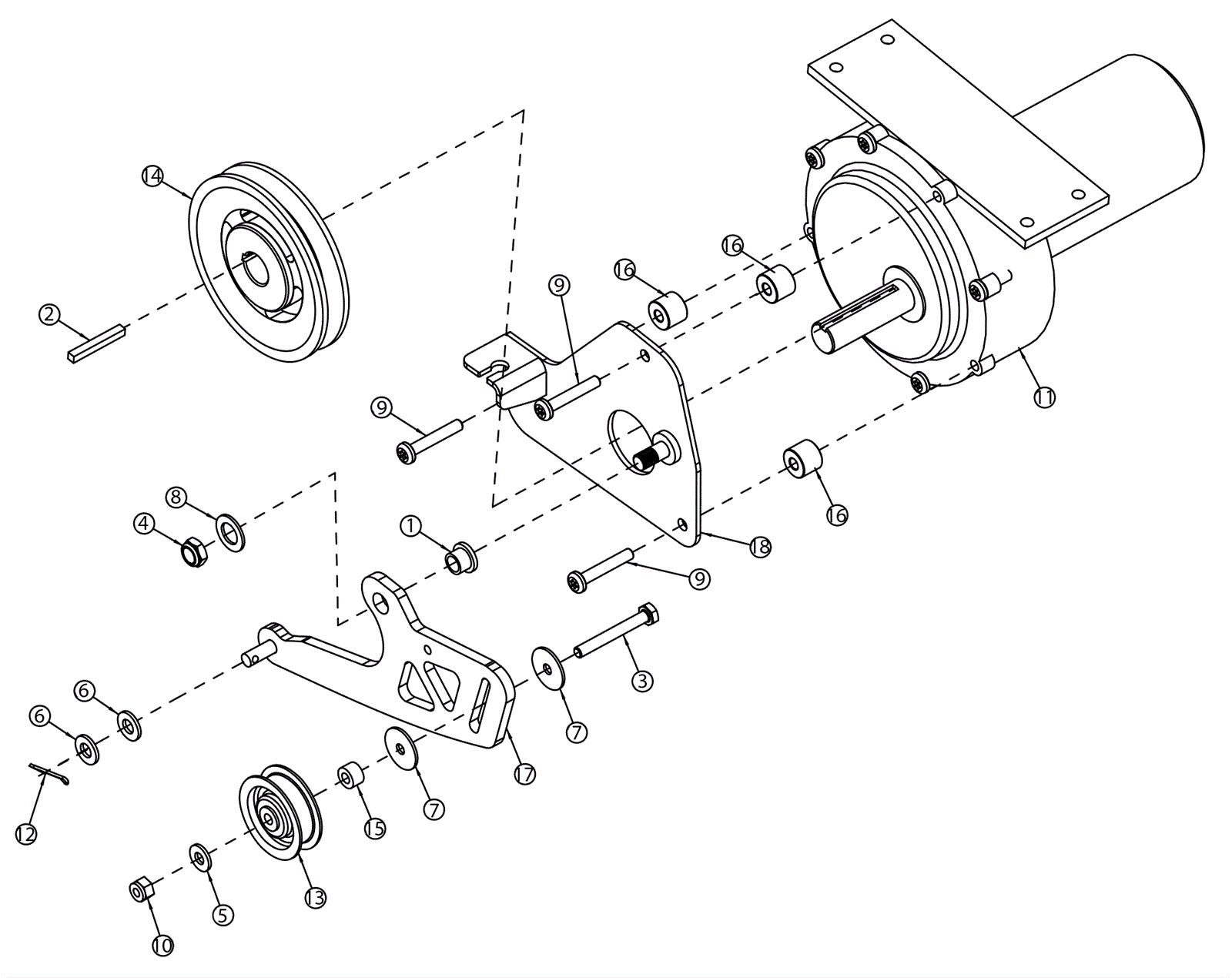

AMBASSADOR 20 Gear Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-0138 Bushing $2.96 1 usually ships 1-5 days
2 174-5717 Square keyway $1.13 1 usually ships 4-14 days
3 999-1892 Screw 1/4-20 x 2 hex cap stainless steel $1.52 1 ships same day
4 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
5 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
7 174-0536 Washer 1/4 $0.97 2 usually ships 4-14 days
8 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 1 usually ships 4-14 days
9 174-4549 Screw $0.95 3 usually ships 4-14 days
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
11 274-9398 MOTOR - GEAR, AMB 20, 140V DC $667.73 1 usually ships 1-5 days
12 997-2506 Cotter pin $0.99 1 ships same day
13 174-1274 Idler pulley $14.00 1 usually ships 1-5 days
14 174-1284 Drive pulley $33.71 1 usually ships 1-5 days
15 174-4550 Spacer $12.61 1 usually ships 4-14 days
16 174-4551 Spacer, 11/16 x 17/16 $4.51 3 usually ships 4-14 days
17 174-4552 Tension arm weldment $63.76 1 usually ships 4-14 days
