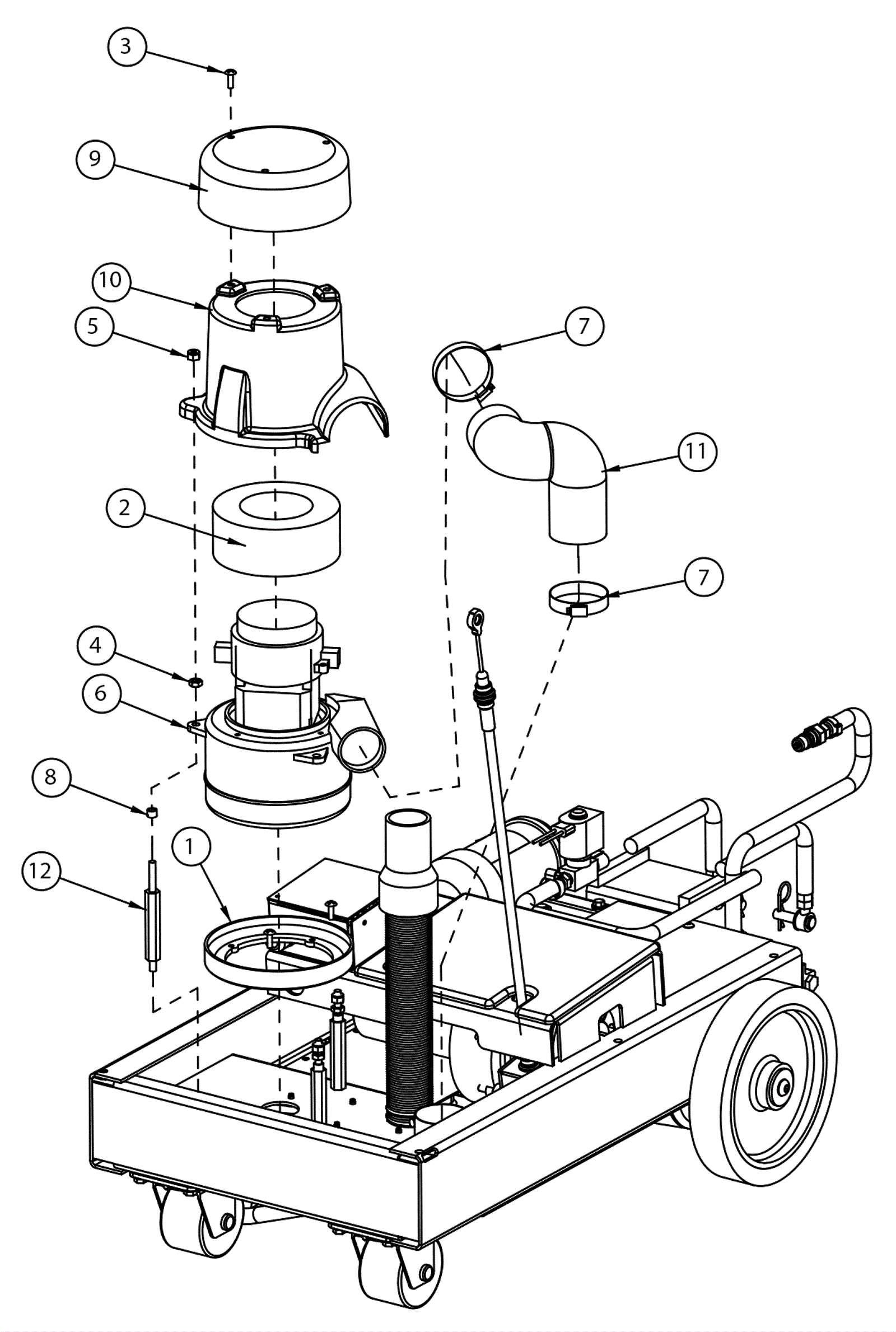

AMBASSADOR 20 Vacuum Motor Assembly

#PartDescriptionPriceReqNotesAvailability
1a 164-0881 Vacuum motor gasket $12.20 1 usually ships 3-5 days
1b 991-3029 Vacuum motor gasket $1.89 1 (NON-OEM) ships same day
2 174-0171 Foam ring $2.57 1 usually ships 4-14 days
3 174-5991 Screw #10 x 5/8 plated hi/low $0.99 3 usually ships 4-14 days
4 999-0609 Nut 1/4-20 hex stainless steel $0.99 3 ships same day
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
6 174-8437 120V vacuum motor $202.30 1 usually ships 4-14 days
7 174-5175 Hose clamp $6.79 2 usually ships 1-5 days
8 174-0169 Bushing $4.18 3 usually ships 1-5 days
9 174-0159 Vacuum motor top cover $27.14 1 usually ships 4-14 days
10 174-0161 Vacuum motor bottom cover $89.35 1 usually ships 4-14 days
11 174-1273 Vacuum motor hose $4.83 1 usually ships 1-5 days
12 174-0168 Spacer $12.56 3 usually ships 1-5 days
