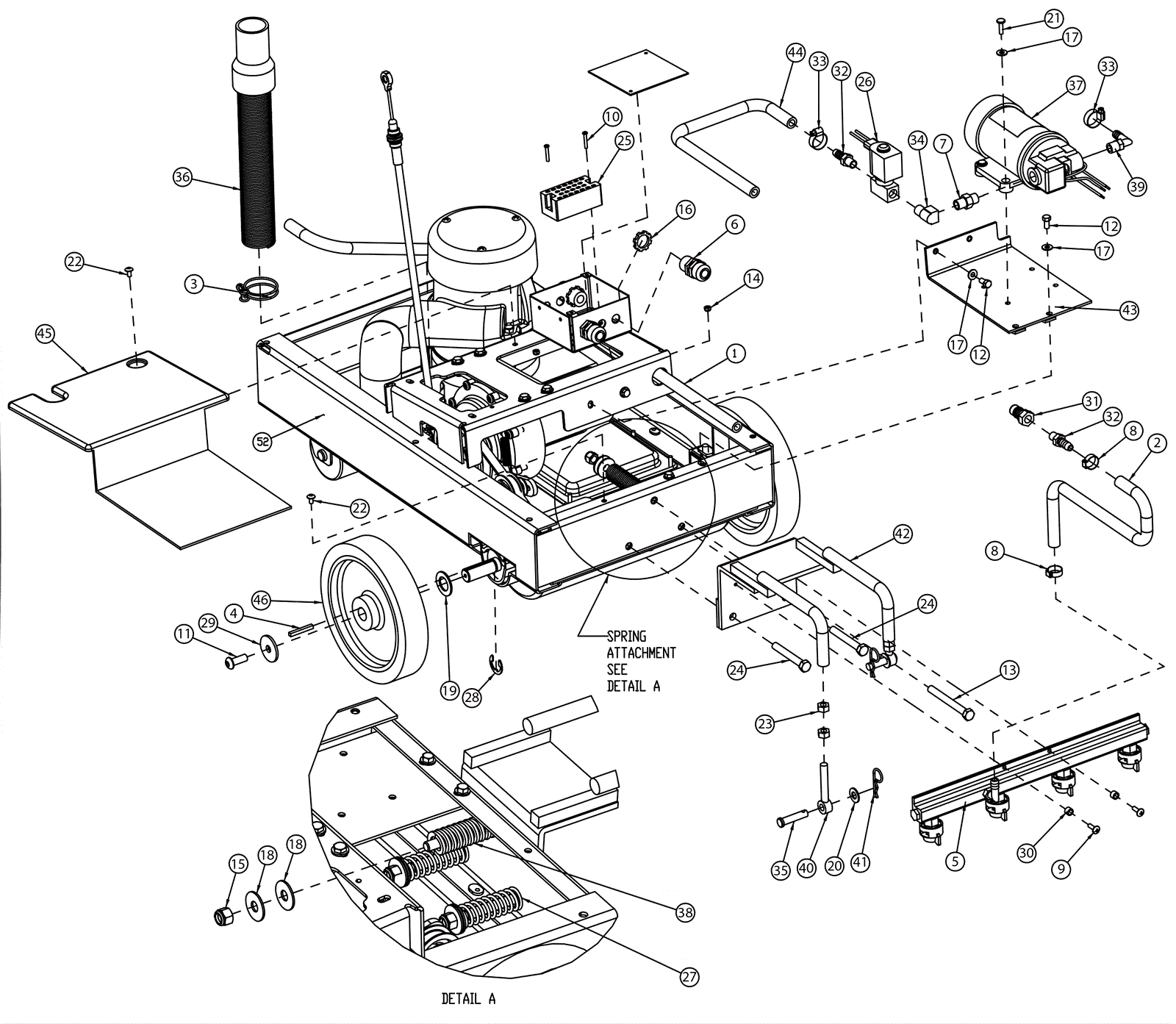

AMBASSADOR 20 Base Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 274-3464 HOSE 3/8 X 45 inch WIRE REINFORCED SCV 24/26 $20.57 1 usually ships 1-5 days
2 174-0085 Wire reinforced hose $14.09 1 usually ships 1-5 days
3 997-2000 Hose clamp $2.37 1 ships same day
4 174-5717 Square keyway $1.13 2 usually ships 4-14 days
5 174-1259 Spray bar assembly $318.91 1 usually ships 4-14 days
6 174-8002 Plastic strain relief $7.61 3 usually ships 1-5 days
7 174-3059 Brass bulkhead fitting $12.34 1 usually ships 1-5 days
8 997-2001 Hose clamp $2.42 2 ships same day
9 999-1070 Screw 10-32 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
10 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 2 ships same day
11 999-0594 Screw 3/8-16 x 1 socket head alloy plain finish $1.14 2 ships same day
12 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
13 999-0848 Bolt 3/8-16 x 3 1/2 hex head grade 5 plain finish $0.99 1 ships same day
14 999-0337 Nut 6-32 nylon insert lock stainless steel $0.99 2 ships same day
15 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 3 ships same day
16 174-3091 Nut 1/2 pipe lock $0.97 3 usually ships 4-14 days
17 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
18 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
19 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
20 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
22 999-0585 Screw 10-24 x 3/8 truss head slotted stainless steel $0.99 5 ships same day
23 999-0635 Nut 3/8-16 hex stainless steel $0.99 4 ships same day
24 999-0352 Bolt 3/8-16 x 2 3/4 hex head grade 5 zinc plated $1.67 2 ships same day
25 174-3033 Terminal block $36.36 1 usually ships 4-14 days
27 174-4546 Spring $5.77 2 usually ships 4-14 days
28 174-5728 Retaining ring $1.06 2 usually ships 4-14 days
29 174-0234 Washer $2.94 2 usually ships 4-14 days
30 174-1263 Bushing $1.18 2 usually ships 1-5 days
31 174-0218 Male quick coupler $26.78 1 usually ships 1-5 days
32 174-0078 Barb $6.66 2 usually ships 4-14 days
33 174-6011 Hose clamp $3.88 2 usually ships 4-14 days
34 174-0221 1/4 brass fitting $3.55 1 usually ships 4-14 days
35 174-1264 Clevis pin $3.04 2 usually ships 1-5 days
36 174-1266 Vacuum hose $64.29 1 usually ships 4-14 days
37 174-3043 100 PSI pump $424.26 1 usually ships 4-14 days
38 174-1268 Spring $10.50 1 usually ships 1-5 days
39 164-0187 90 degree elbow barb $5.66 1 ships same day
40 174-5808 Bolt 3/8-16 x 2 1/2 eye $32.92 2 usually ships 4-14 days
41 174-0200 Cotter pin $1.20 2 usually ships 4-14 days
42 174-1279 Brush mount assembly $145.22 1 usually ships 4-14 days
43 174-4547 Bracket $63.38 1 usually ships 4-14 days
44a 274-2745 HOSE-WIRE REINF 3/8 X 24 inch $7.25 1 (OEM) usually ships 1-5 days
44b 991-1401 Clear vinyl tubing (sold by the inch) $0.50 1 (NON-OEM) ships same day
45 174-1290 Drive motor cover $53.60 1 usually ships 1-5 days
46 174-5716 Wheel 8 Inch $79.24 2 usually ships 4-14 days
