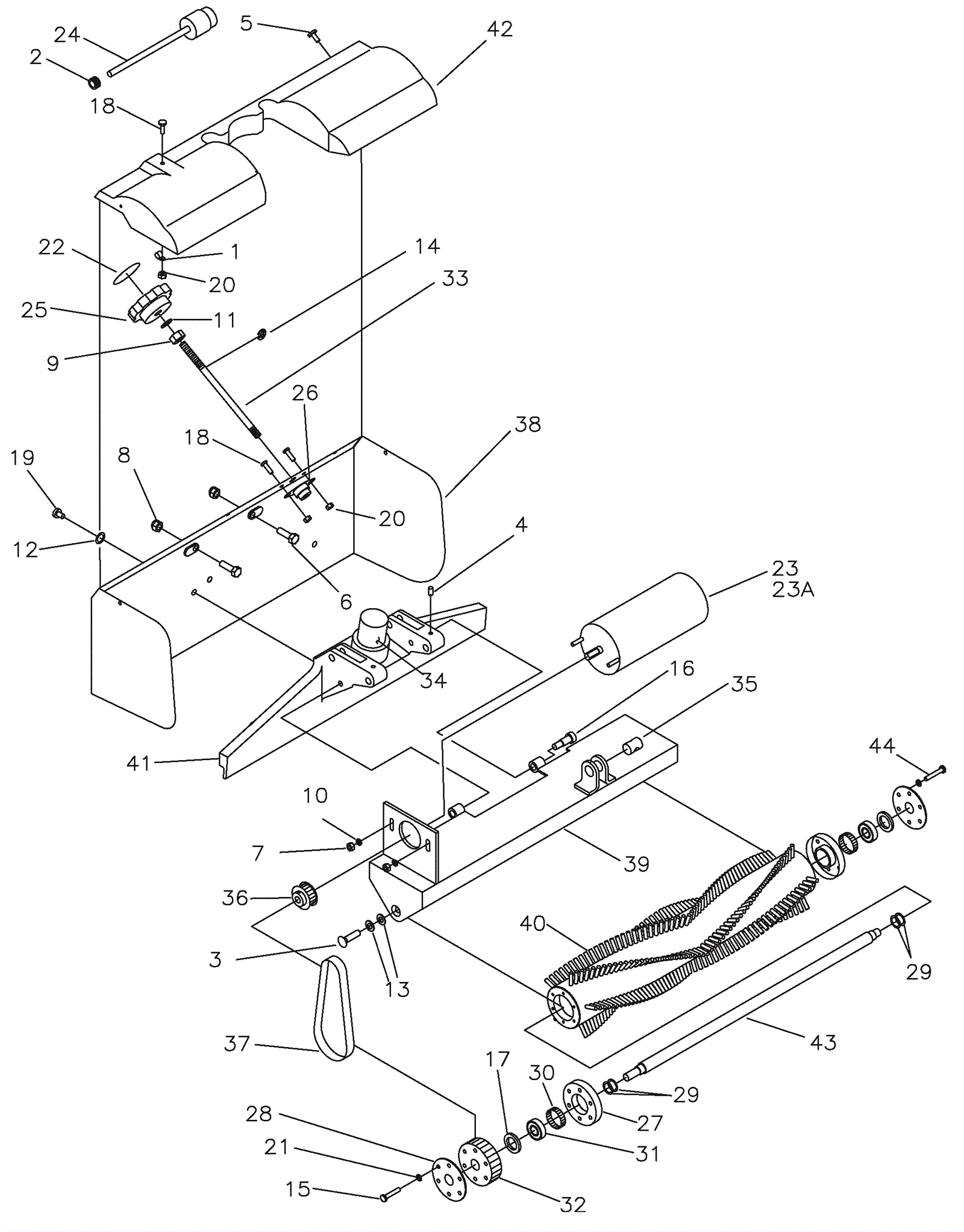

AMBASSADOR 20 Brush Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-4544 Clamp $1.60 1 usually ships 4-14 days
2 174-3031 Grommet $1.24 1 usually ships 1-5 days
3 174-5241 Screw 5/16 x 18 x .5/8 socket cap $0.97 2 usually ships 4-14 days
4 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 2 ships same day
5 174-5991 Screw #10 x 5/8 plated hi/low $0.99 5 usually ships 4-14 days
6 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated $0.99 2 ships same day
7 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
8 999-0958 Nut 5/16-18 acorn stainless steel $10.11 2 ships same day
9 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
11 999-0318 Washer 3/8 external star lock zinc plated $0.99 1 ships same day
12 174-5227 Washer 1/4 steel plated $0.97 11 usually ships 4-14 days
13 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
14 174-0140 Retaining ring $0.86 1 usually ships 4-14 days
15 174-2402 Screw 10 x 1 1/4 pan head $0.97 12 usually ships 1-5 days
16 999-0492 Bolt 3/8 x 3/4 x 5/16 shoulder socket head $1.91 2 ships same day
17 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
18 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 3 ships same day
19 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 11 ships same day
20 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 3 ships same day
21 999-0089 Washer #10 internal star lock zinc plated $0.99 12 ships same day
22 174-1292 Brush pressure decal $4.90 1 usually ships 1-5 days
23a 174-1294 120V brush motor $270.10 1 usually ships 4-14 days
23b 174-5998 Vacuum motor brush ACS 240V $169.43 1 usually ships 1-5 days
24 174-1293 Brush power cord $61.15 1 usually ships 1-5 days
25 174-1295 Threaded adjustment knob 3/8 x 16 $9.31 1 usually ships 4-14 days
26 174-5239 Flanged bearing $75.83 1 usually ships 1-5 days
27 174-2189 Bearing cup $39.20 2 usually ships 4-14 days
28 174-2190 Bearing cover $10.00 2 usually ships 1-5 days
29 174-2193 Washer belleville $0.93 4 usually ships 4-14 days
30 174-2194 Retaining ring $6.88 2 usually ships 4-14 days
31 174-2195 Bearing $20.92 2 usually ships 4-14 days
32 174-1296 Pulley wheel $61.37 1 usually ships 1-5 days
33 174-1297 Threaded adjustment rod $27.87 1 usually ships 1-5 days
34 274-3851 VAC TUBE $55.67 1 usually ships 4-14 days
35 174-1298 Pivot shaft $20.92 1 usually ships 1-5 days
36 174-3248 Pulley $42.27 1 usually ships 4-14 days
37 174-3249 Belt $41.03 1 usually ships 4-14 days
38 174-4545 Vacuum shoe $192.38 1 usually ships 4-14 days
39 174-1300 Brush bracket $209.13 1 usually ships 4-14 days
40 174-1301 Brush $225.15 1 usually ships 4-14 days
41 274-8808 VAC SHOE - CASTING (MACHINED) $328.32 1 usually ships 1-5 days
42 174-1303 Brush cover $93.70 1 usually ships 1-5 days
43 174-1304 Axle $93.73 1 usually ships 4-14 days
44 999-0565 Screw 10 x 3/4 pan head phillips sheet metal $0.99 6 ships same day
