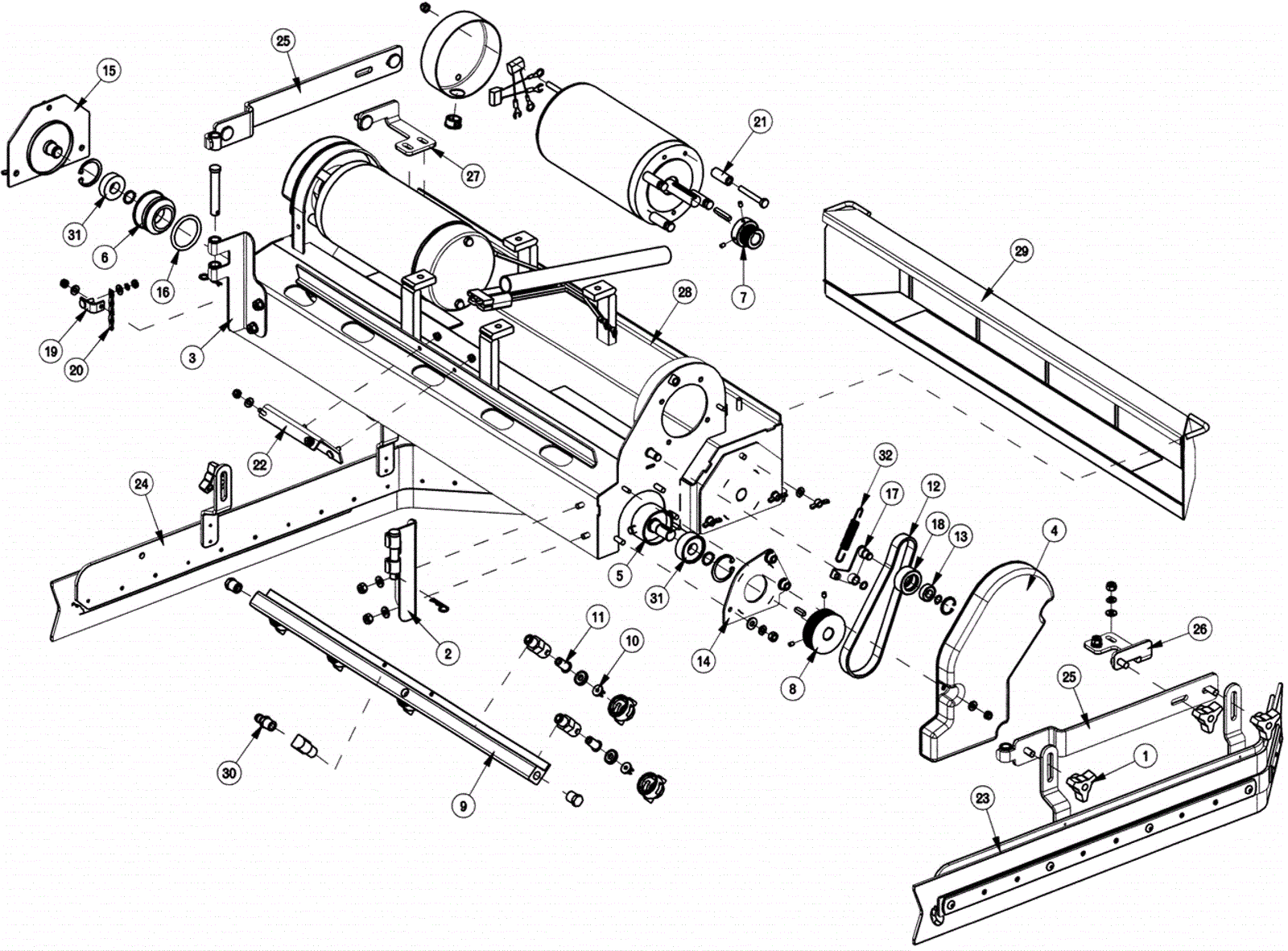

POWERBOSS SCV2832E Cylindrical Scrub Deck Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 174-1220 3 sided knob 5/16 nyloc $4.41 4 usually ships 4-14 days
2 174-8826 Right hinge $100.68 1 usually ships 1-5 days
3 174-8827 Left hinge $63.28 1 usually ships 1-5 days
4 174-6404 Cylindrical scrubdeck belt cover assembly $39.65 2 usually ships 4-14 days
5 174-6466 Cylindrical scrubdeck drive hub $234.23 2 usually ships 4-14 days
6 174-6413 Idle shaft weldment $165.05 2 ships same day
7 174-6406 Offset pulley poly v $47.49 2 usually ships 1-5 days
8 174-6407 Driven pulley $35.82 2 usually ships 4-14 days
9 174-6408 Spray bar $112.77 1 usually ships 4-14 days
10 174-6409 Spray tip $12.63 3 usually ships 4-14 days
11 174-6410 Check valve $17.61 5 usually ships 4-14 days
12 174-6411 18 inch j belt $15.09 2 usually ships 4-14 days
13 174-6467 Radial bearing 3/8 $14.36 2 usually ships 4-14 days
14 174-6466 Cylindrical scrubdeck drive hub $234.23 2 usually ships 4-14 days
15 174-6413 Idle shaft weldment $165.05 2 ships same day
16 174-6415 O ring $1.58 2 usually ships 4-14 days
17 174-6416 Tension arm weldment $91.63 2 usually ships 1-5 days
18 174-6470 Belt idler $31.00 2 usually ships 4-14 days
19 174-6420 Cylindrical scrubdeck drag chain bracket $22.72 1 usually ships 1-5 days
20 174-6421 Cylindrical scrubdeck drag chain $5.35 1 usually ships 1-5 days
21 174-6422 Cylindrical scrub deck motor stand off $6.49 8 usually ships 1-5 days
22 174-6423 Spray head mounting bracket $49.82 1 usually ships 1-5 days
23 174-8525 Left side squeegee wiper assembly $236.93 1 ships same day
24 174-8526 Right side squeegee wiper assembly $216.76 1 usually ships 4-14 days
25 174-8831 Upper squeegee bracket $44.22 2 usually ships 1-5 days
26 174-8832 Left side squeegee support $42.04 1 usually ships 1-5 days
27 174-8833 Right side squeegee support $33.40 1 usually ships 1-5 days
28a 174-6468 28 inch cylindrical scrubdeck weldment $439.29 1 usually ships 1-5 days
28b 274-9302 32 inch CYLINDRICAL SCRUBDECK WELDMENT $620.10 1 usually ships 1-5 days
29a 174-6471 28 inch cylindrical scrubdeck debris box weldment $221.00 1 usually ships 4-14 days
29b 174-6424 32 inch cylindrical scrubdeck debris box weldment $289.13 1 usually ships 4-14 days
30 174-0368 Double barb 3/8 x 1/4 MPF $3.33 1 usually ships 4-14 days
31 174-6425 Radial ball bearing 5/8 $27.54 4 usually ships 4-14 days
32 174-0008 Return spring $2.78 2 usually ships 4-14 days
