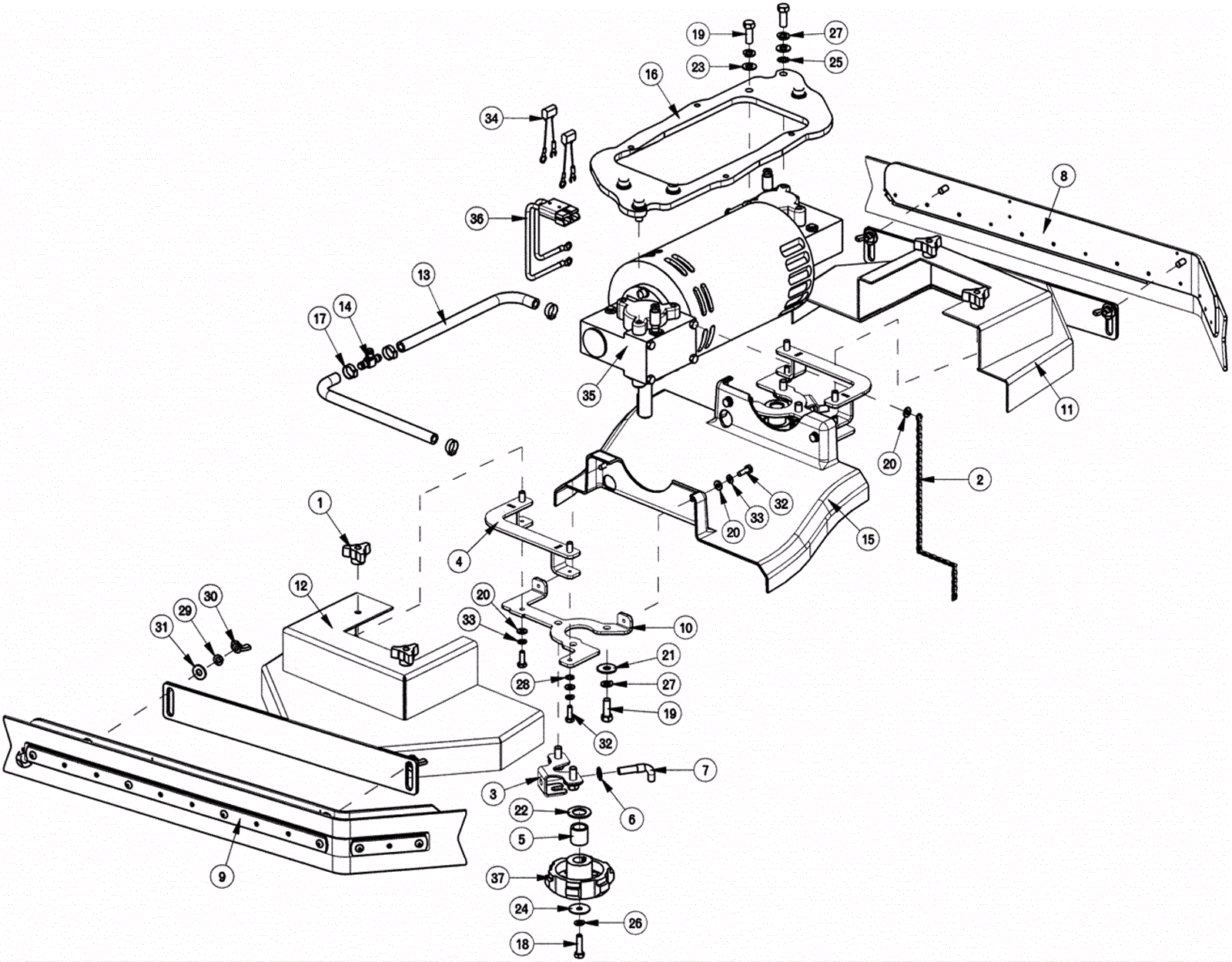

POWERBOSS SCV2832E Disk Scrub Deck Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-1220 3 sided knob 5/16 nyloc $4.41 4 usually ships 4-14 days
2 174-8843 Drag chain assembly $20.55 1 usually ships 1-5 days
3 174-8844 Water feed bracket $13.73 2 usually ships 1-5 days
4 174-8845 Cover mount bracket $43.49 2 usually ships 1-5 days
5 174-6356 Hub-scrub spacer tube $7.99 2 usually ships 4-14 days
6 174-6360 Speed nut 3/8 $0.97 2 usually ships 1-5 days
7 174-6361 Disk solution feed assembly $24.17 2 usually ships 1-5 days
8 174-8159 Side squeegee wipe assembly $172.80 1 usually ships 4-14 days
9 174-8162 Side squeegee $195.02 1 usually ships 4-14 days
10 174-8846 Mounting bracket $31.91 2 usually ships 1-5 days
11a 174-8847 28 inch right hand deck weldment skirt cover $164.46 1 usually ships 1-5 days
11b 274-7827 32 inch left hand deck weldment skirt cover $562.50 1 usually ships 1-5 days
12a 174-8848 28 inch left hand deck weldment skirt cover $158.54 1 usually ships 1-5 days
12b 174-8160 32 inch right hand deck weldment skirt cover $163.31 1 usually ships 1-5 days
13 174-0361 Solution valve hose $11.63 2 usually ships 4-14 days
14 174-0467 3/8 double-barb tee $6.35 1 usually ships 1-5 days
15a 174-8849 28 inch disk deck cover $135.17 1 usually ships 4-14 days
15b 174-6564 32 inch deck cover $106.45 1 usually ships 1-5 days
16a 174-8850 28 inch scrub deck mounting plate $117.60 1 usually ships 1-5 days
16b 274-7526 DISK SCRUBDECK MOUNTING PLATE, 32 inch $142.65 1 usually ships 1-5 days
17 997-2001 Hose clamp $2.42 4 ships same day
18 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 2 ships same day
19 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 12 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 5 ships same day
21 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
22 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
23 999-0120 Washer 3/8 SAE flat $0.99 6 ships same day
24 174-2255 Washer 5/16 x 7/8 x 3/64 flat $0.97 2 usually ships 4-14 days
25 999-0318 Washer 3/8 external star lock zinc plated $0.99 2 ships same day
26 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
27 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
28 174-5227 Washer 1/4 steel plated $0.97 2 usually ships 4-14 days
29 174-8250 Washer helical 5/16 stainless steel $0.86 4 usually ships 1-5 days
30 999-1012 Nut 5/16-18 wing stainless steel $1.98 4 ships same day
31 999-1363 Washer 7/8 flat stainless steel $3.48 4 ships same day
32 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
33 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
34 174-6372 Fork capacitor $15.00 2 usually ships 4-14 days
35a 174-6403 28 inch dual right angle drive $1,855.25 1 usually ships 4-14 days
35b 174-6369 32 inch dual right angle motor $1,834.29 1 usually ships 1-5 days
36 174-6370 Brush deck disk wire assembly $42.21 1 usually ships 1-5 days
37 174-6371 Hub-scrub brush drive $150.32 2 usually ships 4-14 days
