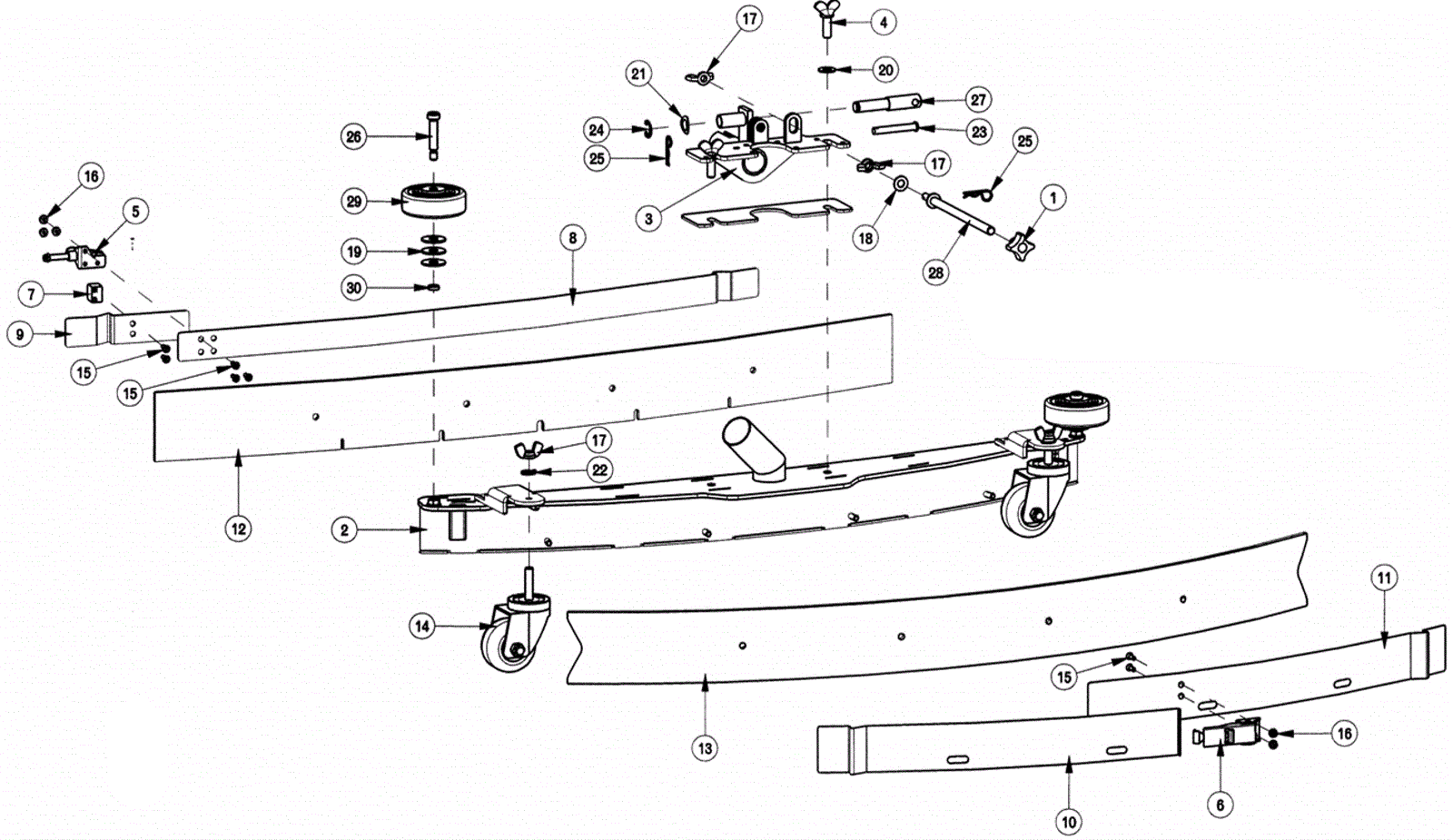

POWERBOSS SCV2832E Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 274-2516 KNOB, 3/8 inch-16 FOUR PRONG $12.28 1 (32 inch) usually ships 1-5 days
2a 274-8738 SQUEEGEE WMT ASSY, 32 inch $430.76 1 (32 inch) usually ships 4-14 days
2b 174-8821 Squeegee weldment assembly $481.03 1 (28 inch) usually ships 4-14 days
3 174-3567 Rear squeegee mount plate weldment $195.46 1 (32 inch) usually ships 4-14 days
4 174-9612 Bolt 3/8-16 x 1 wing $6.37 2 usually ships 1-5 days
5 174-3250 Front squeegee latch $47.42 1 usually ships 4-14 days
6 174-1151 Rear squeegee latch $50.71 1 usually ships 4-14 days
7 174-3251 Stop bar $22.62 1 usually ships 4-14 days
8a 174-7033 Front clamp strap $36.36 1 (32 inch) usually ships 4-14 days
8b 174-7034 Front clamp strap $109.23 1 (28 inch) usually ships 4-14 days
9a 174-7032 Front stop strap $36.00 1 (32 inch) usually ships 4-14 days
9b 174-7030 Front stop strap $31.25 1 (28 inch) usually ships 4-14 days
10a 274-5922 STRAP - REAR CATCH, 32 inch $58.36 1 (32 inch) usually ships 1-5 days
10b 174-7064 Rear squeegee strap with catch $67.64 1 (28 inch) usually ships 4-14 days
11a 274-6205 STRAP - REAR LATCH, 32 inch $62.15 1 (32 inch) usually ships 1-5 days
11b 174-7065 Rear squeegee strap with latch $80.72 1 (28 inch) usually ships 4-14 days
12a 174-8084 Squeegee blade front gum rubber 32 inch $29.35 1 (32 inch) usually ships 4-14 days
12b 174-8523 Squeegee blade front gum rubber $21.74 1 (28 inch) usually ships 4-14 days
13a 174-8085 Squeegee blade rear gum rubber 32 inch $35.22 1 (32 inch) usually ships 4-14 days
13b 174-8524 Squeegee blade rear gum rubber $28.29 1 (28 inch) usually ships 4-14 days
14 174-5336 Caster wheel $37.11 2 usually ships 4-14 days
15 174-2271 Screw 8-32 x 1/2 $0.99 7 usually ships 4-14 days
16 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 5 ships same day
17 174-3262 Nut 3/8-16 wing steel plated $1.90 4 (qty 2 for 28 inch) usually ships 4-14 days
18 999-0024 Washer 5/16 flat stainless steel $1.34 2 (32 inch) ships same day
19 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
20 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
21 174-5159 Washer 33/64 x 1/64 wave $0.99 1 (32 inch) usually ships 4-14 days
22 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
23 174-0203 Clevis pin $2.16 1 (32 inch) usually ships 1-5 days
24 174-0178 1/2 inch external retaining ring $0.99 1 (32 inch) usually ships 4-14 days
25 174-0201 Cotter pin $1.20 2 (32 inch) usually ships 4-14 days
26 999-1367 Bolt 3/8 x 1 1/2 x 5/16-18 socket head shoulder SS $16.12 2 ships same day
27 174-8824 Threaded adjusting pin $33.01 1 (32 inch) usually ships 1-5 days
28 174-8825 Threaded rod $23.95 1 (32 inch) usually ships 1-5 days
29 174-0268 Guide wheel $18.10 2 usually ships 4-14 days
30 174-0262 Spacer $7.63 2 usually ships 4-14 days
N/S 174-8260 Washer .25 ID x .75 OD nylon $0.97 4 (28 inch) usually ships 1-5 days
N/S 174-5947 Screw 1/4-20 x 1 hex nylon $1.20 2 (28 inch) usually ships 4-14 days
N/S 174-5948 Nut 1/4-20 wing nylon $1.20 2 (28 inch) usually ships 4-14 days
