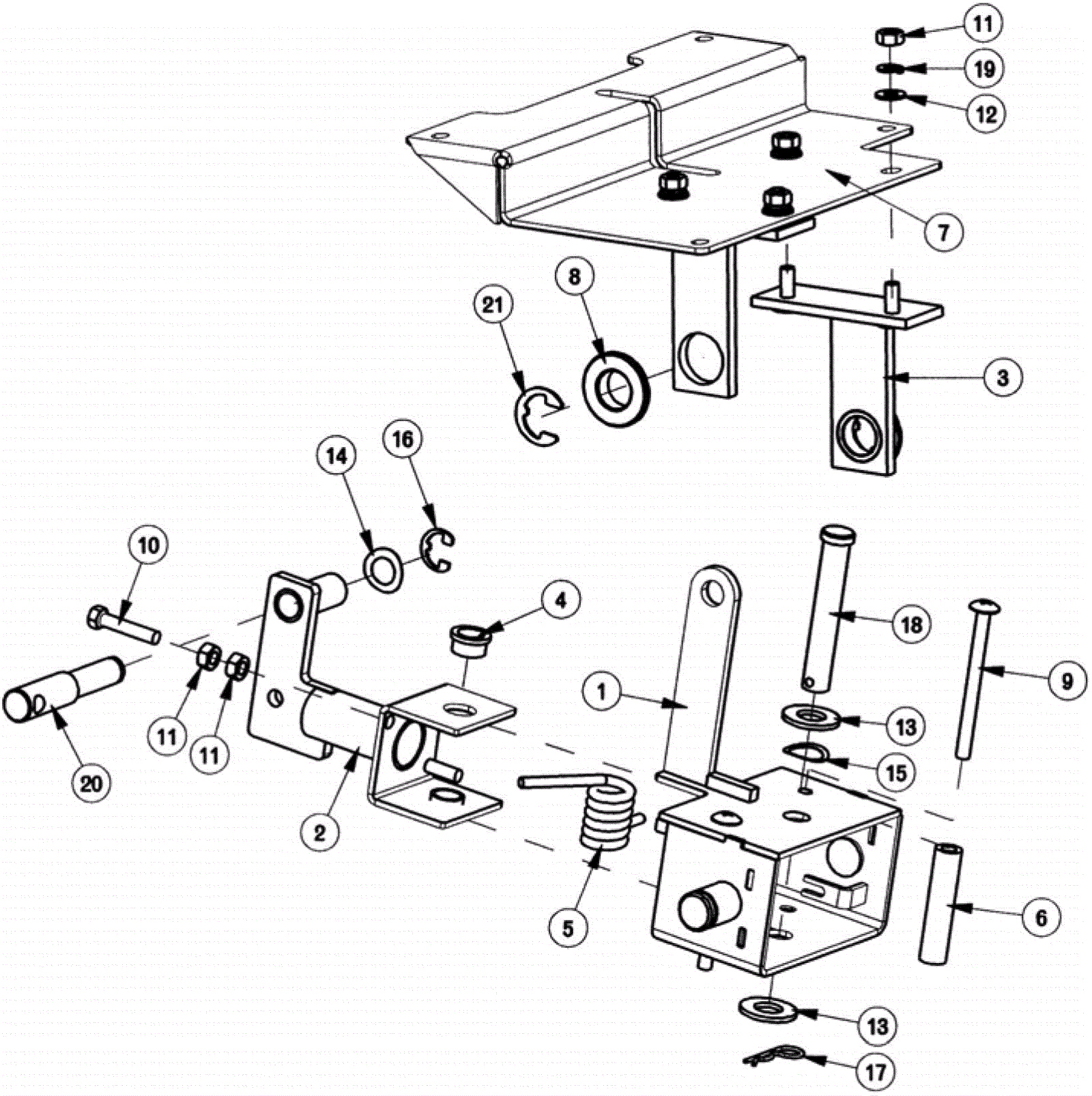

POWERBOSS SCV2832E Squeegee Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8815 Squeegee yoke bracket assembly $227.75 1 usually ships 1-5 days
2 174-8816 Rear squeegee yoke $90.66 1 usually ships 1-5 days
3 274-3682 BRACKET ASSY-SQUEEGEE MECH ATTACHMENT $58.75 2 usually ships 1-5 days
4 174-0120 Bushing $2.63 2 usually ships 4-14 days
5 174-9025 Torsion spring $9.31 1 usually ships 1-5 days
6 174-8818 Mechanism stop tube $5.52 2 usually ships 1-5 days
7 174-8819 Squeegee attachment plate $58.32 1 usually ships 1-5 days
8 174-5950 Oilite flanged bearing $3.61 2 usually ships 1-5 days
9 999-0621 Screw 1/4-20 x 3 truss head slotted stainless steel $5.79 2 ships same day
10 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
11 999-0609 Nut 1/4-20 hex stainless steel $0.99 8 ships same day
12 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
13 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
14 174-5159 Washer 33/64 x 1/64 wave $0.99 1 usually ships 4-14 days
15 174-5229 Washer 5/8 .65 x .86 x .01 wave $0.97 1 usually ships 1-5 days
16 174-0178 1/2 inch external retaining ring $0.99 1 usually ships 4-14 days
17 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
18 174-9027 Clevis pin $3.53 1 usually ships 1-5 days
19 999-0632 Washer 1/4 split lock stainless steel $0.99 4 ships same day
20 174-8820 Adjusting pin $35.19 1 usually ships 1-5 days
21 174-5728 Retaining ring $1.06 2 usually ships 4-14 days
