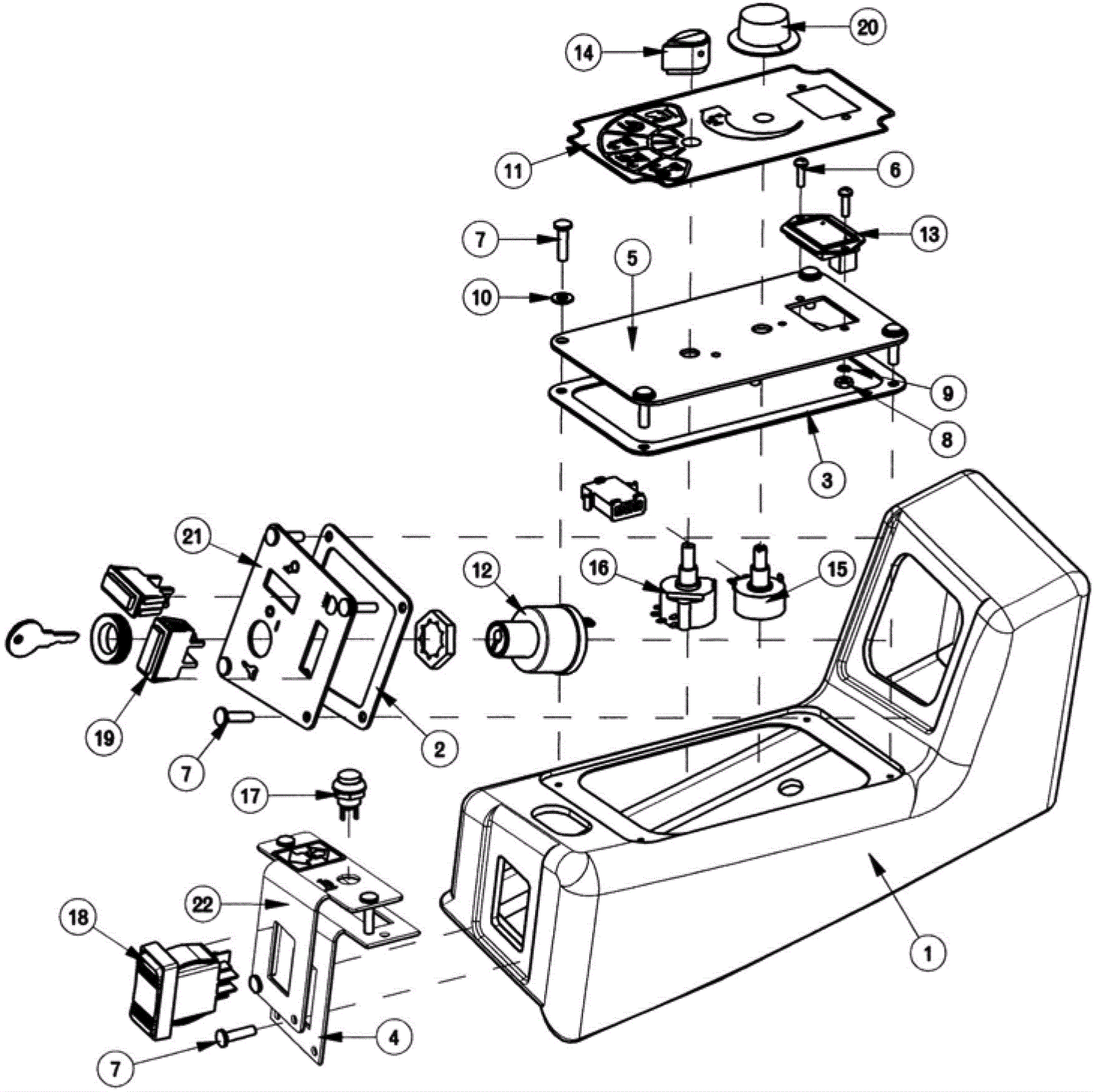

POWERBOSS SCV2832E Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8749 Console $133.96 1 usually ships 1-5 days
2 174-8772 Gasket $4.46 1 usually ships 1-5 days
3 174-8773 Gasket $4.81 1 usually ships 1-5 days
4 174-8774 Gasket $4.73 1 usually ships 1-5 days
5 174-8775 Switch bracket $17.27 1 usually ships 1-5 days
6 999-0382 Screw 6-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
7 174-2289 Screw 10 x 5/8 hi/lo $1.90 12 usually ships 4-14 days
8 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
9 174-6331 Washer #6 helical steel plated $0.97 2 usually ships 1-5 days
10 174-0532 Washer 7/32 x 3/64 nylon $0.97 4 usually ships 4-14 days
11 174-8776 Controls label $12.87 1 usually ships 1-5 days
12 174-8086 2 pole key switch $86.33 1 usually ships 4-14 days
13 174-6332 True charge 36v battery gauge assembly $72.89 1 usually ships 4-14 days
14 174-6333 Knob-mode selector $16.94 1 usually ships 1-5 days
15 174-6334 Water low potentiometer assembly $51.53 1 usually ships 1-5 days
16 174-6336 Mode selector switch assembly $118.45 1 usually ships 4-14 days
17 174-8777 Horn switch $35.26 1 usually ships 1-5 days
18 174-8778 Forward/reverse switch $32.05 1 usually ships 4-14 days
19 174-8779 Blank switch $3.33 2 usually ships 1-5 days
20 174-0259 Knob $7.99 1 usually ships 4-14 days
21 174-8780 Ignition switch panel Call for price 1 usually ships 1-5 days
22 174-8781 Direction control panel $21.84 1 usually ships 1-5 days
