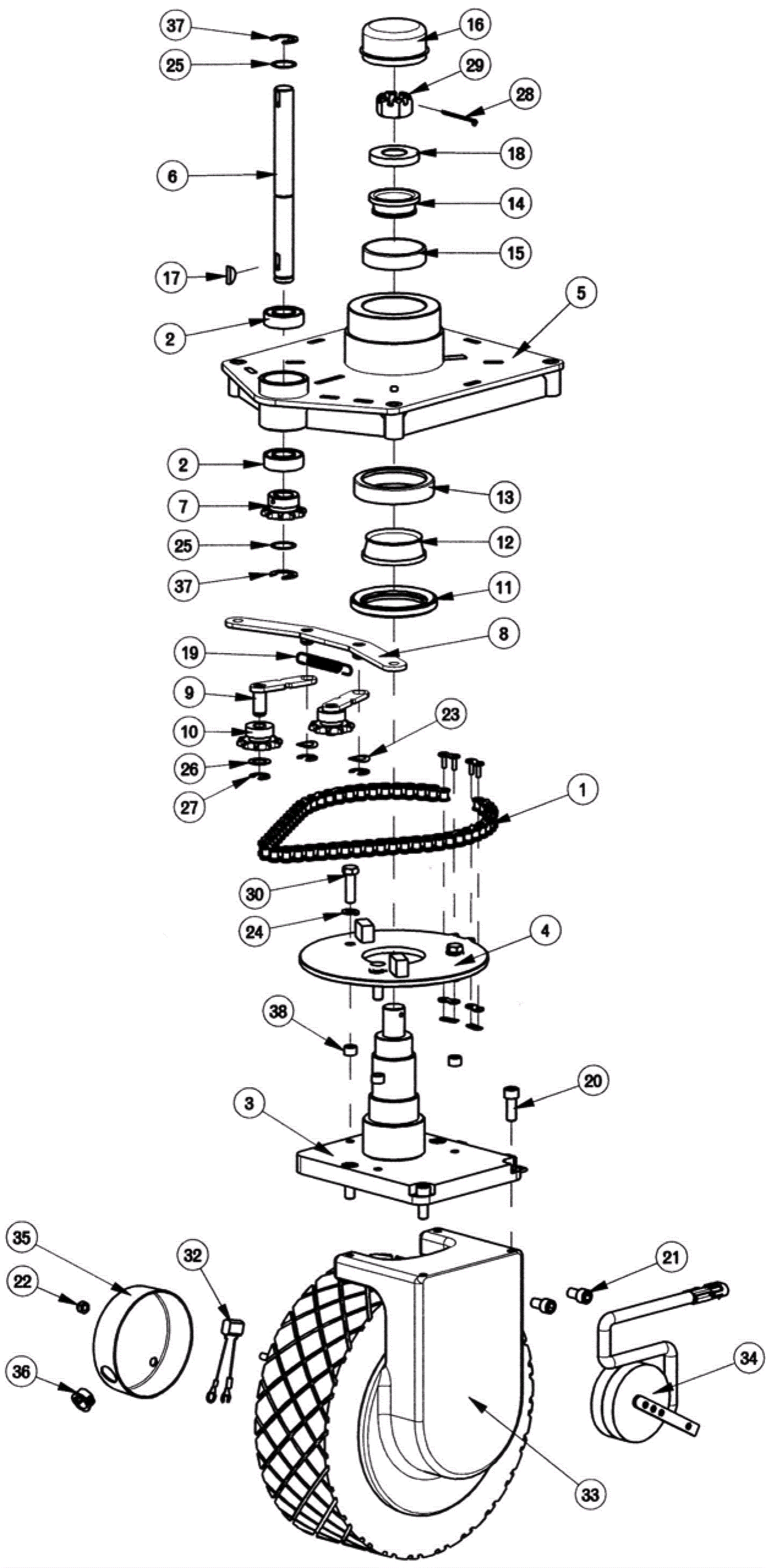

POWERBOSS SCV2832E Front Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8723 27 1/2 inch steering chain $49.26 1 usually ships 1-5 days
2 174-8724 Bearing $31.83 2 usually ships 1-5 days
3 174-8725 Spindle weldment Call for price 1 usually ships 1-5 days
4 174-8726 Steering disc weldment $65.48 1 usually ships 1-5 days
5 174-8727 Front drive mount weldment $393.30 1 usually ships 1-5 days
6 174-8728 Steering sprocket shaft $34.61 1 usually ships 1-5 days
7 174-8729 10 toothed sprocket $19.38 1 usually ships 1-5 days
8 174-8730 Front drive idler base weldment $27.83 1 usually ships 1-5 days
9 174-8731 Front drive idler arm weldment $32.70 2 usually ships 1-5 days
10 174-8732 10 toothed idler sprocket $28.12 2 usually ships 1-5 days
11 174-2609 Lip seal $16.27 1 usually ships 1-5 days
12 174-2608 Roller bearing $26.97 1 usually ships 1-5 days
13 174-2607 Race $11.03 1 usually ships 1-5 days
14 174-2567 Roller bearing $22.00 1 usually ships 1-5 days
15 174-2612 Race $12.03 1 usually ships 1-5 days
16 174-2564 Grease cap $12.02 1 usually ships 1-5 days
17 174-2748 Woodruff key 3/16 x 3/4 $1.10 1 ships same day
18 174-2566 Front drive spacer $29.04 1 usually ships 1-5 days
19 174-0008 Return spring $2.78 1 usually ships 4-14 days
20 174-8867 Screw 3/8-16 x 1 $0.95 4 usually ships 1-5 days
21 174-8868 Screw 3/8-24 x 5/8 steel plated $0.97 2 usually ships 4-14 days
22 999-0429 Nut 1/4-20 acorn nickel plated $0.99 2 ships same day
23 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
24 999-0034 Washer 3/8 split lock plain finish $1.82 3 ships same day
25 999-9114 Washer 3/4 flat stainless steel $1.58 2 ships same day
26 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
27 174-0178 1/2 inch external retaining ring $0.99 4 usually ships 4-14 days
28 174-5907 Cotter hair pin $1.20 1 usually ships 1-5 days
29 174-2565 Slotted nut $4.96 1 usually ships 1-5 days
30 174-1378 Bolt 3/8-16 x 1 1/4 hex head #5 $0.97 3 usually ships 1-5 days
32 174-6372 Fork capacitor $15.00 2 usually ships 4-14 days
33 174-8677 Front drive assembly (OBSOLETE) Call for price 1 usually ships 4-14 days
34 174-8734 Brake assembly $565.41 1 usually ships 1-5 days
35 174-8735 Drive motor cover $39.29 1 usually ships 1-5 days
36 174-6435 Heyco bushing $1.27 1 usually ships 1-5 days
37 174-5728 Retaining ring $1.06 2 usually ships 4-14 days
38 174-0103 Spacer $9.31 3 usually ships 1-5 days
N/S 174-3182 Wire tie small $1.20 5 usually ships 1-5 days
