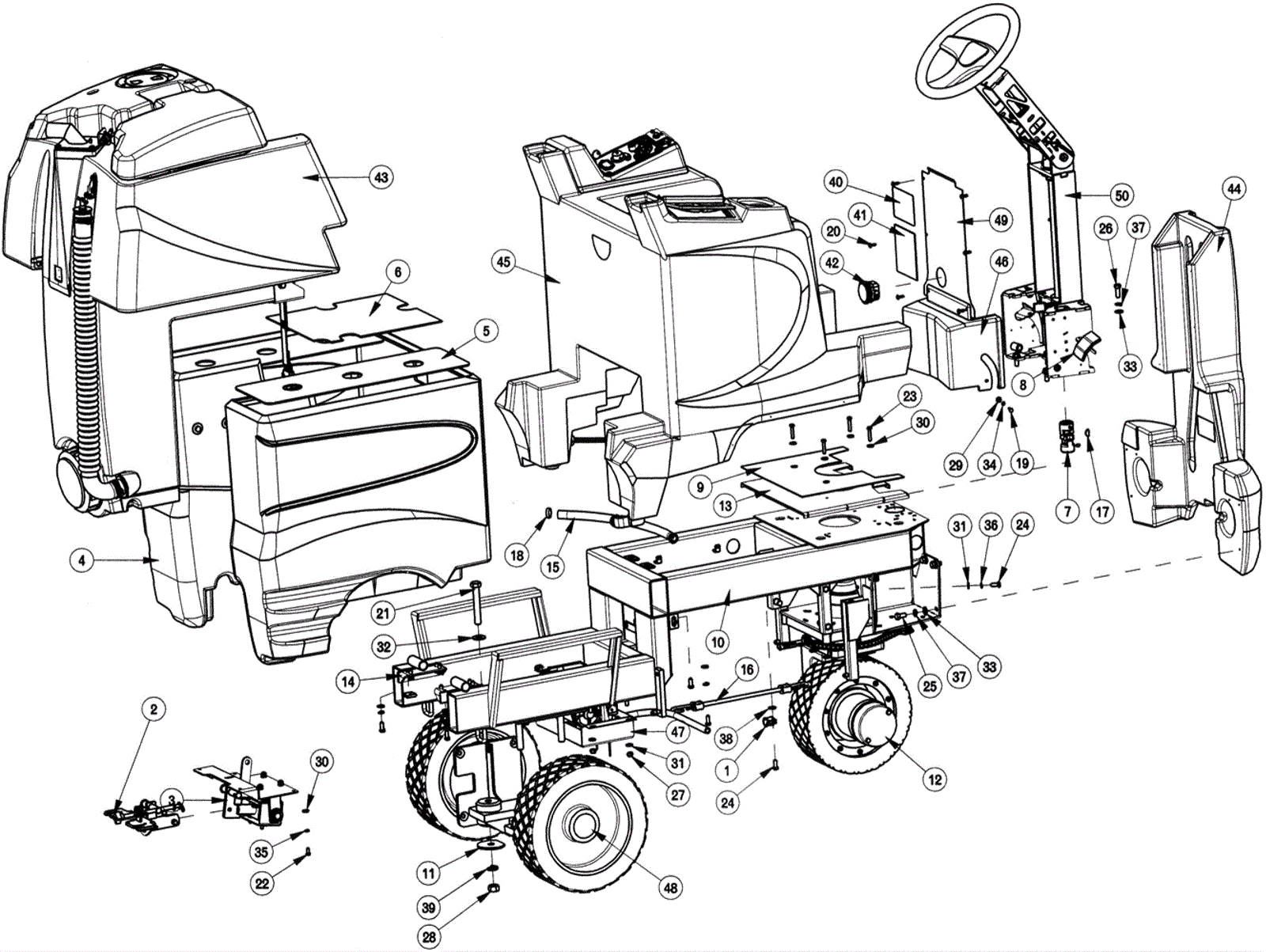

POWERBOSS SCV2832E Main Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 174-1531 Clamp $4.64 1 usually ships 1-5 days
2 174-8154 Rear squeegee assembly top Call for price 1 usually ships 1-5 days
4 174-8672 Battery tray assembly $368.59 1 usually ships 1-5 days
5 174-8690 Side battery cover $3.02 2 usually ships 1-5 days
6 174-8691 Center battery cover Call for price 1 usually ships 1-5 days
7 174-8090 Coupling $50.99 1 usually ships 1-5 days
8 174-8692 Antiskid pedal $5.24 1 usually ships 1-5 days
9 174-8693 Antiskid floor $47.20 1 usually ships 1-5 days
10 174-8694 Mainframe weldment Call for price 1 usually ships 1-5 days
11 174-8695 Snubbing washer $6.37 4 usually ships 1-5 days
12 174-8677 Front drive assembly (OBSOLETE) Call for price 1 usually ships 4-14 days
13 174-8696 Floor panel weldment $488.56 1 usually ships 1-5 days
14 174-8697 Fixed slider weldment $42.98 2 usually ships 1-5 days
15 174-7035 Equalizing tube $4.26 1 usually ships 1-5 days
16 174-8698 16 inch bungee cord $4.08 1 usually ships 1-5 days
17 174-2748 Woodruff key 3/16 x 3/4 $1.10 2 ships same day
18 174-8254 Hose clamp $1.24 2 ships same day
19 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 1 ships same day
20 174-5991 Screw #10 x 5/8 plated hi/low $0.99 6 usually ships 4-14 days
21 174-8865 Bolt 5/8-11 x 4 hex head grade 5 $2.96 4 usually ships 1-5 days
22 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
23 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
24 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 17 usually ships 1-5 days
25 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 6 ships same day
26 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 6 ships same day
27 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
28 174-8866 Nut 5/8 x 11 hex $0.97 4 usually ships 1-5 days
29 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
30 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
31 999-0024 Washer 5/16 flat stainless steel $1.34 20 ships same day
32 999-0349 Washer 5/8 SAE flat $0.99 4 ships same day
33 999-0120 Washer 3/8 SAE flat $0.99 12 ships same day
34 999-0311 Washer #10 external star lock zinc plated $0.99 1 ships same day
35 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
36 999-0028 Washer 5/16 split lock plain finish $0.99 16 ships same day
37 999-0034 Washer 3/8 split lock plain finish $1.82 12 ships same day
38 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
39 174-8872 Washer helical $0.97 4 usually ships 1-5 days
40 174-8699 Tank latch warning label $5.78 1 usually ships 1-5 days
41 174-8700 Diagnostics codes label $5.46 1 usually ships 1-5 days
42 174-6297 Hour meter $22.52 1 ships same day
43 174-8683 Recovery tank lid assembly $1,367.83 1 usually ships 1-5 days
44 174-8701 Front bumper assembly $70.72 1 usually ships 1-5 days
45 174-8684 Solution tank assembly Call for price 1 usually ships 1-5 days
46 174-8702 Bottom steering column cover $66.67 1 usually ships 1-5 days
47 174-8703 Pump assembly $650.35 1 usually ships 1-5 days
48 174-8685 Rear axle assembly $1,622.20 1 usually ships 1-5 days
49 174-8704 Top steering column rear cover $36.20 1 usually ships 1-5 days
50 174-8686 Steering assembly $1,772.20 1 usually ships 1-5 days
N/S 174-8153 Rear squeegee mechanism assembly $631.60 1 usually ships 1-5 days
