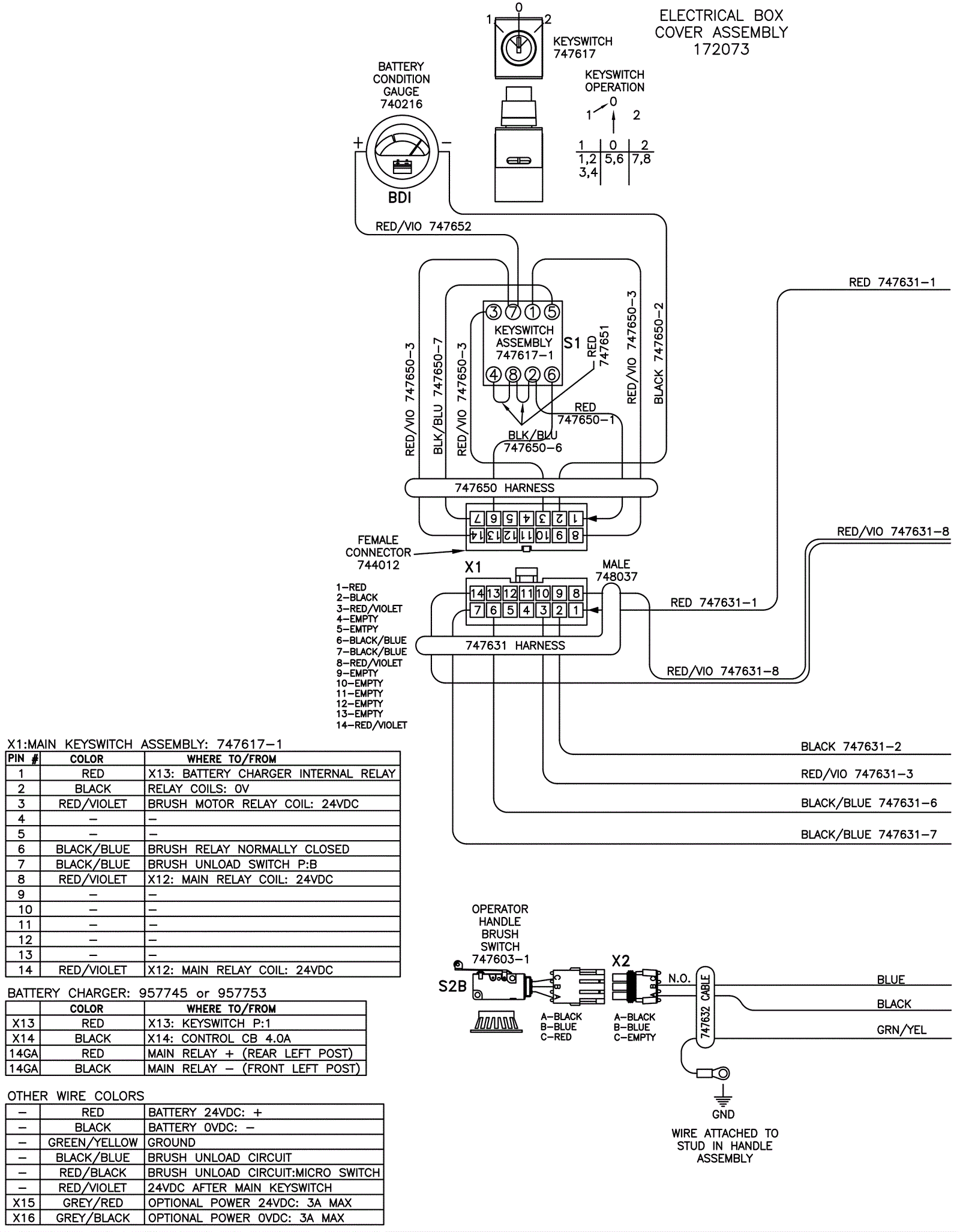

| # | Part | Description |
Req | Notes | Availability |
|---|
M1 |
174-7194
|
Water pump |
1 |
(optional) |
|
M2 |
174-7195
|
Brush motor |
1 |
|
|
M3b |
174-3719
|
24V vacuum motor assembly |
1 |
(H20 only) |
|
K1 |
174-8373
|
24V main relay 2 pole 125 amp |
1 |
|
|
K2 |
174-8375
|
24V brush motor relay 2 pole 80 amp |
1 |
|
|
K3 |
174-8389
|
24V vacuum motor relay 1 pole 80 amp |
1 |
|
|
CB1 |
174-8165
|
Circuit breaker 4.0 amp (push button) |
1 |
|
|
CB2a |
274-1163
|
30amp circuit breaker |
1 |
|
|
CB2b |
991-1629
|
35amp circuit breaker |
1 |
(NON-OEM) |
|
CB3 |
174-5059
|
Circuit breaker 20 amp (push button) |
1 |
|
|
S1 |
274-7156
|
KEYSWITCH, START-OFF-ON (E1720) |
1 |
|
|
S2a |
174-8264
|
Switch assembly (with pack conduit) |
1 |
(motor) |
|
S2b |
174-7198
|
Switch |
1 |
(handle) |
|
S3 |
174-7199
|
Switch |
1 |
|
|
S6 |
174-7199
|
Switch |
1 |
|
|
S7 |
174-8264
|
Switch assembly (with pack conduit) |
1 |
(optional) |
|
S8 |
174-7192
|
Toggle on/off switch assembly |
1 |
(optional) |
|
CSI |
174-8299
|
Charge status indicator |
1 |
|
|
HM |
174-8383
|
Hour meter 24-277VDC/AC snap in |
1 |
(optional) |
|
BCa |
174-7175
|
24V onboard battery charger (OBSOLETE) |
1 |
|
|
BCb |
174-3717
|
230V charger assembly |
1 |
|
|
G1a |
162-0011
|
12V 105Ah wet battery (SNSR) |
2 |
|
|
N1 |
174-3720
|
Brush motor ferrite |
1 |
|
|
N2 |
174-8400
|
Snap it ferrite bead |
1 |
|
|
D1 |
N/A
|
Not available |
1 |
(main relay diode) (included with K1) |
|
D2 |
174-0230
|
Diode assembly |
1 |
|
|
D3 |
174-0230
|
Diode assembly |
1 |
|
|
D4 |
174-0230
|
Diode assembly |
1 |
(optional) |
|
X13b |
374-2443
|
QC-MALE 18-22G .250 FULL INS (STRIP) |
|
(male) |
|
X16a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
|
(female) |
|
X17a |
374-1699
|
QC-FEMALE 18-22G .250 FULL INSULATED |
|
(female) |
|
X17b |
374-1714
|
QC-MALE 10-12G .250 FULL INSULATED |
|
(male) |
|
