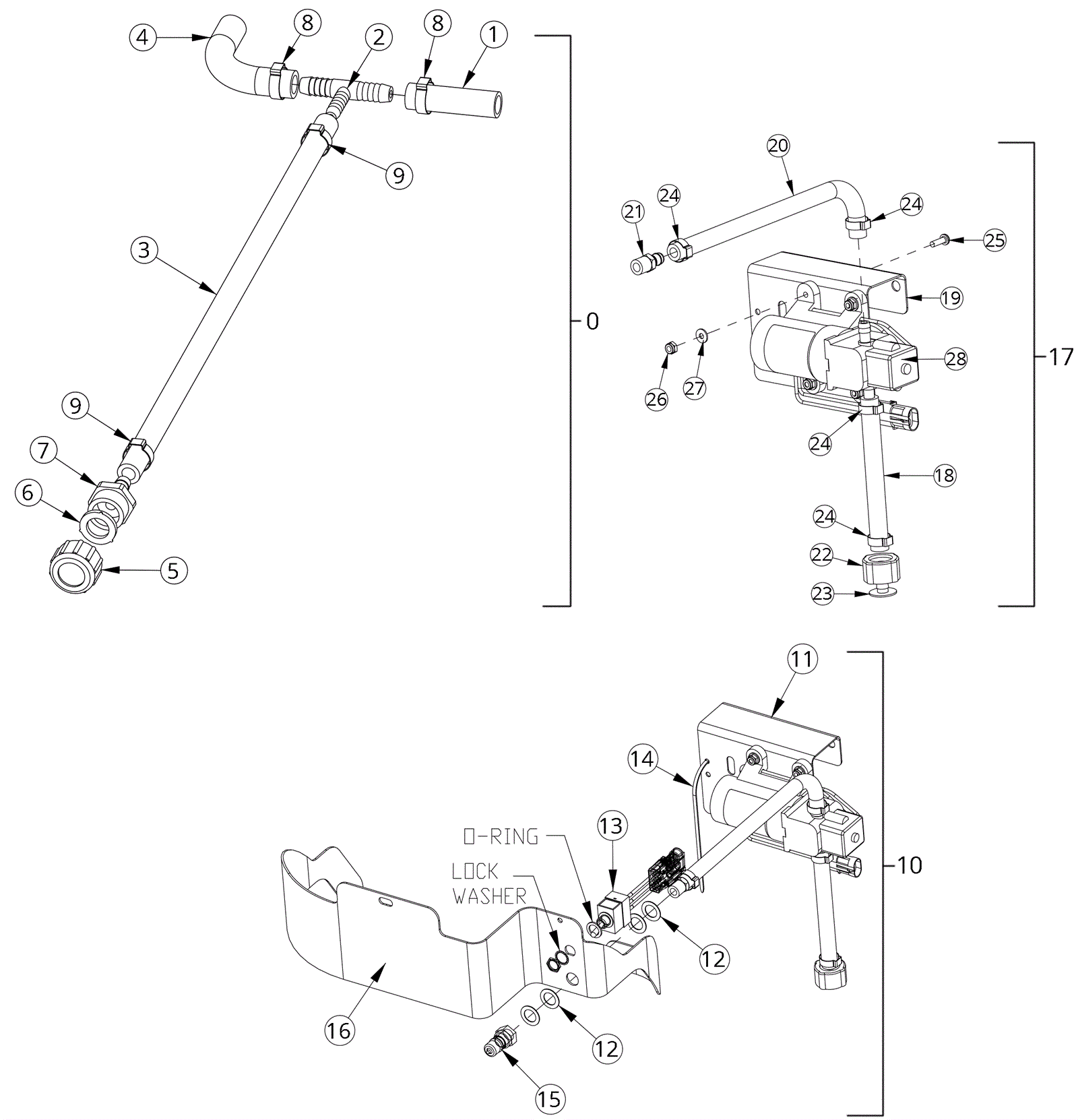

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
274-6726
|
PARTS FOR FC MODELS, BD/TD-E1720 |
1 |
(includes 1-9) |
|
1 |
174-7187
|
Nylon reinforced hose 1/2 x 2 1/2 inch |
1 |
|
|
2 |
174-7188
|
Tee fitting |
1 |
|
|
3 |
174-7189
|
Wire reinforced hose 3/8 x 18 inch |
1 |
|
|
4 |
991-1405
|
Vinyl tubing 1/2 x 3/4 (sold by the inch) |
6 inch |
|
|
5 |
174-5890
|
Garden hose cap |
1 |
|
|
6 |
174-5898
|
Washer black vinyl |
1 |
|
|
7 |
374-2225
|
3/8 inch fitting |
1 |
|
|
8 |
174-8254
|
Hose clamp |
2 |
|
|
9 |
997-2001
|
Hose clamp |
2 |
|
|
10 |
274-8561
|
KIT, BULLDOG-20 PUMP, OFF AISLE WAND |
1 |
(includes 11-16) |
|
11 |
174-7191
|
OAW pump assembly |
1 |
|
|
12 |
999-0855
|
Washer 9/16 SAE flat |
4 |
|
|
13 |
174-7192
|
Toggle on/off switch assembly |
1 |
|
|
14 |
997-2102
|
Cable tie |
4 |
|
|
15 |
174-0218
|
Male quick coupler |
1 |
|
|
16 |
174-7153
|
Front panel |
1 |
|
|
17 |
174-7191
|
OAW pump assembly |
1 |
(includes 18-28) |
|
18 |
374-2299
|
Wiire reinforced hose 3/8 X 5.5 inch |
1 |
|
|
19 |
174-7193
|
Pump bracket assembly |
1 |
|
|
20 |
174-0361
|
Solution valve hose |
1 |
|
|
21 |
174-0368
|
Double barb 3/8 x 1/4 MPF |
1 |
|
|
22 |
374-2226
|
Fitting |
1 |
|
|
23 |
374-2227
|
Fitting |
1 |
|
|
24 |
997-2001
|
Hose clamp |
4 |
|
|
25 |
999-0726
|
Screw 10-32 x 5/8 pan head phillips zinc plated |
4 |
|
|
26 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
4 |
|
|
27 |
999-0998
|
Washer #10 flat stainless steel |
4 |
|
|
28 |
274-7416
|
24v pump |
1 |
|
|
N/S |
374-2228
|
Mesh screen filter |
1 |
(included with 10) |
|
N/S |
174-5804
|
Bolt 5/16 x 3/4 shoulder |
1 |
(included with 10) |
|
