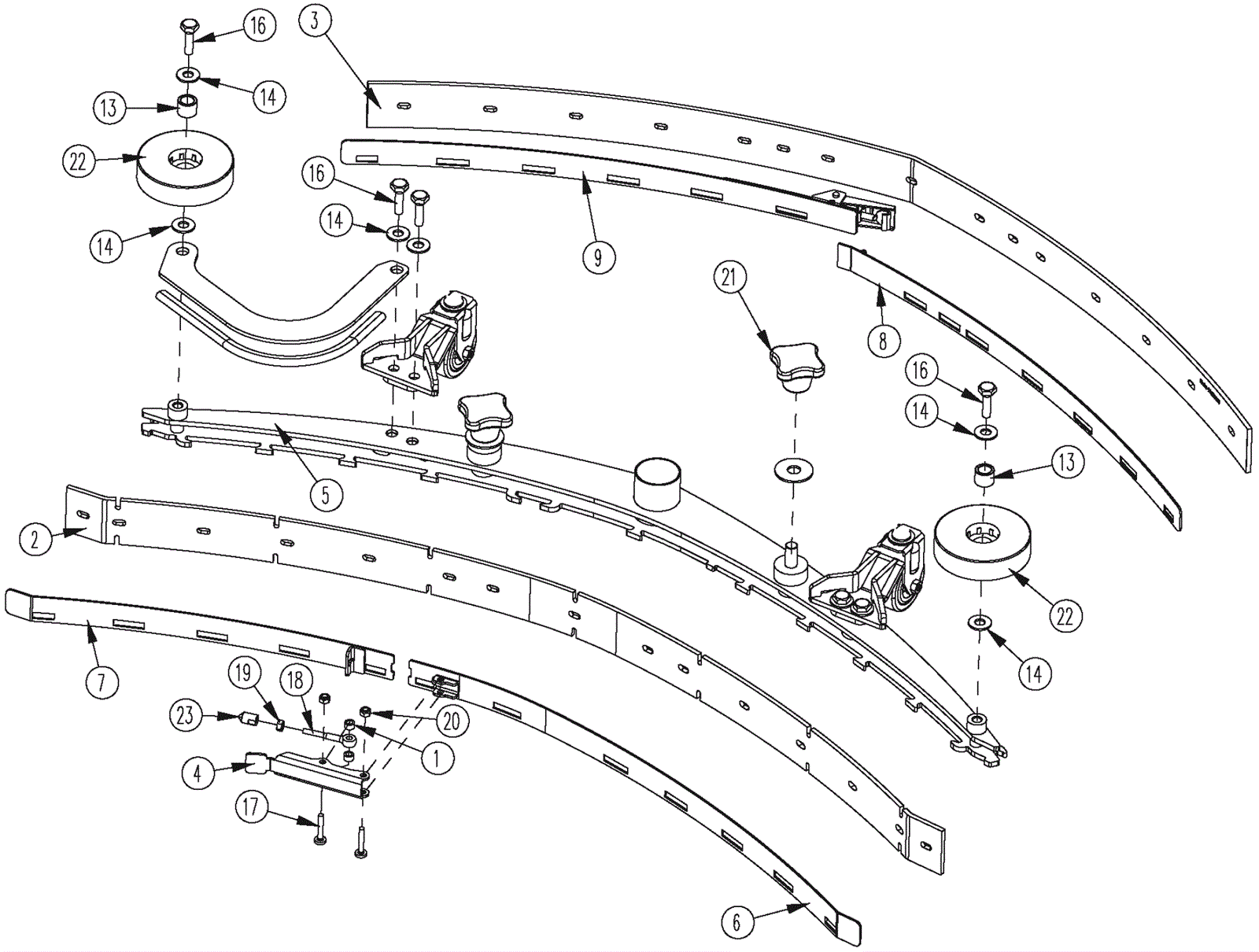

BD20 Rear Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8277 Spacer $2.37 2 usually ships 4-14 days
2 174-9615 Squeegee blade 34 inch urethane front $44.22 1 usually ships 4-14 days
3 174-9616 Squeegee blade 34 inch urethane rear $46.03 1 ships same day
4 174-8327 Lever $12.83 1 usually ships 4-14 days
5 174-8329 34 inch squeegee weldment $329.06 1 ships same day
6 174-8330 Front left strap weldment $35.77 1 ships same day
7 174-8332 Front right strap weldment $22.35 1 ships same day
8 174-8333 Rear left strap weldment $21.86 1 ships same day
9 174-8334 Rear right strap weldment $59.29 1 usually ships 4-14 days
13 174-8328 Bushing $5.51 2 usually ships 4-14 days
14 174-8251 Washer flat stainless steel $0.86 8 ships same day
16 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 6 ships same day
17 999-1425 Screw M5-.8 x 25mm pan head stainless steel $1.01 2 ships same day
18 174-8338 Bolt M5 x 40mm eye stainless steel $17.42 1 usually ships 4-14 days
19 999-0740 Nut M5-.8 hex stainless steel $0.99 1 ships same day
20 999-0495 Nut M5-.8 nylon insert lock zinc plated $0.99 2 ships same day
21 174-8339 Star knob $2.38 2 ships same day
22 174-8340 Guide wheel $5.86 2 usually ships 4-14 days
23 174-8341 Pressure pin $9.48 1 usually ships 4-14 days
N/S 174-8933 Fixed caster $9.94 2 ships same day
N/S 174-8336 34 inch squeegee bumper $17.98 1 usually ships 4-14 days
N/S 174-8326 Edge trim black 5/16 x 10 inch $15.17 1 ships same day
N/S 174-7186 Washer 10 1/2 x 30 x 2 1/2 flat stainless steel $0.75 2 ships same day
