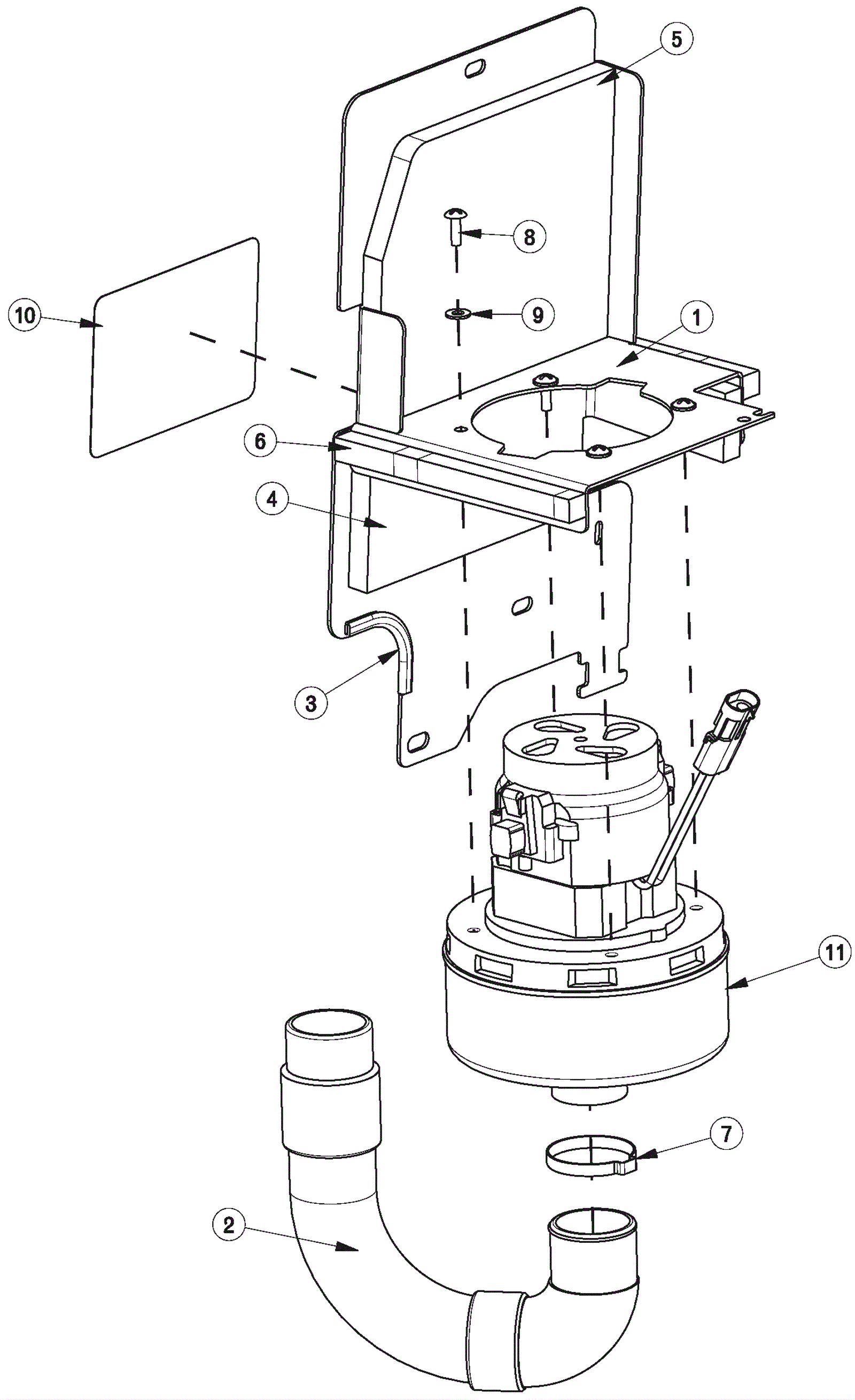

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
174-8300
|
Vac mount weldment |
1 |
|
|
2 |
174-8301
|
13 inch stretch hose |
1 |
|
|
3 |
174-8302
|
Edge trim .063 x 3.0 black |
1 |
|
|
4 |
174-8303
|
Foam cover (front) |
1 |
|
|
5 |
174-8222
|
1/2 inch foam cover |
1 |
|
|
6 |
174-8288
|
Foam tape 1/2 x 16 1/2 inch |
2 |
|
|
7 |
174-8304
|
1 3/4 inch crimp clamp |
1 |
|
|
8 |
174-5991
|
Screw #10 x 5/8 plated hi/low |
4 |
|
|
9 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
10 |
174-8305
|
Battery cable route decal |
1 |
|
|
11 |
174-9035
|
24V 2 stage vacuum motor assembly peripherial discharge byps |
1 |
|
|
