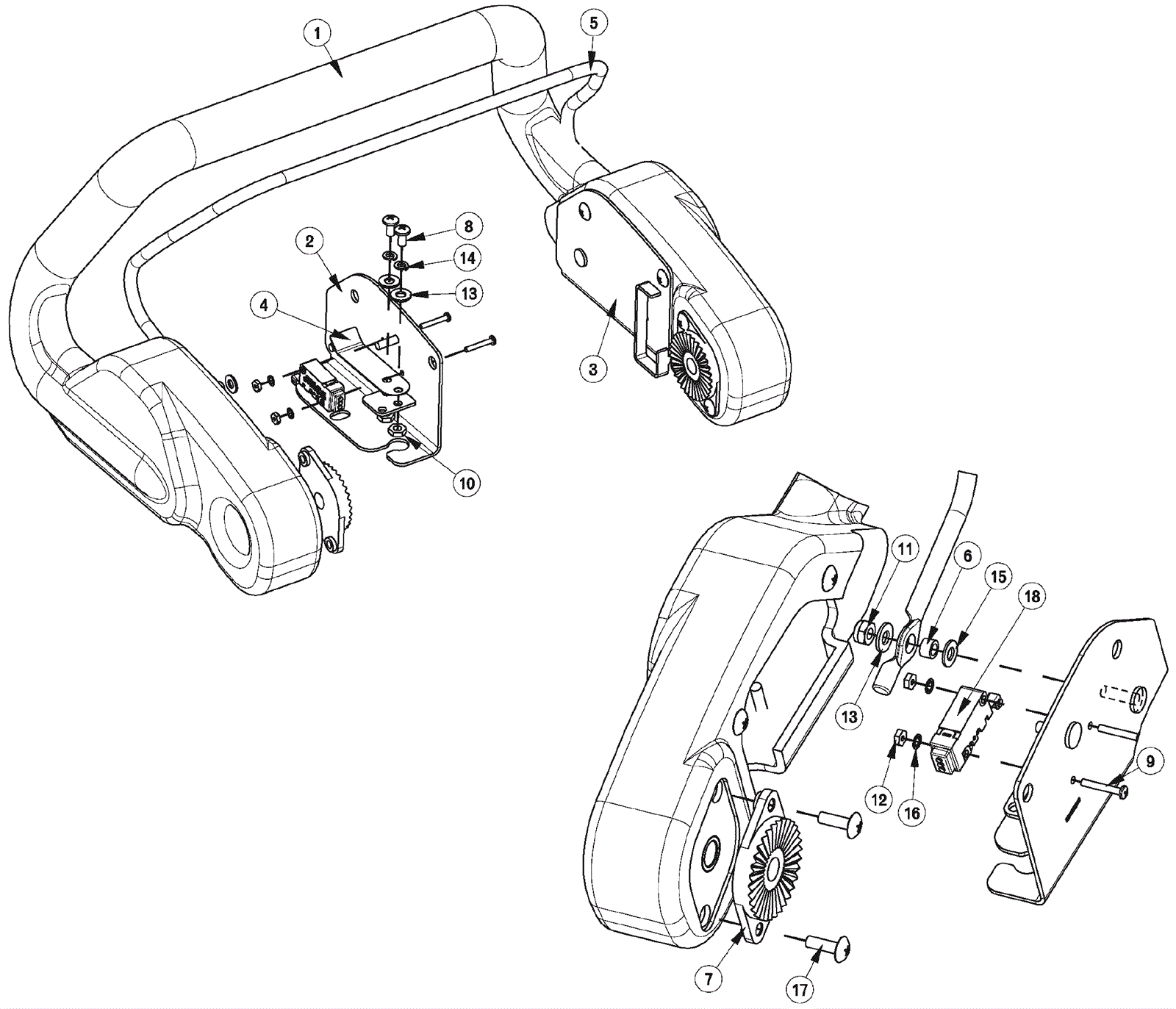

Handle Assembly

#PartDescription ReqNotesAvailability
1 174-8272 Handle 1
2 174-8273 Right hand bail plate weldment 1
3 174-8274 Left hand bail plate weldment 1
4 174-8275 Leaf spring 2
5 174-8276 Bail handle 1
6 174-8277 Spacer 2
7 174-8278 Handle pivot jaw 2
8 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated 4
9 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated 2
10 999-0460 Nut 10-32 hex 4
11 999-0086 Nut 10-32 nylon insert lock zinc plated 2
12 999-0408 Nut 4-40 plain machine screw 2
13 999-0006 Washer 3/16 flat zinc plated 6
14 174-5259 Washer #10 helical 4
15 174-0532 Washer 7/32 x 3/64 nylon 2
16 999-0479 Washer #4 internal star lock zinc plated 2
17 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel 10
18 174-9022 Brush deck switch 1
N/S 174-8280 Cable assembly 18G console 1
