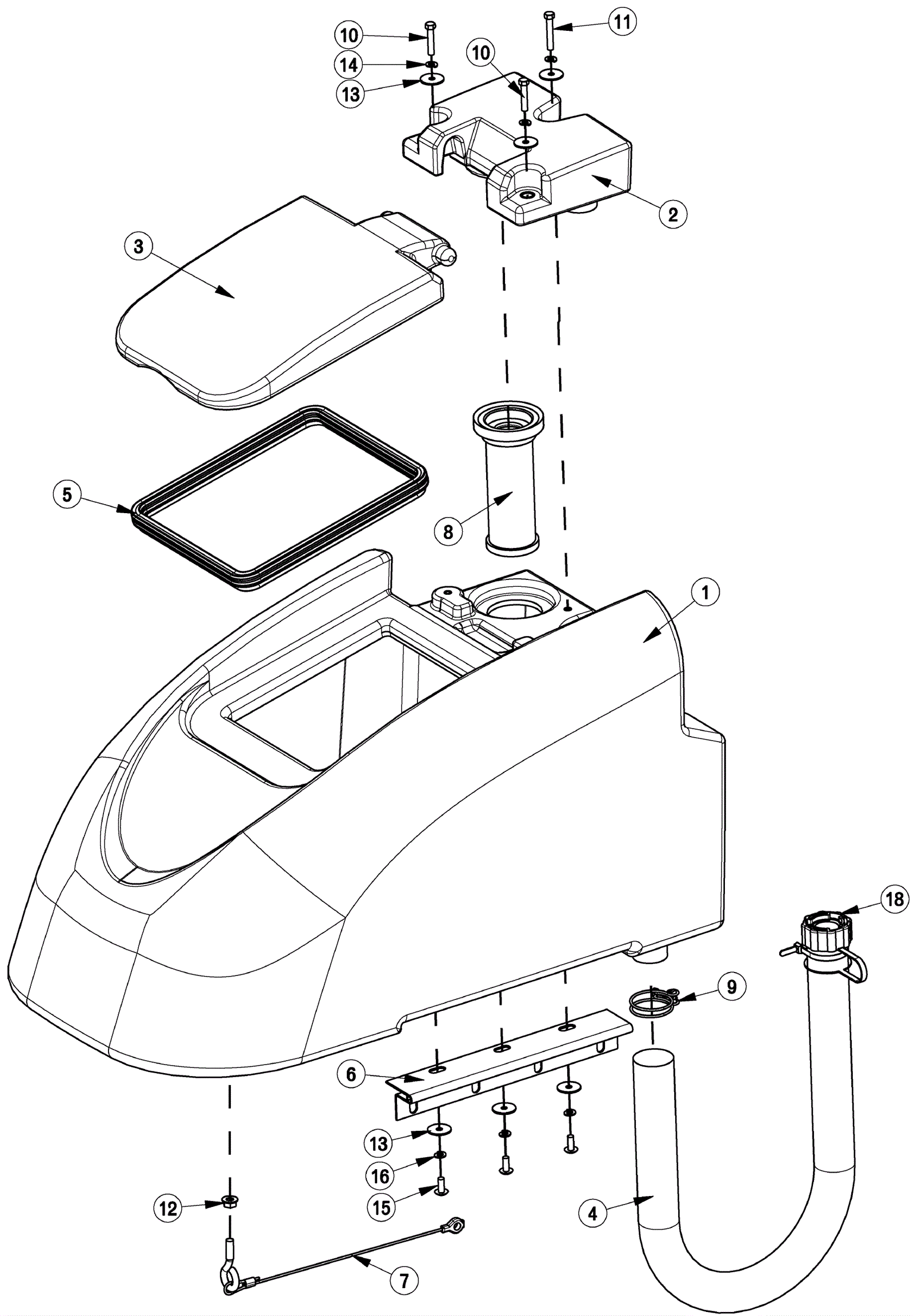

BD20 Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-7167 Recovery tank $172.11 1 usually ships 4-14 days
2 174-7168 Vacuum manifold $70.35 1 usually ships 4-14 days
3 174-7169 Lid $37.73 1 usually ships 4-14 days
4 174-8455 Drain hose assembly $72.20 1 ships same day
5 174-8268 Lid gasket $18.76 1 usually ships 4-14 days
6 174-8269 Recovery tank hinge $31.03 1 usually ships 1-5 days
7 174-7166 Recovery tank cable assembly $13.05 1 usually ships 4-14 days
8 174-8271 Screened float $23.20 1 usually ships 4-14 days
9 174-3354 Hose clamp $3.28 1 ships same day
10 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
11 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
12 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
13 174-0536 Washer 1/4 $0.97 6 usually ships 4-14 days
14 999-0060 Washer 1/4 split lock plain finish $0.99 3 ships same day
15 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 3 ships same day
16 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
18 174-8960 Drain hose cap $14.91 1 usually ships 4-14 days
N/S 174-8959 O-ring $3.80 1 usually ships 4-14 days
