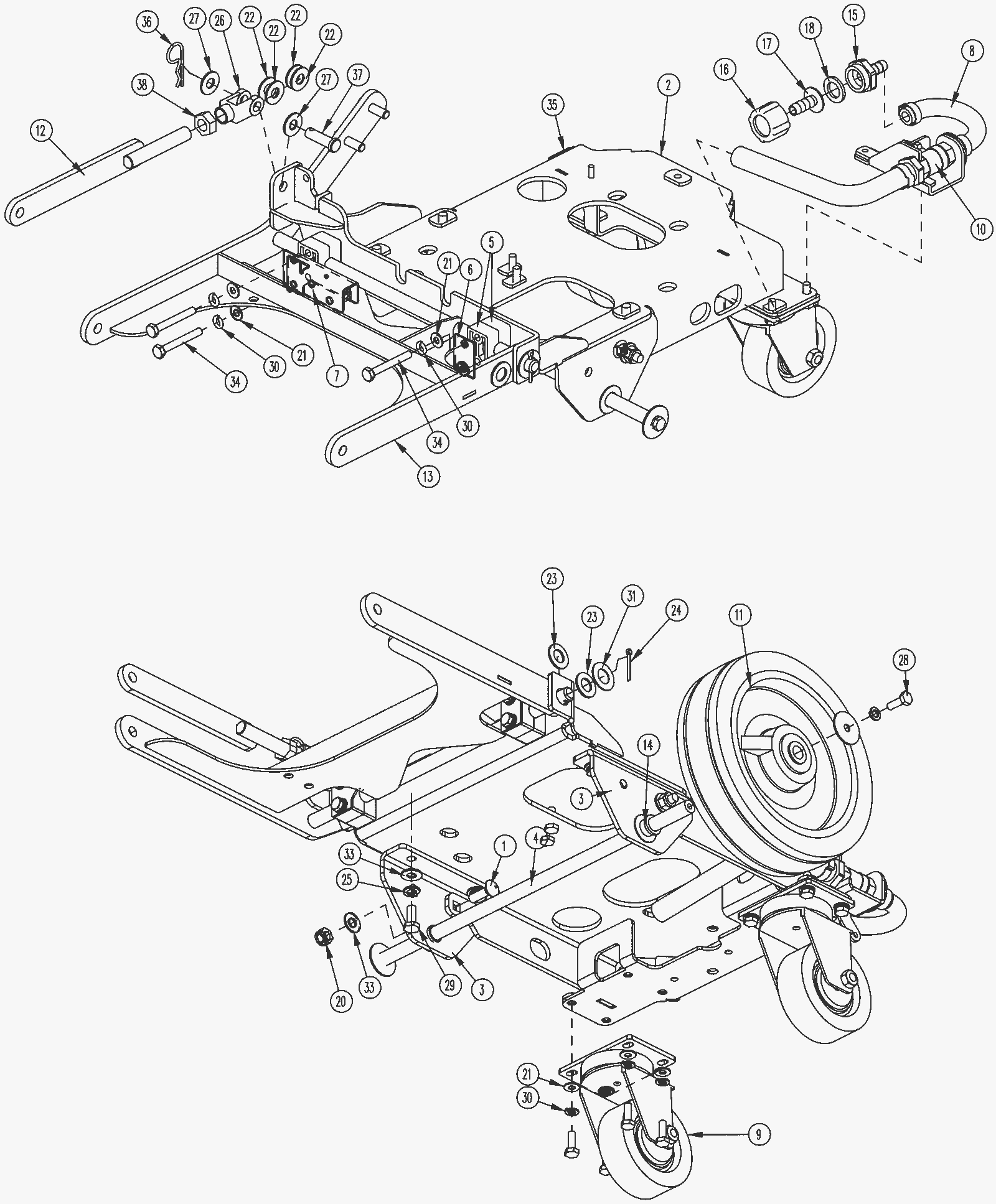

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
2 |
|
|
2 |
174-8238
|
Main frame weldment |
1 |
|
|
3 |
174-8239
|
Wheel bracket |
2 |
|
|
4 |
174-8242
|
Wheel rod |
1 |
|
|
5 |
174-8243
|
Bearing block |
4 |
|
|
6 |
174-8244
|
Bearing block plate |
1 |
|
|
7 |
174-8246
|
Deck switch assembly |
1 |
|
|
8 |
374-2299
|
Wiire reinforced hose 3/8 X 5.5 inch |
1 |
|
|
9 |
274-9979
|
3 1/2 inch caster |
2 |
|
|
10 |
174-8255
|
Solution valve assembly |
1 |
|
|
11 |
174-8249
|
Wheel 8 x 2 x .5 |
2 |
|
|
12 |
174-7156
|
Upper lifting arm |
1 |
|
|
13 |
274-7650
|
Deck lift weldment |
1 |
|
|
14 |
174-0120
|
Bushing |
2 |
|
|
15 |
374-2225
|
3/8 inch fitting |
1 |
|
|
16 |
374-2226
|
Fitting |
1 |
|
|
17 |
374-2227
|
Fitting |
1 |
|
|
18 |
374-2228
|
Mesh screen filter |
1 |
|
|
20 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
2 |
|
|
21 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
12 |
|
|
22 |
174-8193
|
Washer .390 x .880 x .062 flat |
4 |
|
|
23 |
999-0566
|
Washer 1/2 flat nylon |
2 |
|
|
24 |
174-1039
|
Cotter pin 1/8 x 1 |
1 |
|
|
25 |
174-8250
|
Washer helical 5/16 stainless steel |
4 |
|
|
26 |
174-7162
|
Yoke clevis with pin |
1 |
|
|
27 |
999-1363
|
Washer 7/8 flat stainless steel |
2 |
|
|
28 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
12 |
|
|
29 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
4 |
|
|
30 |
999-0632
|
Washer 1/4 split lock stainless steel |
14 |
|
|
31 |
174-0588
|
Washer 9/16 x 1-1/16 x 3/64 flat pleated |
3 |
|
|
33 |
174-8251
|
Washer flat stainless steel |
6 |
|
|
34 |
999-0258
|
Bolt 1/4-20 x 2 hex head grade 5 zinc plated |
4 |
|
|
35 |
174-2234
|
Cord clip |
1 |
|
|
36 |
174-0200
|
Cotter pin |
1 |
|
|
37 |
174-5862
|
Clevis pin |
1 |
|
|
38 |
999-0714
|
Nut 1/2-20 hex jam stainless steel |
1 |
|
|
N/S |
997-2001
|
Hose clamp |
2 |
|
|
N/S |
174-1167
|
Washer 9/32 x 19/32 flat stainless steel |
2 |
|
|
N/S |
274-9788
|
Filter |
1 |
|
|
