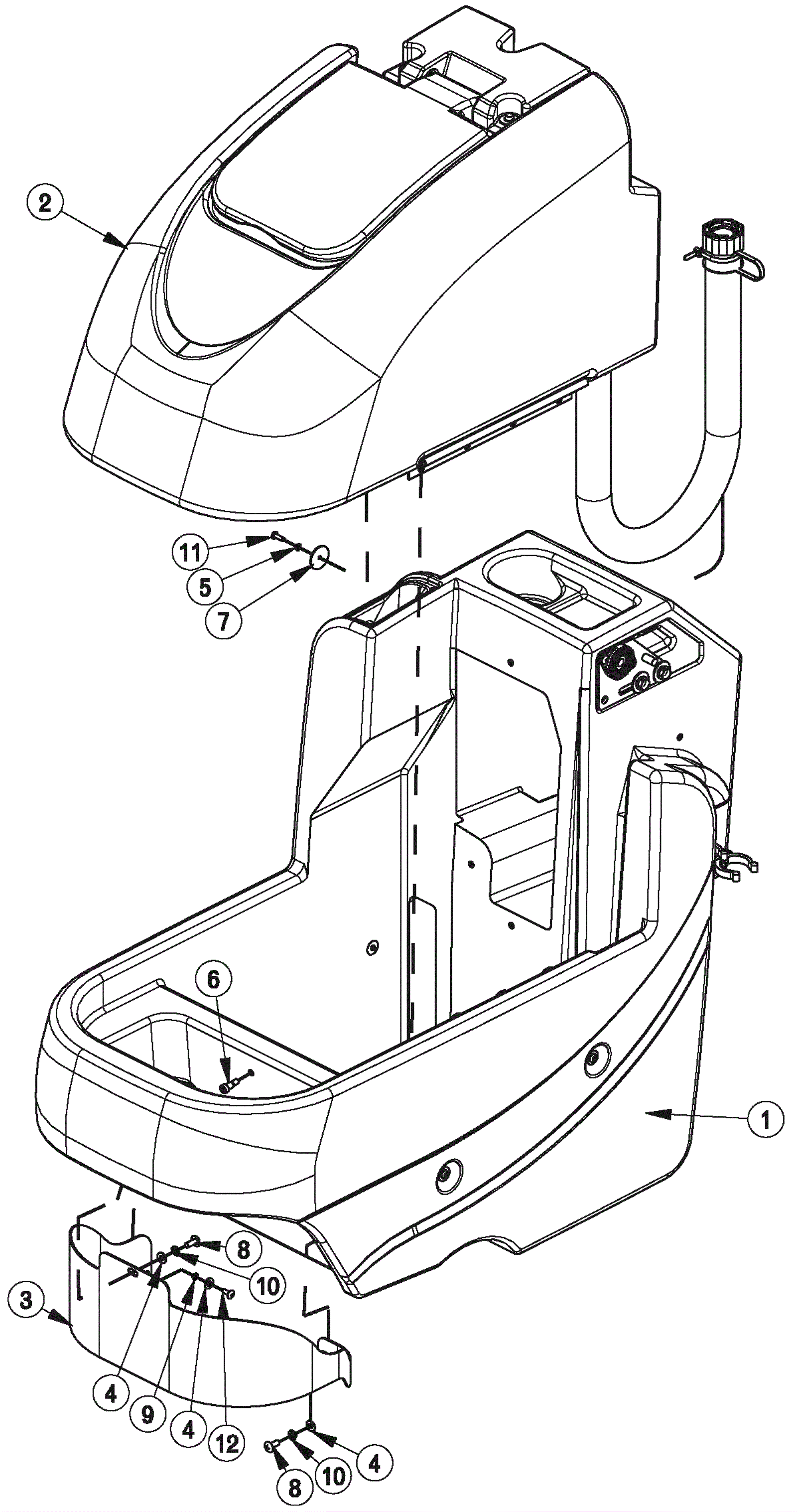

BD20 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-7151 Solution tank assembly $322.80 1 usually ships 4-14 days
2 174-7152 Recovery tank assembly $479.14 1 usually ships 1-5 days
3 174-7153 Front panel $160.18 1 usually ships 1-5 days
4 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
5 174-5259 Washer #10 helical $0.97 4 usually ships 4-14 days
6 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 1 ships same day
7 999-0464 Washer 3/16 flat plain finish $0.99 4 ships same day
8 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
9 999-0089 Washer #10 internal star lock zinc plated $0.99 1 ships same day
10 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
11 999-0013 Screw 10 x 5/8 pan head phillips sheet metal $0.99 4 ships same day
12 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 1 ships same day
N/S 174-7154 Front panel plug $0.97 1 usually ships 1-5 days
N/S 174-7155 Front panel plug $0.97 1 usually ships 1-5 days
