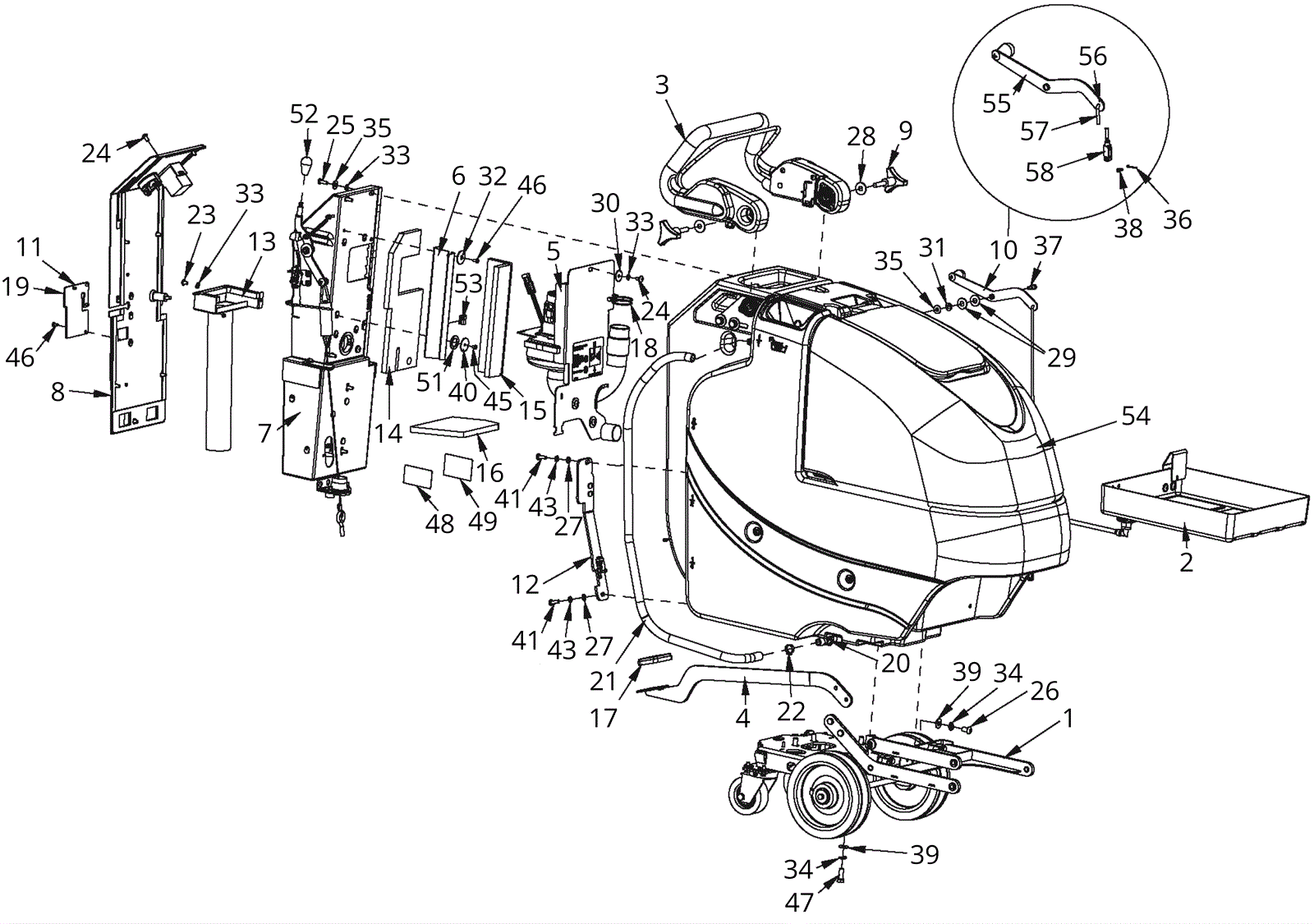

BD20 Brush Drive Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8206 Chassis assembly $425.21 1 usually ships 1-5 days
2 174-8207 Battery tray assembly $57.32 1 usually ships 4-14 days
3 174-8208 Handle assembly $439.88 1 usually ships 1-5 days
4 174-8209 Lift pedal weldment $49.88 1 usually ships 4-14 days
5 174-8210 Vac motor assembly $260.09 1 usually ships 4-14 days
6 174-8211 Inside cover bracket $15.05 1 usually ships 1-5 days
7 174-8212 120V electrical box assembly $1,145.60 1 usually ships 4-14 days
8 174-7271 Electronic box cover assembly $214.88 1 usually ships 4-14 days
9 174-8214 Knob 3/8-16 stud $7.24 2 usually ships 4-14 days
10 174-8215 Solution control assembly $48.53 1 (includes 36, 38, 55-58) usually ships 1-5 days
11 174-8216 Power cord mount bracket $9.90 1 usually ships 1-5 days
12 174-8217 Lift pedal stop assembly $51.80 1 usually ships 1-5 days
13 174-8218 Charger inlet assembly $35.23 1 usually ships 1-5 days
14 174-8219 Foam cover with adhesive $5.60 1 usually ships 1-5 days
15 174-8220 1/2 inch foam cover $3.57 1 usually ships 1-5 days
16 174-8222 1/2 inch foam cover $4.55 1 usually ships 1-5 days
17 174-0102 Pedal pad $5.86 1 usually ships 4-14 days
18 997-2000 Hose clamp $2.37 1 ships same day
19 174-8223 Strain relief $0.97 1 usually ships 4-14 days
20 174-8224 Fitting 1/2 barb 3/4 mpt $1.58 1 usually ships 4-14 days
21 174-8225 Hose 1/2 ID x 42 inch clear $6.45 1 usually ships 4-14 days
22 174-8226 3/4 inch hose clamp $1.75 2 usually ships 4-14 days
23 999-0509 Screw 1/4-20 x 3/8 pan head phillips zinc plated $0.99 1 ships same day
24 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 10 ships same day
25 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated $0.99 5 ships same day
26 999-0616 Screw 3/8-16 x 5/8 socket head alloy plain finish $0.99 2 ships same day
27 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
28 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
29 999-0328 Washer 7/16 USS flat $0.99 2 ships same day
30 174-0536 Washer 1/4 $0.97 3 usually ships 4-14 days
31 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
32 174-5259 Washer #10 helical $0.97 1 usually ships 4-14 days
33 999-0060 Washer 1/4 split lock plain finish $0.99 9 ships same day
34 999-0034 Washer 3/8 split lock plain finish $1.82 6 ships same day
35 999-0024 Washer 5/16 flat stainless steel $1.34 6 ships same day
36 174-3219 Cotter pin .06 x .75 $1.20 1 ships same day
37 174-5160 Bolt 1/4-20 x .44 x 3/8 shoulder $0.86 1 ships same day
38 174-2756 Clevis pin 3/16 x 19/32 $0.97 1 usually ships 4-14 days
39 999-1363 Washer 7/8 flat stainless steel $3.48 6 ships same day
40 999-0464 Washer 3/16 flat plain finish $0.99 2 ships same day
41 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
43 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
45 999-0082 Screw 10-24 x 1/4 round head slotted zinc plated $0.99 1 ships same day
46 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 5 ships same day
47 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
48 174-5775 Serial nameplate decal $1.24 1 usually ships 1-5 days
49 174-8228 Clear laminate decal $2.57 1 usually ships 1-5 days
51 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
52 174-0387 Knob $9.31 1 usually ships 4-14 days
53 174-1121 Cord clip $1.82 1 usually ships 4-14 days
54 174-7150 Base assembly $633.70 1 usually ships 1-5 days
55 174-8231 Solution control lever assembly $31.33 1 usually ships 4-14 days
56 174-8232 Nut 3/16 inch push on washer cap $1.56 1 usually ships 1-5 days
57 174-8233 Solution control rod $8.69 1 usually ships 4-14 days
58 174-8234 Yoke 3/16 x 10-32 clevis $2.73 1 usually ships 4-14 days
N/S 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
N/S 174-8251 Washer flat stainless steel $0.86 2 ships same day
N/S 174-8229 Patent number label $1.25 1 usually ships 1-5 days
