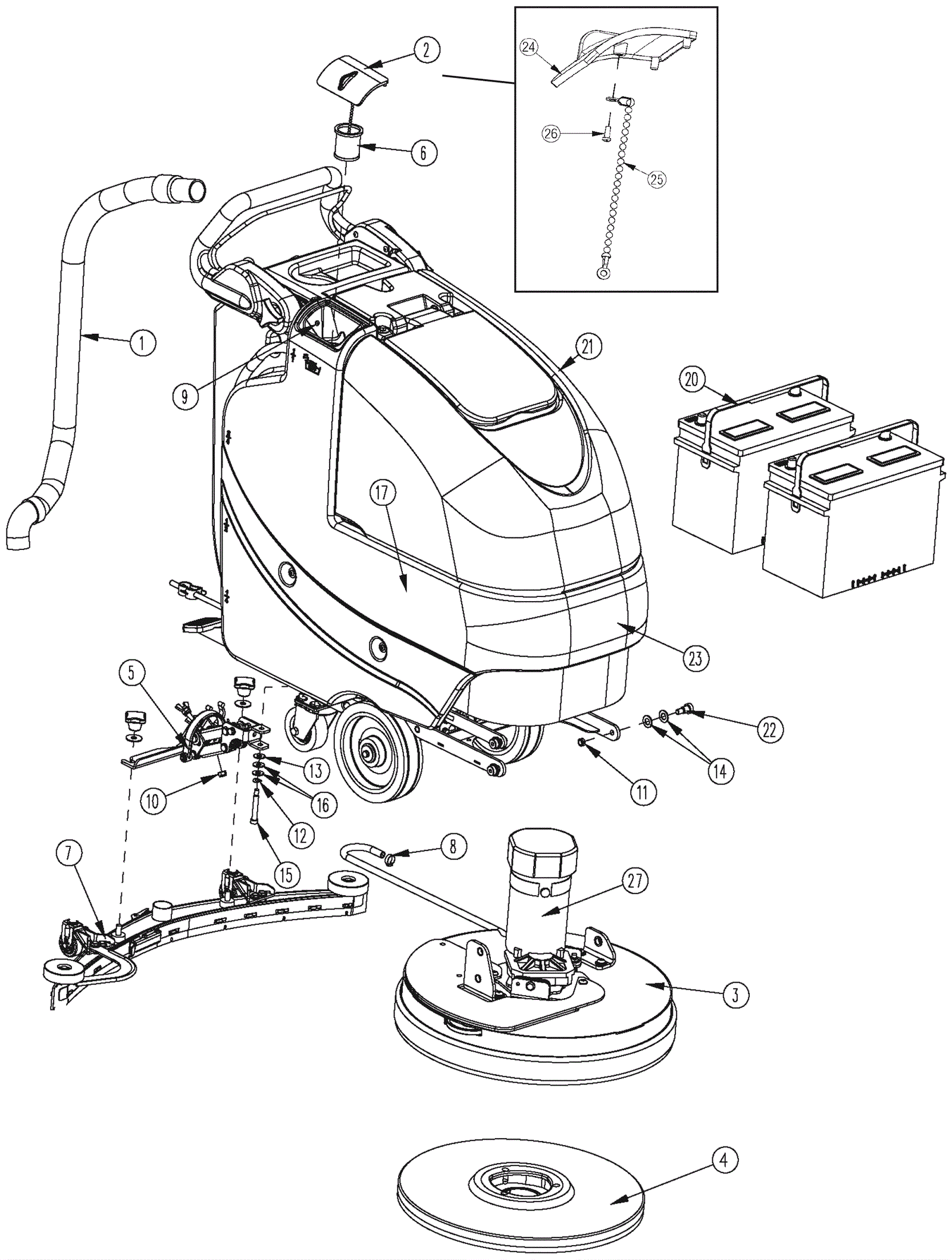

BD20 Main Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8186 Recovery vac hose with cuff (clear) $39.92 1 ships same day
2 174-8187 Solution tank lid assembly $18.97 1 (includes 24-26) usually ships 12-16 days
3 174-8201 Brush deck assembly 20 inch $1,226.94 1 usually ships 1-5 days
4a 174-9037 Nylon scrubbing brush $258.13 1 ships same day
4b 174-8168 Pad driver $143.03 1 usually ships 12-16 days
4c 174-9604 Heavy grit stripping brush - 80 grit $475.20 1 usually ships 12-16 days
4d 174-9605 Medium grit scrubbing brush - 120 grit $466.37 1 usually ships 12-16 days
5 174-8343 Squeegee lift mechanism assembly $193.37 1 ships same day
6 174-8189 Fill port filter $13.35 1 usually ships 12-16 days
7 274-9436 34 inch squeegee assembly curved $515.10 1 usually ships 12-16 days
8 997-2001 Hose clamp $2.42 1 ships same day
9 174-8192 Screw 10 x 3/4 stainless steel $0.97 1 usually ships 12-16 days
10 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
11 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 3 ships same day
12 999-0120 Washer 3/8 SAE flat $0.99 1 ships same day
13 174-8193 Washer .390 x .880 x .062 flat $1.08 1 usually ships 12-16 days
14 999-0566 Washer 1/2 flat nylon $0.99 6 ships same day
15 174-8194 Bolt 5/16-18 X 2 3/8 shoulder $3.82 1 usually ships 12-16 days
16 999-1363 Washer 7/8 flat stainless steel $3.48 2 ships same day
17 174-7269 Decal Call for price 2 usually ships 12-16 days
20a 162-0011 12V 105Ah wet battery (SNSR) $291.50 2 ships same day
21 174-7270 Brush drive base assembly $2,956.65 1 usually ships 12-16 days
22 174-5325 Bolt 1/2 x 1/2 shoulder $2.77 3 usually ships 12-16 days
23 174-7143 Bulldog decal $0.90 1 usually ships 1-5 days
24 174-8164 Solution tank lid $7.53 1 usually ships 12-16 days
25 174-8199 Beaded chain with eyelets stainless steel $3.57 1 usually ships 12-16 days
26 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 1 ships same day
27 174-7195 Brush motor $36.95 1 usually ships 1-5 days
N/S 174-8196 Jumper cable assembly red 4G 12 inch $25.20 1 usually ships 12-16 days
N/S 174-8197 Battery cable assembly $41.05 1 usually ships 12-16 days
N/S 174-7142 Contact information decal $0.90 1 usually ships 1-5 days
