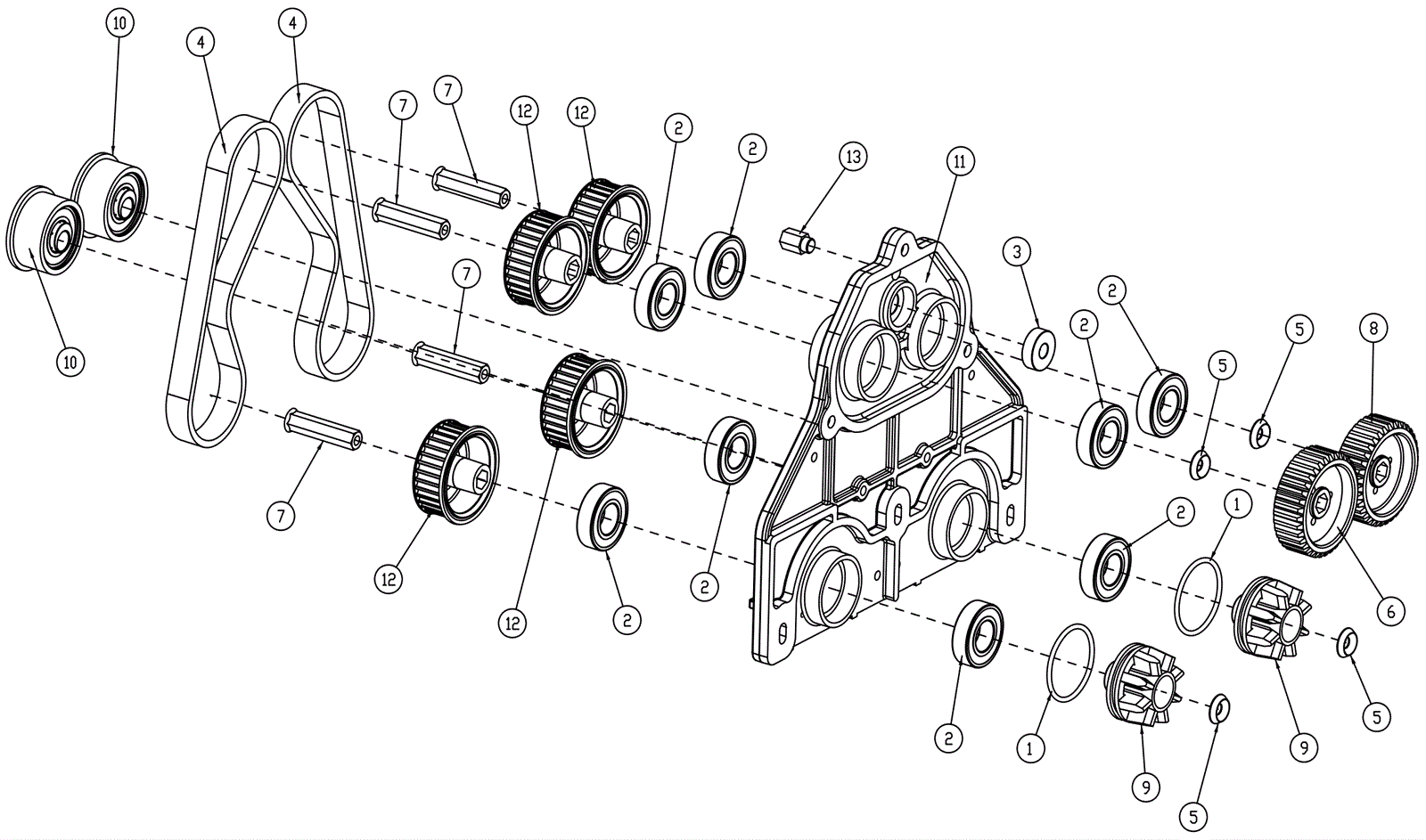

SS20 Gear Support Assembly

#PartDescriptionPriceReqNotesAvailability
1 374-1805 O-ring $1.38 2 usually ships 9-11 days
2 174-8559 Bearing 6003 seal $3.30 8 usually ships 9-11 days
3 274-3331 Bearing $21.54 1 usually ships 9-11 days
4 274-6684 Belt $56.02 2 usually ships 9-11 days
5 374-1485 Washer $2.17 4 usually ships 9-11 days
6 274-9957 Left hand gear $126.33 1 usually ships 1-5 days
7 274-0334 keyway $4.29 4 usually ships 1-5 days
8 274-7884 Right hand gear $189.72 1 usually ships 9-11 days
9 274-1844 Drive pulley $10.04 2 usually ships 9-11 days
10 274-5524 Idler assembly $55.42 2 usually ships 1-5 days
11 174-9088 Gear support housing $277.89 1 usually ships 9-11 days
12 274-3538 Sprocket $44.61 4 usually ships 1-5 days
13 174-7267 Stud M8/M6 Call for price 1 usually ships 9-11 days
