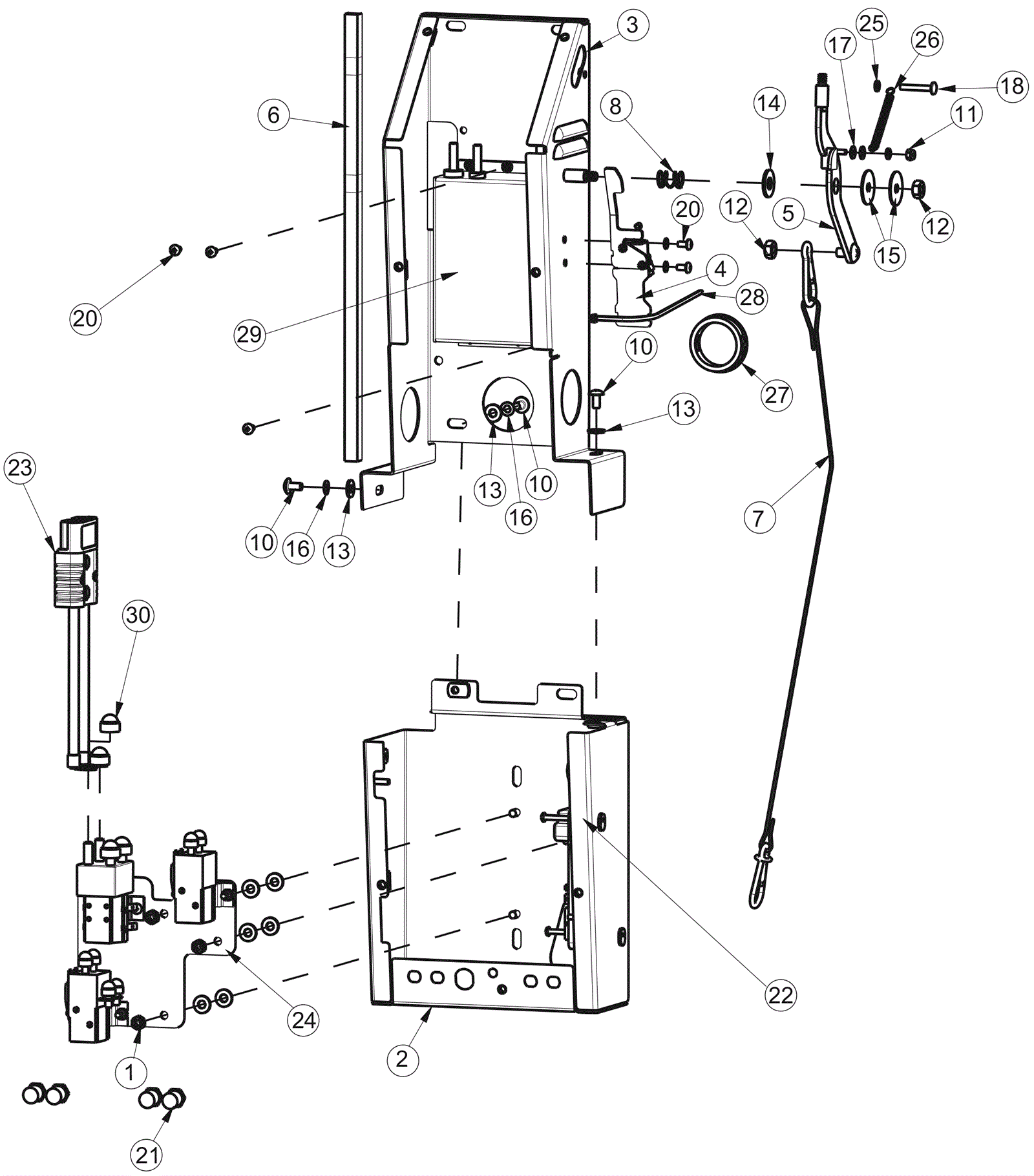

SS20 Electrical Box Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-9057 Nut 1/4-20 serated nylock $1.08 3 usually ships 1-5 days
2 174-8283 Bottom electrical box weldment $127.97 1 usually ships 1-5 days
3 174-8284 Upper electrical box weldment $128.09 1 usually ships 12-16 days
4 174-8287 Vac switch assembly $49.73 1 usually ships 12-16 days
5 174-8128 Lever $41.92 1 usually ships 12-16 days
6 174-8288 Foam tape 1/2 x 16 1/2 inch $2.63 1 usually ships 12-16 days
7 274-4152 Squeegee cable assembly $31.92 1 (gromment is NLA) usually ships 12-16 days
8 274-4152 Squeegee cable assembly $31.92 1 (gromment is NLA) usually ships 12-16 days
9 374-1022 Screw 8-32 x 1 1/8 pan head phillips zinc $1.08 2 usually ships 1-5 days
10 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 3 ships same day
11 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 1 ships same day
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
13 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
14 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
15 174-2255 Washer 5/16 x 7/8 x 3/64 flat $1.08 2 usually ships 12-16 days
16 999-0060 Washer 1/4 split lock plain finish $0.99 2 ships same day
17 174-0532 Washer 7/32 x 3/64 nylon $1.08 2 usually ships 12-16 days
18 174-5072 Screw 10-24 x 1-1/4 $1.08 1 usually ships 12-16 days
N/S 999-0089 Washer #10 internal star lock zinc plated $0.99 5 ships same day
20 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 5 ships same day
21 174-5824 Circuit breaker boot $5.95 4 usually ships 12-16 days
22 174-7084 24V I-drive motor controller $254.81 1 usually ships 12-16 days
23 174-8290 Wire assembly $65.83 1 usually ships 12-16 days
24 174-7265 Electrical panel assembly $548.33 1 usually ships 12-16 days
25 374-2258 Mount ring $2.63 2 usually ships 12-16 days
26 174-5235 Spring $4.03 1 usually ships 12-16 days
27 174-0255 Bushing $1.38 1 usually ships 1-5 days
28 997-2102 Cable tie $1.38 1 ships same day
29a 174-7266 24V charger for 155-193ah batteries $498.83 1 (new style charger, will need to order 174-9266 if coverting from old style charger to new style) usually ships 12-16 days
29b 174-9266 24V charger for 155-193AH batteries $533.91 1 (new style charger, includes mounting hardware to convert from old style charger to new style) usually ships 12-16 days
30 174-8291 Nut cover safety cap M8 $1.55 2 usually ships 1-5 days
