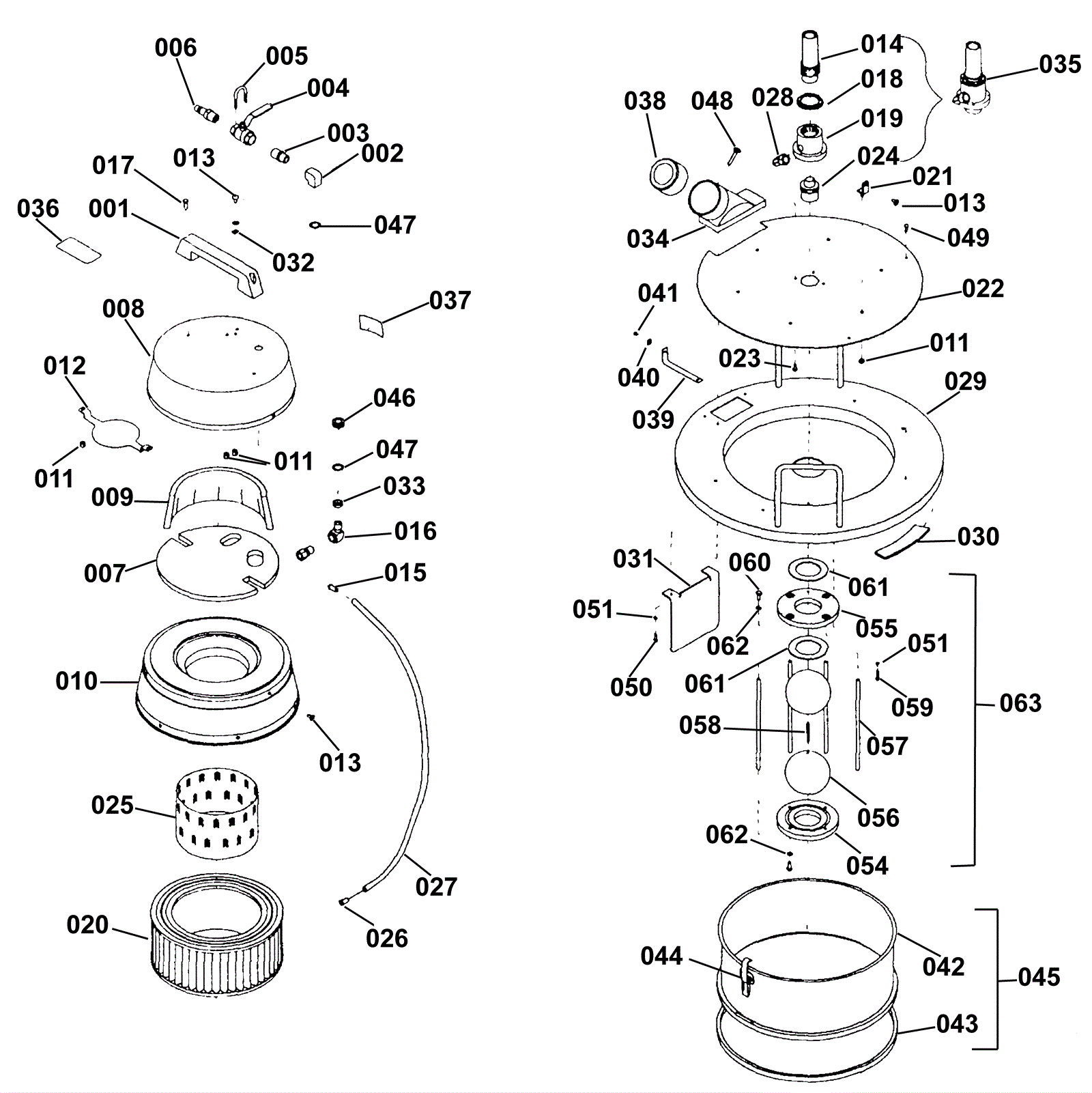

C-70155 Filter Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2278 Handle $9.31 1 usually ships 4-14 days
002 174-1732 3/8 x 3/8 Brass elbow $11.95 1 usually ships 1-5 days
003 174-1733 Hew nipple reducer $20.50 1 usually ships 1-5 days
004 174-1482 Valve air $23.36 1 usually ships 4-14 days
005 174-1734 U Bolt Call for price 1 usually ships 1-5 days
006 174-1484 Coupler $5.54 1 usually ships 1-5 days
007 174-2905 Dome felt $25.01 1 usually ships 1-5 days
008 174-2906 Top cover $137.70 1 usually ships 1-5 days
009 174-2907 Felt liner $20.81 1 usually ships 1-5 days
010 174-2908 Filter cover $301.24 1 usually ships 1-5 days
011 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 15 ships same day
012 174-2909 Air deflector $16.15 1 usually ships 1-5 days
013 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated $0.99 10 ships same day
014 174-1740 Venturi exhaust tube $81.95 1 usually ships 1-5 days
015 174-1741 Male connector $8.01 1 usually ships 1-5 days
016 174-0075 90 Degree elbow barb $9.58 1 usually ships 4-14 days
017 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
018 174-1742 Locking nut Call for price 1 usually ships 1-5 days
019 174-1753 Venturi assembly $354.43 1 usually ships 1-5 days
020 174-2910 Exhaust filter $188.48 1 usually ships 1-5 days
021 174-1745 Bracket mounting tab $1.00 6 usually ships 1-5 days
022 174-3265 Base lid cover Call for price 1 usually ships 1-5 days
023 174-8020 Screw 10-24 x 1/2 machine stainless steel $1.20 4 usually ships 1-5 days
024 174-1747 Venturi intake $46.74 1 usually ships 1-5 days
025 174-2912 Perforated shield $23.14 1 usually ships 1-5 days
026 174-0366 Sleeve insert $1.20 2 usually ships 1-5 days
027 174-2913 Ply hose 32 inch long $4.52 1 usually ships 1-5 days
028 174-0359 Male elbow and hose fitting $23.73 1 usually ships 1-5 days
029 174-3266 Lid weldment $267.84 1 With handles usually ships 4-14 days
030 174-1495 Gasket $23.19 1 usually ships 4-14 days
031 174-1497 Splash guard $22.92 1 usually ships 1-5 days
032 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
033 174-2204 Spacer $4.64 1 usually ships 1-5 days
034 174-1489 Intake Call for price 1 usually ships 1-5 days
035 174-1753 Venturi assembly $354.43 1 Includes items 14, 18, 19, 24 and 28 usually ships 1-5 days
036 174-1754 Air pressure decal Call for price 1 usually ships 1-5 days
037 174-5775 Serial nameplate decal $1.24 1 usually ships 1-5 days
038 174-1491 Adapter $57.23 1 usually ships 1-5 days
039 174-3268 Braided ground strap $19.67 1 usually ships 1-5 days
040 999-0068 Screw 10-32 x 1/4 round head slotted zinc plated $0.99 1 ships same day
041 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
042 174-3269 Shield splash Call for price 1 usually ships 1-5 days
043 174-1462 Edging $7.52 1 usually ships 1-5 days
044 174-2401 Latch $14.70 2 usually ships 4-14 days
045 174-1461 Complete adaptor $173.74 1 Includes items 42, 43, and 44 usually ships 1-5 days
046 174-0261 Rubber grommet $5.03 1 usually ships 4-14 days
047 174-0522 Washer .69 flat stainless steel $1.10 2 usually ships 4-14 days
048 174-1490 Thumb screw $0.97 1 usually ships 1-5 days
049 174-5247 Screw 12 x 1/2 steel type a $1.20 8 usually ships 4-14 days
050 174-6224 Screw 10-32 x 5/8 truss head $0.97 4 usually ships 1-5 days
051 174-5259 Washer #10 helical $0.97 5 usually ships 4-14 days
052 174-5224 Screw 8-32 x 3/4 $1.00 8 usually ships 1-5 days
053 174-5406 Washer 8 helical $0.97 8 usually ships 4-14 days
054 174-3270 Water shut-off plate $40.92 1 usually ships 1-5 days
055 174-3271 Water shut-off plate $147.12 1 usually ships 1-5 days
056 174-3272 4 Inch float ball $68.72 2 usually ships 1-5 days
057 174-3273 Stud 1/4 - 20 x 2 $3.48 1 usually ships 1-5 days
058 174-3274 Spacer rod $23.02 4 usually ships 1-5 days
059 174-3223 Screw 10-32 x 7/8 stainless steel $0.97 2 usually ships 4-14 days
060 174-5718 Bolt 1/4 20 x 5/8 hex head $0.97 8 usually ships 1-5 days
061 174-3275 Gasket 2 1/4 x 3 1/2 x 1/8 $5.98 2 usually ships 1-5 days
062 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
063 174-3276 Complete float asssembly $302.15 1 Included items 51 and 54 thru 62 usually ships 1-5 days
