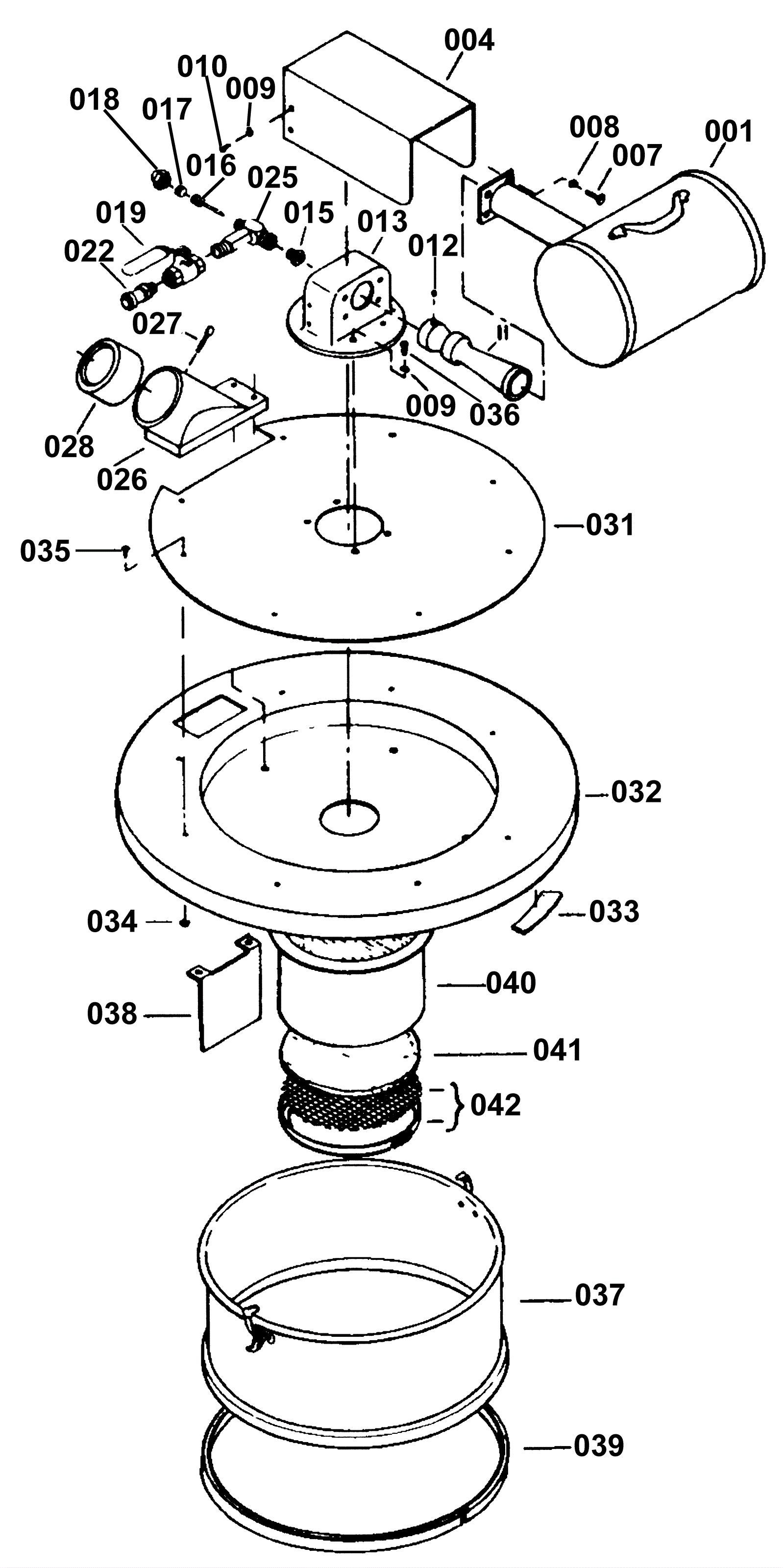

C-87155-01 X701-55 Intake, Filter, and Exhaust Assembly - X701

#PartDescriptionPriceReqNotesAvailability
001a 174-1471 Muffler $1,138.39 1 701 usually ships 1-5 days
001a 174-1471 Muffler $1,138.39 1 701 usually ships 1-5 days
001b 174-1472 Muffler $717.98 1 704 usually ships 1-5 days
001b 174-1472 Muffler $717.98 1 704 usually ships 1-5 days
004a 174-1473 Cover $30.43 1 701 usually ships 1-5 days
004a 174-1473 Cover $30.43 1 701 usually ships 1-5 days
004b 174-1474 Cover $74.73 1 704 usually ships 1-5 days
004b 174-1474 Cover $74.73 1 704 usually ships 1-5 days
007 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 4 ships same day
007 999-0401 Bolt 5/16-18 x 7/8 hex head grade 5 zinc plated $0.99 4 ships same day
008 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
008 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
009 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
009 999-0321 Screw 10-32 x 3/8 pan head slotted zinc plated $0.99 4 ships same day
010 174-5259 Washer #10 helical $1.08 4 usually ships 12-16 days
010 174-5259 Washer #10 helical $1.08 4 usually ships 12-16 days
011 174-1475 Venturi horn $42.70 usually ships 1-5 days
011 174-1475 Venturi horn $42.70 usually ships 1-5 days
012 174-0822 Screw 1/4-20 x 1/3 $1.08 usually ships 12-16 days
012 174-0822 Screw 1/4-20 x 1/3 $1.08 usually ships 12-16 days
013a 174-1476 Venturi housing Call for price 1 701-702 usually ships 1-5 days
013a 174-1476 Venturi housing Call for price 1 701-702 usually ships 1-5 days
013b 174-1477 Venturi housing $105.56 1 704 usually ships 1-5 days
013b 174-1477 Venturi housing $105.56 1 704 usually ships 1-5 days
015 174-1478 Hex orifice $19.44 usually ships 1-5 days
015 174-1478 Hex orifice $19.44 usually ships 1-5 days
016 174-1479 Needle assembly Call for price usually ships 1-5 days
016 174-1479 Needle assembly Call for price usually ships 1-5 days
017 174-1480 Set screw $1.08 usually ships 1-5 days
017 174-1480 Set screw $1.08 usually ships 1-5 days
018 174-1481 Acorn nut 5/8 x 11 $1.08 usually ships 1-5 days
018 174-1481 Acorn nut 5/8 x 11 $1.08 usually ships 1-5 days
019a 174-1482 Valve air $25.96 1 701 usually ships 12-16 days
019a 174-1482 Valve air $25.96 1 701 usually ships 12-16 days
019b 174-1483 Air valve Call for price 1 704 usually ships 1-5 days
019b 174-1483 Air valve Call for price 1 704 usually ships 1-5 days
022a 174-1484 Coupler $6.16 1 701 usually ships 1-5 days
022a 174-1484 Coupler $6.16 1 701 usually ships 1-5 days
022b 174-1485 Coupler $22.22 1 704 usually ships 1-5 days
022b 174-1485 Coupler $22.22 1 704 usually ships 1-5 days
025a 174-1486 Valve body assembly $149.73 1 702-704 usually ships 1-5 days
025a 174-1486 Valve body assembly $149.73 1 702-704 usually ships 1-5 days
025b 174-1487 Valve body assembly $249.66 1 701-703 usually ships 1-5 days
025b 174-1487 Valve body assembly $249.66 1 701-703 usually ships 1-5 days
026 174-1489 Intake Call for price 1 usually ships 1-5 days
026 174-1489 Intake Call for price 1 usually ships 1-5 days
027 174-1490 Thumb screw $1.08 1 usually ships 1-5 days
027 174-1490 Thumb screw $1.08 1 usually ships 1-5 days
028 174-1491 Adapter $63.59 1 usually ships 1-5 days
028 174-1491 Adapter $63.59 1 usually ships 1-5 days
031a 174-1492 Lid cover Call for price 1 usually ships 1-5 days
031a 174-1492 Lid cover Call for price 1 usually ships 1-5 days
031b 174-1493 Lid cover Call for price 1 usually ships 1-5 days
031b 174-1493 Lid cover Call for price 1 usually ships 1-5 days
032 174-1494 55 Gallon common lid $264.53 1 usually ships 1-5 days
032 174-1494 55 Gallon common lid $264.53 1 usually ships 1-5 days
033 174-1495 Gasket $31.90 1 usually ships 12-16 days
033 174-1495 Gasket $31.90 1 usually ships 12-16 days
034 174-1496 Screw protector Call for price 8 usually ships 1-5 days
034 174-1496 Screw protector Call for price 8 usually ships 1-5 days
035 174-5247 Screw 12 x 1/2 steel type a $1.33 8 usually ships 12-16 days
035 174-5247 Screw 12 x 1/2 steel type a $1.33 8 usually ships 12-16 days
036 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 5 ships same day
036 999-0726 Screw 10-32 x 5/8 pan head phillips zinc plated $0.99 5 ships same day
037 174-1461 Complete adaptor $193.04 1 usually ships 1-5 days
037 174-1461 Complete adaptor $193.04 1 usually ships 1-5 days
038 174-1497 Splash guard $25.47 1 usually ships 1-5 days
038 174-1497 Splash guard $25.47 1 usually ships 1-5 days
039 174-1462 Edging $8.36 1 usually ships 1-5 days
039 174-1462 Edging $8.36 1 usually ships 1-5 days
040 174-3290 10 inch HEPA filter $432.63 1 usually ships 1-5 days
040 174-3290 10 inch HEPA filter $432.63 1 usually ships 1-5 days
041 174-1499 Pink impact filter package of 12 $2.63 1 usually ships 1-5 days
041 174-1499 Pink impact filter package of 12 $2.63 1 usually ships 1-5 days
042 174-1500 Impact filter retainer $85.72 1 usually ships 1-5 days
042 174-1500 Impact filter retainer $85.72 1 usually ships 1-5 days
