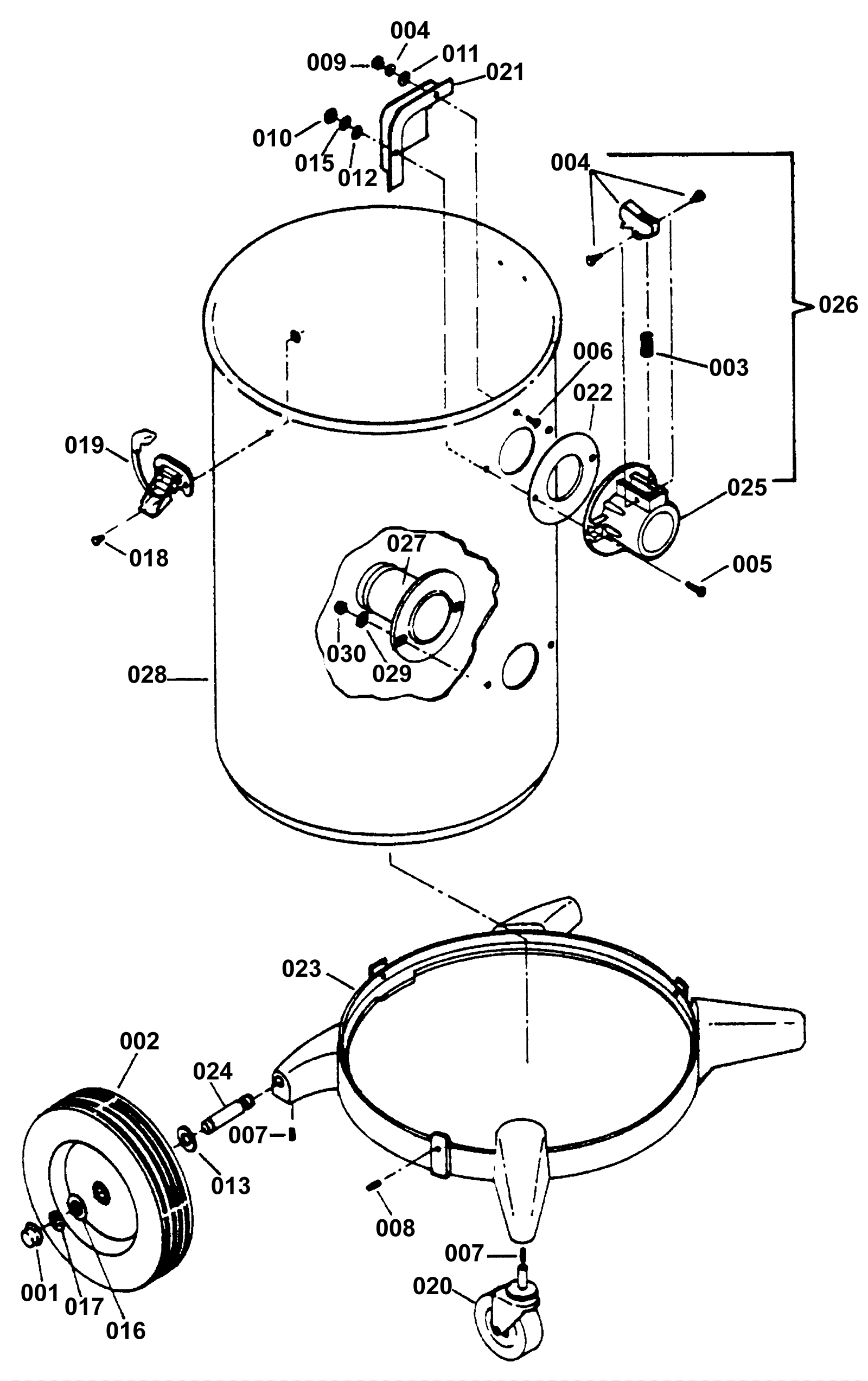

X1000-4 Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-3149 Hub cap $1.33 2 usually ships 4-14 days
002 174-0819 6 inch wheel $14.06 2 usually ships 4-14 days
003 174-0820 Return spring $0.93 1 usually ships 1-5 days
004 174-0821 Trigger with pins $3.17 1 usually ships 1-5 days
005 999-0705 Screw 10-24 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
006 174-2271 Screw 8-32 x 1/2 $0.99 1 usually ships 4-14 days
007 174-0822 Screw 1/4-20 x 1/3 $0.97 4 usually ships 4-14 days
008 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc $0.99 3 ships same day
009 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 1 ships same day
010 999-0460 Nut 10-32 hex $0.99 2 ships same day
012 999-0006 Washer 3/16 flat zinc plated $0.99 ships same day
013 174-5159 Washer 33/64 x 1/64 wave $0.99 2 usually ships 4-14 days
014 174-5406 Washer 8 helical $0.97 1 usually ships 4-14 days
015 174-5259 Washer #10 helical $0.97 2 usually ships 4-14 days
016 999-0855 Washer 9/16 SAE flat $0.99 2 ships same day
017 174-0178 1/2 inch external retaining ring $0.99 2 usually ships 4-14 days
018 174-0824 Rivet $0.97 4 usually ships 1-5 days
020 174-1453 Swivel caster Call for price 2 usually ships 1-5 days
021 174-2253 Intake deflector $17.28 1 usually ships 1-5 days
022 174-2262 Diecut poron intake gasket $1.10 1 usually ships 4-14 days
023 174-0826 Wheel bracket $156.05 1 usually ships 4-14 days
024 174-0827 Plated axle $4.38 2 usually ships 4-14 days
025 174-2263 Complete intake assembly (aluminum) $20.86 1 ships same day
026 174-2263 Complete intake assembly (aluminum) $20.86 1 ships same day
027 174-2404 Intake assembly tube $27.14 1 usually ships 4-14 days
028a 174-2396 Tank 4 gal. high intake $133.93 1 usually ships 1-5 days
028b 174-2397 Tank 4 gal. low intake $8.97 1 usually ships 1-5 days
028c 174-0829 6 gallon low intake tank $327.92 1 usually ships 1-5 days
028d 174-0830 6 gallon low intake plated tank $301.88 2 usually ships 1-5 days
029 174-0532 Washer 7/32 x 3/64 nylon $0.97 2 usually ships 4-14 days
030 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
049 174-2401 Latch $14.70 2 usually ships 4-14 days
N/S 174-0831 Paper filter protector $38.92 12 usually ships 4-14 days
N/S 174-0832 Disposable paper bag (10) $36.92 10 usually ships 4-14 days
N/S 174-0833 Bag frame Call for price 1 usually ships 1-5 days
N/S 174-2376 Bag assembly 4 gallon $69.29 1 usually ships 4-14 days
N/S 174-2377 Bag assembly 6 gallon $71.42 1 usually ships 4-14 days
