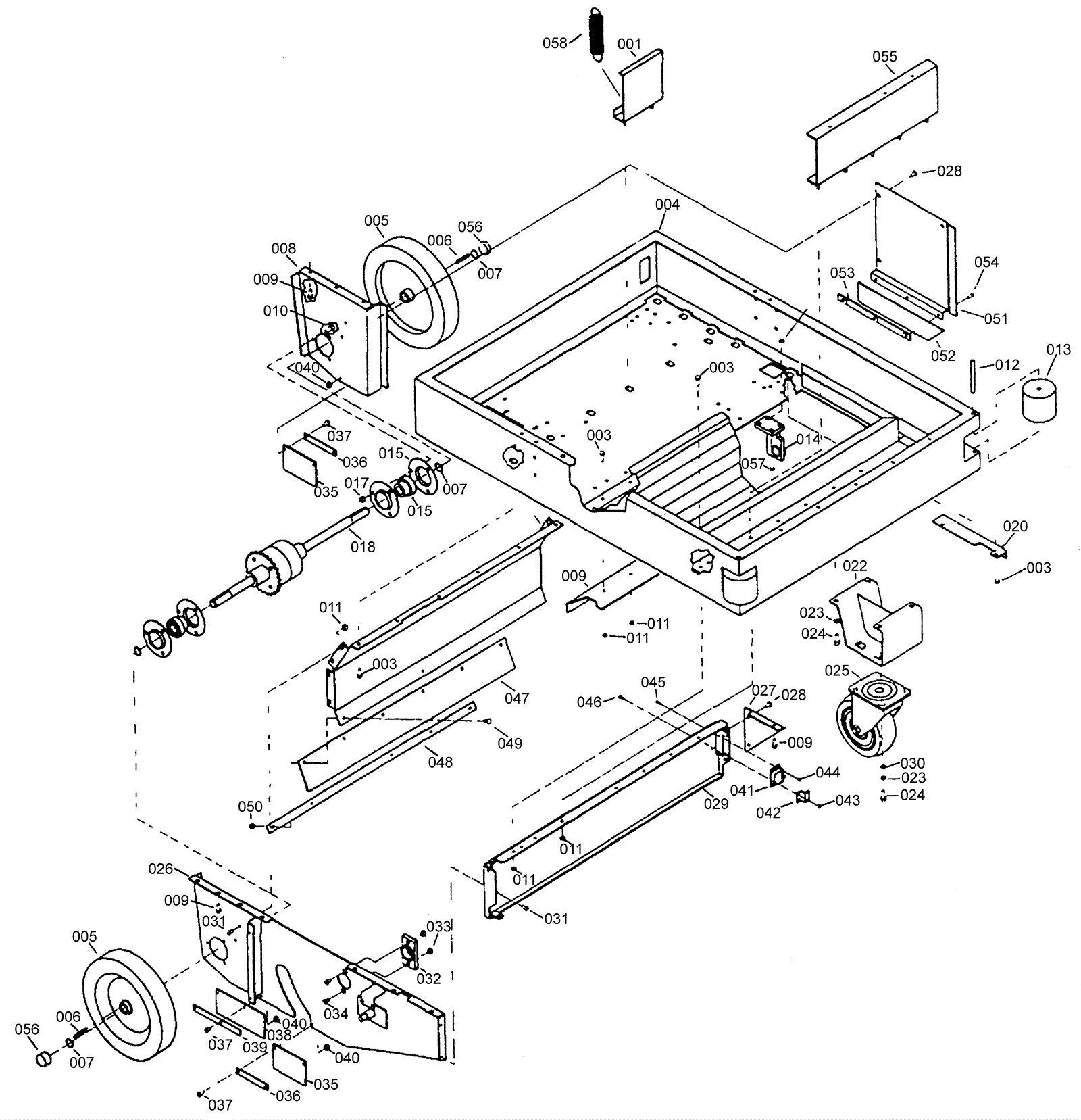

KS35-HM350001 Mainframe

#PartDescriptionPriceReqNotesAvailability
001 174-6205 Filter rest bracket Call for price 1 usually ships 1-5 days
003 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 20 ships same day
004 N/A Not available Call for price 1 Mainframe weldment usually ships 3-26 days
005 N/A Not available Call for price 2 (Wheel) usually ships 3-26 days
006 174-5717 Square keyway $1.13 2 usually ships 4-14 days
007 174-0283 3/4 retaining ring $3.97 4 ships same day
008 174-6208 Left side plate Call for price 1 usually ships 1-5 days
009 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 33 ships same day
010 999-1450 Bolt 5/16-18 x 5/8 hex head stainless steel $0.99 6 usually ships 1-5 days
011 999-0190 Nut 1/4-20 hex plain finish $0.99 32 ships same day
012 174-6209 3/8 OD x 3.5 lg rollpin $1.16 2 usually ships 1-5 days
013 174-6210 Roller Call for price 2 usually ships 1-5 days
014 174-6211 Axle holding bracket assembly $31.03 1 usually ships 1-5 days
015 174-6148 Bearing flange $4.28 4 usually ships 1-5 days
016 174-1291 Bearing with collar $63.30 2 usually ships 1-5 days
017 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 6 ships same day
018 174-6212 Differential $146.46 1 usually ships 1-5 days
019 174-6213 Brush guard Call for price 1 usually ships 1-5 days
020 174-6214 Dust cover bracket Call for price 1 usually ships 1-5 days
021 174-6215 Rear brush guard Call for price 1 usually ships 1-5 days
022 174-6216 Caster bracket weldment Call for price 1 usually ships 1-5 days
023 999-0028 Washer 5/16 split lock plain finish $0.99 8 ships same day
024 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 8 usually ships 1-5 days
025 174-6217 6 inch caster $69.31 1 usually ships 4-14 days
026 174-6218 Right side plate weldment Call for price 1 usually ships 1-5 days
027 174-6219 Triangle support Call for price 1 usually ships 1-5 days
028 999-0567 Screw 1/4-20 x 5/8 pan head phillips stainless steel $0.99 5 ships same day
029 174-6220 Front hopper support Call for price 1 usually ships 1-5 days
030 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
031 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 12 ships same day
032 174-6221 Nylon bushing $33.12 1 usually ships 1-5 days
033 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
034 174-5640 Screw 1/4-20 x 1 steel plated $1.77 2 usually ships 1-5 days
035 174-6222 4 inch rubber flap $10.47 2 usually ships 1-5 days
036 174-6223 4 inch retainer strip Call for price 2 usually ships 1-5 days
037 174-6224 Screw 10-32 x 5/8 truss head $0.97 7 usually ships 1-5 days
038 174-6225 6 inch rubber flap $11.60 1 usually ships 1-5 days
039 174-6226 6 inch retainer strap Call for price 1 usually ships 1-5 days
040 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 4 ships same day
041 174-6227 Latch catch Call for price 1 usually ships 1-5 days
042 174-6228 Latch bracket $32.99 1 usually ships 1-5 days
043 999-0357 Nut 8-32 nylon insert lock stainless steel $0.99 2 ships same day
044 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
045 174-5638 Screw 6-32 x 3/8 steel plated $0.97 2 usually ships 1-5 days
046 174-6229 Screw 8-32 x 3 3/4 flat head $1.10 2 ships same day
047 174-6230 Rubber flap $41.00 1 usually ships 1-5 days
048 174-6231 Flap holding bar Call for price 1 usually ships 1-5 days
049 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 6 ships same day
050 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 6 ships same day
051 174-6232 Dust cover $22.62 1 usually ships 1-5 days
052 174-6233 Rubber flap $16.77 1 usually ships 1-5 days
053 174-6234 Flap retainer strip $45.03 1 usually ships 1-5 days
054 999-0586 Screw 10-24 x 1/2 truss head stainless steel $0.99 3 ships same day
055 174-6235 Mounting bracket Call for price 1 usually ships 1-5 days
056 174-6236 Wheel cover (OBSOLETE) Call for price 2 usually ships 4-14 days
057 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $0.99 4 ships same day
058 174-0405 Extension spring $7.39 1 usually ships 1-5 days
