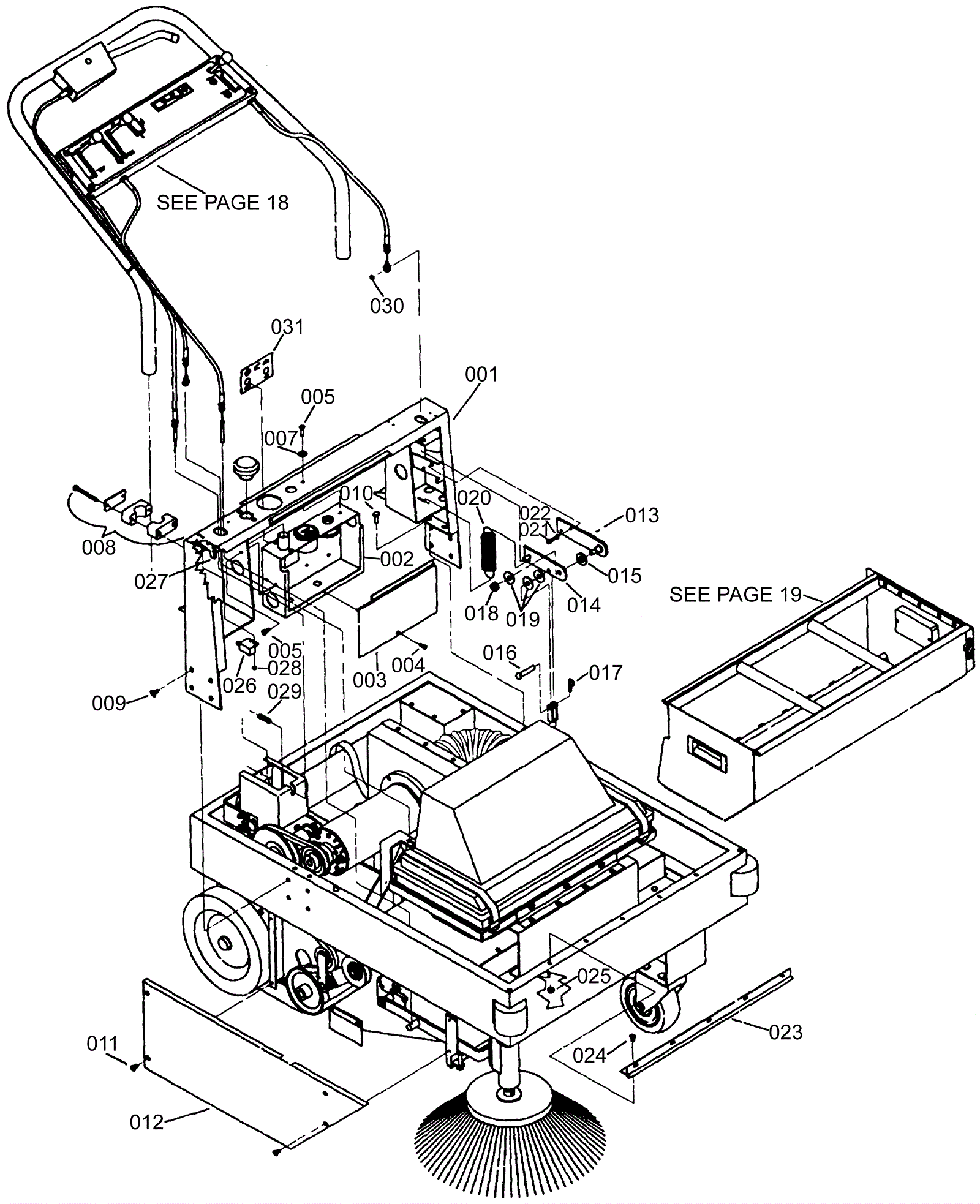

KS35-HM350001 Handle Assembly and Trim

#PartDescriptionPriceReqNotesAvailability
001 174-6186 Handle support weldment Call for price 1 usually ships 1-5 days
002 174-6187 Electrical box assembly $226.03 1 usually ships 1-5 days
003 174-6188 Electrical box cover Call for price 1 usually ships 1-5 days
005 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
006 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 1 ships same day
007 174-6189 Dress washer Call for price 1 usually ships 1-5 days
008 174-6190 Handle holder w/ mtg. plate Call for price 4 usually ships 1-5 days
009 999-0601 Screw 5/16-18 x 5/8 pan head phillips zinc plated $0.99 8 ships same day
010 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
011 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
012 174-6095 Right side dust cover $157.24 1 usually ships 1-5 days
013 174-6191 Pivot bar weldment Call for price 1 usually ships 1-5 days
014 174-6192 Crank arm Call for price 1 usually ships 1-5 days
015 999-0566 Washer 1/2 flat nylon $0.99 1 ships same day
016 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
017 174-0200 Cotter pin $1.20 1 usually ships 4-14 days
018 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
019 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 3 ships same day
020 174-0405 Extension spring $7.39 1 usually ships 1-5 days
021 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 2 usually ships 1-5 days
022 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
023 174-6193 Hinge cover Call for price 1 usually ships 1-5 days
024 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 5 ships same day
025 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 5 ships same day
026 174-6144 Cover open switch (OBSOLETE) Call for price 1 usually ships 4-14 days
027 174-6143 Screw 8 - 32 x 1/2 $0.97 2 usually ships 1-5 days
028 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
029 174-6194 Compression spring $4.91 1 usually ships 1-5 days
030 174-0140 Retaining ring $1.08 1 usually ships 4-14 days
031 174-6195 Fuse decal Call for price 1 usually ships 1-5 days
