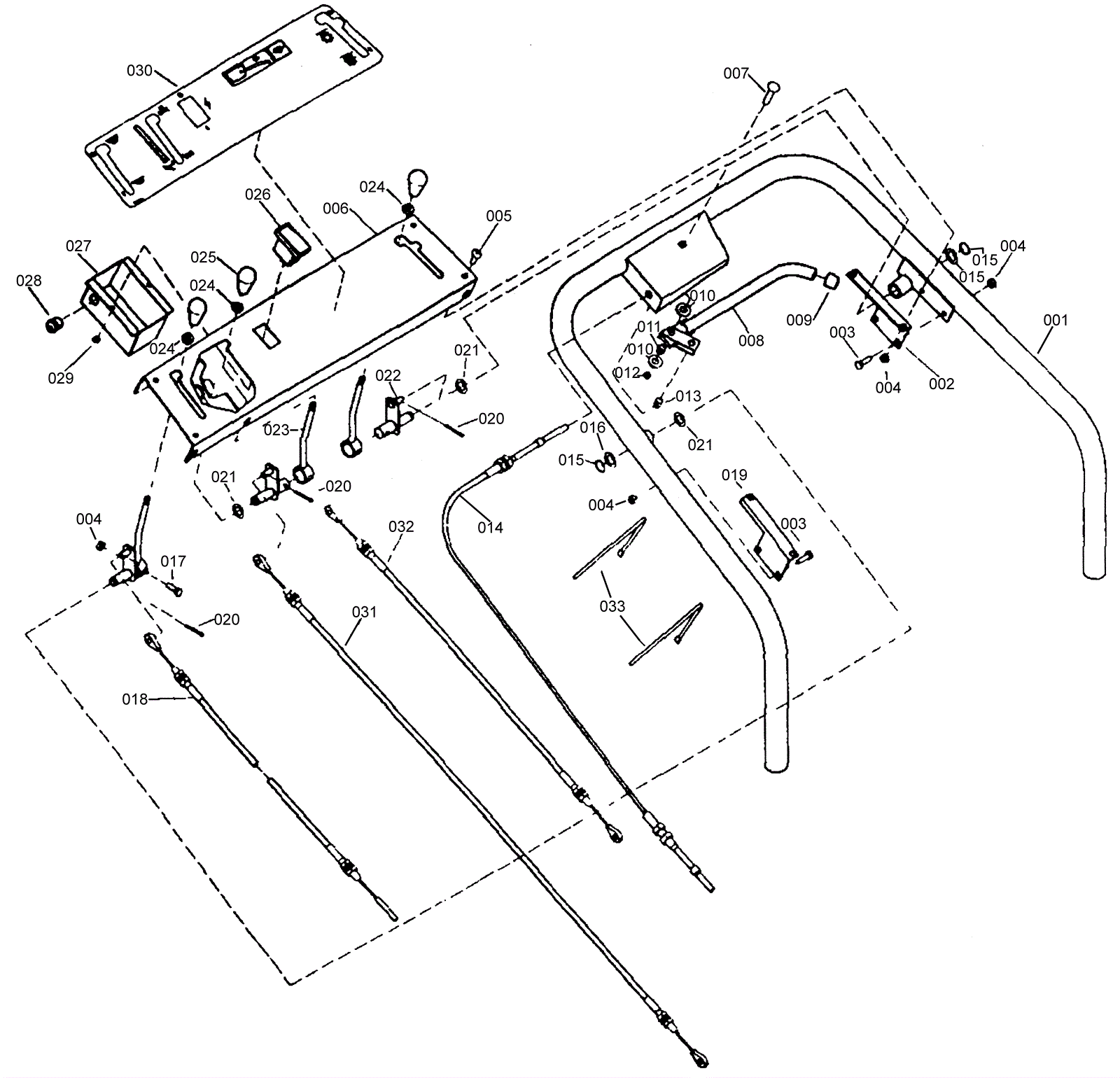

KS35-HM350001 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-6166 Handle $7.35 1 usually ships 1-5 days
002 174-6167 Dashboard bracket L.H. Call for price 1 usually ships 1-5 days
003 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 4 ships same day
004 999-0190 Nut 1/4-20 hex plain finish $0.99 11 ships same day
005 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 4 ships same day
006 174-6168 Dashboard Call for price 1 usually ships 1-5 days
007 174-6169 Bolt CR 5/16 - 18 x 1.5 s.s. $1.07 1 usually ships 1-5 days
008 174-6170 Drive handle weldment Call for price 1 usually ships 1-5 days
009 174-6171 Handle end cover Call for price 1 usually ships 1-5 days
010 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
011 174-6172 Compression spring Call for price 1 usually ships 1-5 days
012 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
013 174-6174 Drive handle swivel $5.61 1 usually ships 1-5 days
014 174-6175 Traction drive cable $91.35 1 usually ships 1-5 days
015 174-0178 1/2 inch external retaining ring $0.99 3 usually ships 4-14 days
016 999-0855 Washer 9/16 SAE flat $0.99 3 ships same day
017 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 3 ships same day
018 174-6176 Broom lift cable $42.62 1 usually ships 1-5 days
019 174-6177 Dashboard bracket R.H. Call for price 1 usually ships 1-5 days
020 997-2506 Cotter pin $0.99 3 ships same day
021 174-5159 Washer 33/64 x 1/64 wave $0.99 3 usually ships 4-14 days
022 174-6178 Lever pin weldment Call for price 3 usually ships 1-5 days
023 174-6179 Lever weldment $22.59 3 usually ships 1-5 days
024 999-0069 Nut 5/16-18 hex $0.99 3 ships same day
025 174-0387 Knob $9.31 3 usually ships 4-14 days
026 174-6180 Carling type V switch $20.66 1 usually ships 1-5 days
027 174-6181 Switch box Call for price 1 usually ships 1-5 days
028 174-5286 Cable Assembly With Plug $108.53 1 usually ships 1-5 days
029 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
030 174-6182 Dashboard decal Call for price 1 usually ships 1-5 days
031 174-6183 Shaker cable $3.44 1 usually ships 1-5 days
032 174-6184 Brush drive cable $16.82 1 usually ships 1-5 days
033 174-6185 Cable tie large $1.24 3 usually ships 1-5 days
