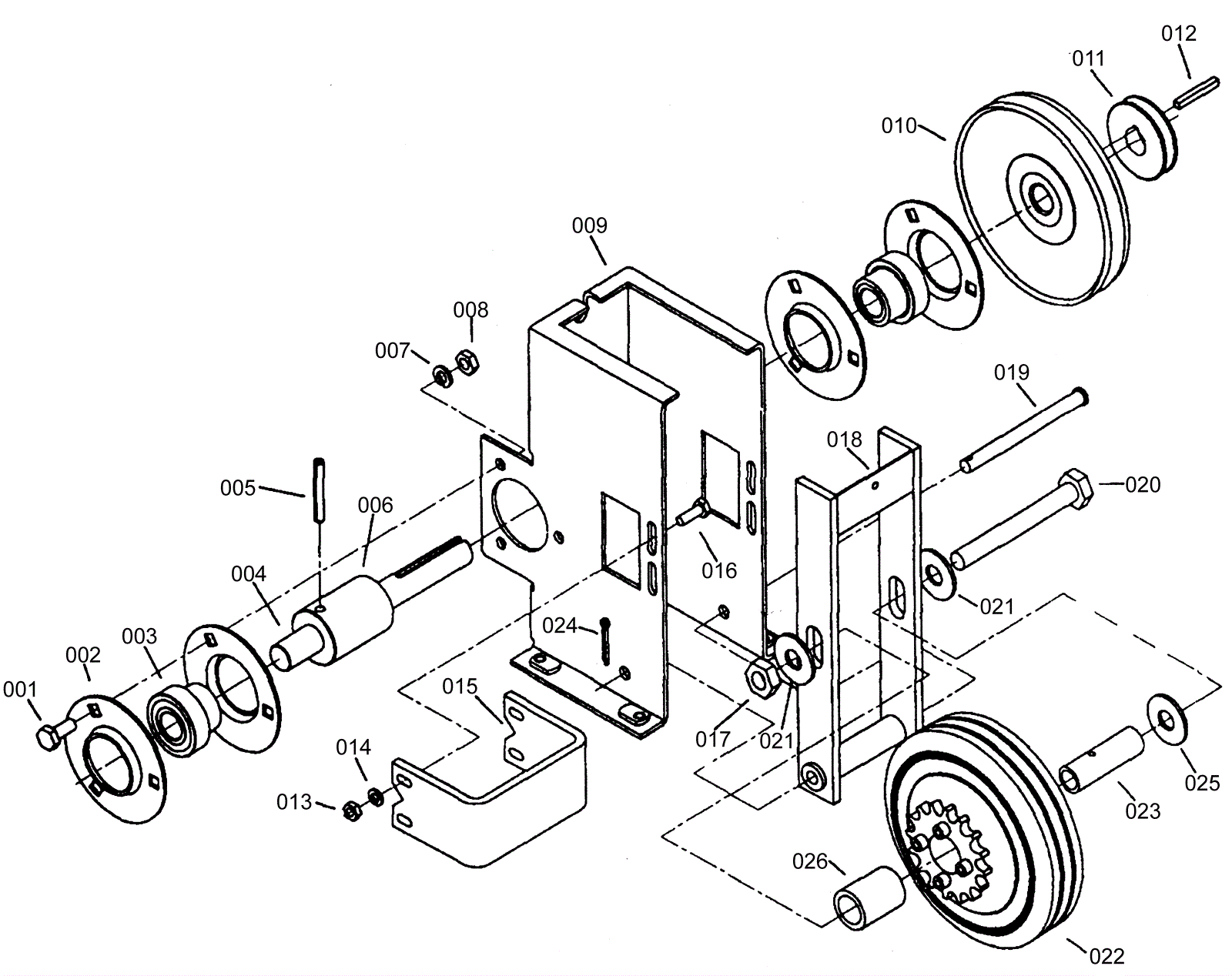

# | Part | Description | Price | Req | Notes | Availability |
001 |
174-0525
|
Bolt 5/16 -18 3/4 hex head steel plated |
$0.97
|
6 |
|
usually ships 1-5 days |
002 |
174-6148
|
Bearing flange |
$4.28
|
4 |
|
usually ships 1-5 days |
003 |
174-1291
|
Bearing with collar |
$63.30
|
2 |
|
usually ships 1-5 days |
004 |
174-6149
|
Shaft |
$27.05
|
1 |
|
usually ships 1-5 days |
005 |
174-6103
|
Rollpin .25 x 1.5 |
$1.20
|
1 |
|
usually ships 4-14 days |
006 |
174-6150
|
Traction drive roller |
$31.97
|
1 |
|
usually ships 1-5 days |
007 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
6 |
|
ships same day |
008 |
999-0069
|
Nut 5/16-18 hex |
$0.99
|
6 |
|
ships same day |
009 |
174-6151
|
Traction drive bracket |
$146.13
|
1 |
|
usually ships 1-5 days |
010 |
174-6152
|
Traction drive pulley |
$46.29
|
1 |
|
usually ships 1-5 days |
011 |
174-6153
|
3L 2 OD x 3/4 ID pulley |
$47.30
|
1 |
|
usually ships 4-14 days |
012 |
174-5717
|
Square keyway |
$1.13
|
1 |
|
usually ships 4-14 days |
013 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
4 |
|
ships same day |
014 |
999-0060
|
Washer 1/4 split lock plain finish |
$0.99
|
4 |
|
ships same day |
015 |
174-6154
|
Brake bracket |
$23.28
|
1 |
|
usually ships 1-5 days |
016 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
$0.99
|
4 |
|
ships same day |
017 |
999-1208
|
Nut 1/2-13 nylon insert lock stainless steel |
$2.53
|
1 |
|
ships same day |
018 |
174-6155
|
Pivot arm weldment |
$232.00
|
1 |
|
usually ships 1-5 days |
019 |
174-6156
|
3/8 x 4 - 1/4 clevis pin |
Call for price
|
1 |
|
usually ships 1-5 days |
020 |
174-6157
|
Bolt 1/2-13 x 4 1/4 hex head |
$1.32
|
1 |
|
usually ships 1-5 days |
021 |
174-6158
|
Washer .56 x 1.375 x .10 flat |
$0.95
|
2 |
|
usually ships 1-5 days |
022 |
174-6159
|
Clutch wheel assembly (OBSOLETE) |
Call for price
|
1 |
|
usually ships 4-14 days |
023 |
174-6160
|
Bearing tube |
$62.47
|
1 |
|
usually ships 1-5 days |
024 |
997-2506
|
Cotter pin |
$0.99
|
1 |
|
ships same day |
025 |
999-0855
|
Washer 9/16 SAE flat |
$0.99
|
1 |
|
ships same day |
026 |
174-6161
|
Bushing |
$1.07
|
1 |
|
usually ships 1-5 days |
