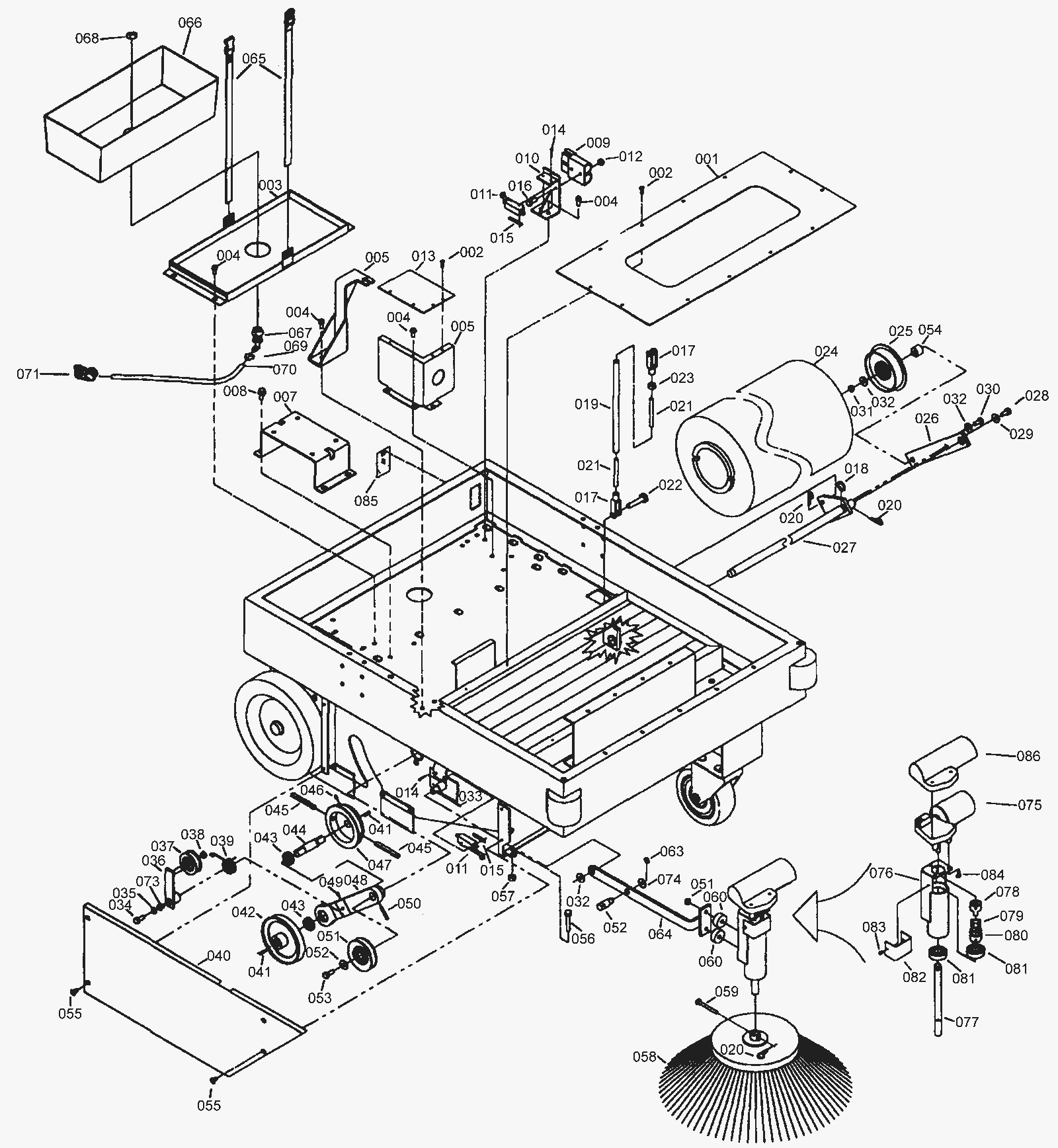

KS35-HM350001 Brooms and Hardware

#PartDescriptionPriceReqNotesAvailability
001 174-6077 Filter base cover Call for price 1 usually ships 1-5 days
002 174-5053 Screw 10 x 1/2 stainless steel $1.20 16 usually ships 1-5 days
003 174-6078 Battery tray weldment Call for price 1 usually ships 1-5 days
004 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 13 ships same day
005 174-6079 CBL hdlg. brkt. weldment Call for price 1 usually ships 1-5 days
006 174-6080 Charger plug housing Call for price 1 usually ships 1-5 days
007 174-6081 Motor mount bracket Call for price 1 usually ships 1-5 days
008 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 4 ships same day
009 174-6082 Charge connector, yellow $15.48 1 usually ships 4-14 days
010 174-5719 Charge Plug Bracket Call for price 1 usually ships 1-5 days
011 174-0406 Snap switch $18.50 2 usually ships 4-14 days
012 999-0190 Nut 1/4-20 hex plain finish $0.99 2 ships same day
013 174-6083 Charge plug housing lid Call for price 1 usually ships 1-5 days
014 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 4 ships same day
015 174-0413 Tinnerman nut $0.97 2 usually ships 1-5 days
016 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 2 ships same day
017 174-6084 Yoke $5.73 2 usually ships 1-5 days
018 174-0283 3/4 retaining ring $3.97 1 ships same day
019 174-6085 Linkage rod (OBSOLETE) $46.58 1 usually ships 4-14 days
020 997-2506 Cotter pin $0.99 4 ships same day
021 174-6086 Threaded rod $1.61 2 usually ships 1-5 days
022 174-0195 Clevis pin $0.86 1 usually ships 4-14 days
023 999-0430 Nut 5/16-18 hex jam plain finish $0.99 1 ships same day
024 174-6087 Main broom $355.57 1 usually ships 4-14 days
025 174-6088 Single flange pulley Call for price 1 usually ships 1-5 days
026 174-6089 Brush wheel arm Call for price 1 usually ships 1-5 days
027 174-6090 Major axle weldment $36.26 1 usually ships 1-5 days
028 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 1 ships same day
029 999-0328 Washer 7/16 USS flat $0.99 1 ships same day
030 174-6091 Bolt 1/2-13 hex head $1.23 1 usually ships 1-5 days
031 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 1 ships same day
032 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
033 174-0201 Cotter pin $1.20 1 usually ships 4-14 days
034 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish $0.99 1 ships same day
035 174-2129 Washer .50 x .30 flat $1.20 1 usually ships 1-5 days
036 174-6092 Idler arm weldment Call for price 1 usually ships 1-5 days
037 174-6093 Idler pulley $31.97 1 usually ships 1-5 days
038 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
039 174-6094 Idler tension spring $152.07 1 usually ships 1-5 days
040 174-6095 Right side dust cover $157.24 1 usually ships 1-5 days
041 174-6096 3/16 sq x .5 key $2.39 2 usually ships 1-5 days
042 174-6097 Brush drive pulley $27.05 1 usually ships 1-5 days
043 174-0495 Cover $16.43 2 usually ships 1-5 days
044 174-6098 Main brush drive shaft $91.94 1 usually ships 1-5 days
045 174-6099 Rollpin 3/8 x 1.25 $0.95 2 usually ships 1-5 days
046 174-5737 Screw 1/4-20 x 1/4 set $0.97 2 usually ships 1-5 days
047 174-6100 Brush drive hub $52.43 1 usually ships 1-5 days
048 174-6101 Brush arm $132.46 1 usually ships 1-5 days
049 174-6102 Screw 10-24 x 1/4 set $0.95 1 usually ships 1-5 days
050 174-6103 Rollpin .25 x 1.5 $1.20 1 usually ships 4-14 days
051 174-6104 Brush arm pulley $22.14 1 usually ships 1-5 days
052 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
053 999-0119 Bolt 3/8-16 x 3/4 hex head grade 5 zinc plated $1.01 1 ships same day
054 174-6105 Spacer Call for price 1 usually ships 4-14 days
055 999-0522 Screw 1/4-20 x 1/2 pan head phillips stainless steel $1.03 4 ships same day
057 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
058 174-6107 Side broom $102.49 1 usually ships 4-14 days
060 174-6109 Grommet Call for price 2 usually ships 1-5 days
061 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
062 174-0136 Swivel pin $7.41 1 usually ships 4-14 days
063 174-0140 Retaining ring $0.86 1 usually ships 4-14 days
064 174-6110 Side broom arm $75.14 1 usually ships 1-5 days
065 174-6111 Strap set $14.35 1 usually ships 1-5 days
066 174-6112 Battery tray $4.28 1 usually ships 1-5 days
067 174-0364 90 degree nozzle body $2.66 1 usually ships 1-5 days
068 174-0517 Nut 1/4 plastic $1.10 1 usually ships 1-5 days
069 997-2001 Hose clamp $2.42 1 ships same day
070 174-0369 18 inch silicone hose $11.98 1 usually ships 4-14 days
071 174-0370 Shut-off hose clamp $1.33 1 usually ships 4-14 days
073 174-6113 Bushing $2.98 1 usually ships 1-5 days
074 174-0528 Washer 33/64 x 7/8 x 1/16 pleated flat $0.97 1 usually ships 4-14 days
075 N/A Not available Call for price 1 12V side broom motor usually ships 3-26 days
076 174-6115 Bearing housing weldment $99.70 1 usually ships 1-5 days
077 174-6116 Side broom shaft $9.17 1 usually ships 1-5 days
078 174-6117 10mm bore hub $7.68 1 usually ships 1-5 days
079 174-6118 Spider sox $5.69 1 usually ships 1-5 days
080 174-6119 5/8 bore hub $8.38 1 usually ships 1-5 days
081 174-6120 5/8 bore bearing $11.07 2 usually ships 1-5 days
082 174-6121 Side broom cover Call for price 1 usually ships 1-5 days
083 174-5053 Screw 10 x 1/2 stainless steel $1.20 2 usually ships 1-5 days
084 999-0778 Screw M6-1 x 10mm hex head $0.99 3 ships same day
085 174-6123 12V decal $3.65 1 usually ships 1-5 days
086 174-6124 Motor cover $26.50 1 usually ships 1-5 days
