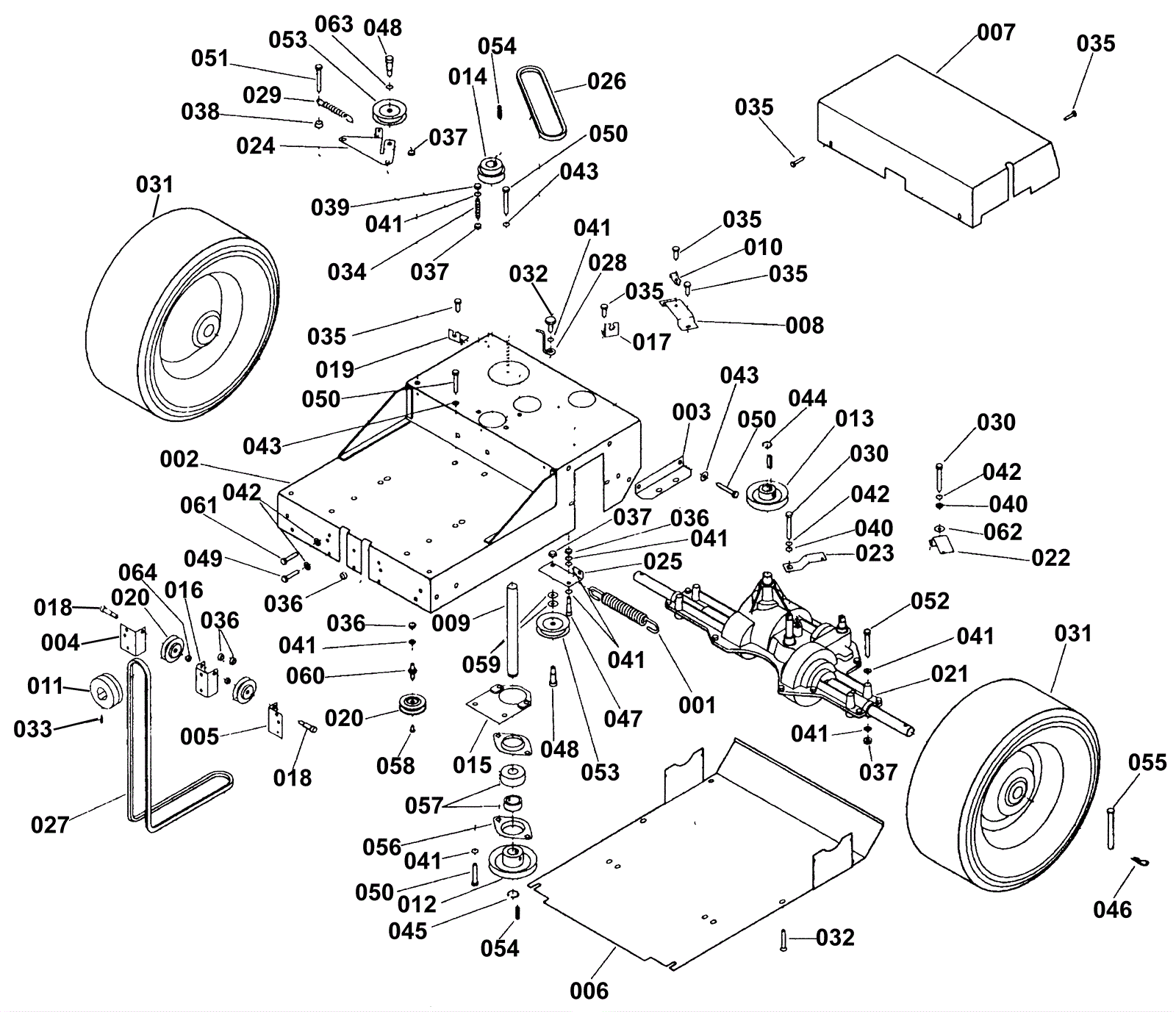

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
174-1160
|
Extension spring |
1 |
|
|
002 |
174-2812
|
Main frame |
1 |
|
|
003 |
174-2813
|
Transmission mounting bracket |
2 |
|
|
004 |
174-2814
|
Left hand bracket pulley |
1 |
|
|
005 |
174-2815
|
Right hand bracket pulley |
1 |
|
|
006 |
174-2816
|
Cover base |
1 |
|
|
007 |
174-2817
|
Top clutch cover |
1 |
|
|
008 |
174-2818
|
Cable mounting bracket |
1 |
|
|
009 |
174-2819
|
Drive shaft 3/4 |
1 |
|
|
010 |
174-2820
|
Conduit clip |
1 |
|
|
011 |
174-1774
|
Engine pulley |
1 |
|
|
012 |
N/A
|
Not available |
1 |
(Pulley) |
|
013 |
174-2822
|
Bore pulley 3 inch x 5/8 |
1 |
|
|
014 |
174-2823
|
Pulley 2 inch x 3/4 amp x 20 x 3/4 (OBSOLETE) |
1 |
|
|
015 |
174-2824
|
Bearing bracket |
1 |
|
|
016 |
174-2825
|
Center pulley bracket |
1 |
|
|
017 |
174-2825
|
Center pulley bracket |
1 |
|
|
018 |
174-2826
|
Mounting bracket shifter |
2 |
|
|
019 |
174-2827
|
Screw shoulder |
1 |
|
|
020 |
174-1011
|
Clutch cable mounting bracket |
3 |
|
|
021 |
174-2828
|
Idler pulley assembly |
1 |
|
|
022 |
174-2829
|
Transmission with brake |
1 |
|
|
023 |
174-2830
|
Brake lever |
1 |
|
|
024 |
174-2831
|
Transmission shift lever |
1 |
|
|
025 |
174-2832
|
Idler pulley bracket clutch |
1 |
|
|
026 |
174-2833
|
Tensioner engine drive |
1 |
|
|
027 |
174-2834
|
Belt 3L200 |
1 |
|
|
028 |
174-2835
|
Belt 3L520 (OBSOLETE) |
1 |
|
|
029 |
174-2836
|
Belt popper |
1 |
|
|
030 |
174-2837
|
Clutch return spring |
2 |
|
|
031 |
174-2205
|
Screw 1/4 3/4 |
2 |
|
|
032 |
174-2838
|
Wheel assembly (OBSOLETE) |
9 |
|
|
033 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
1 |
|
|
034 |
174-5782
|
Screw 1/4 20 x 1/2 |
1 |
|
|
035 |
999-0179
|
Screw 5/16-18 x 1 1/2 socket head alloy plain finish |
12 |
|
|
037 |
999-0190
|
Nut 1/4-20 hex plain finish |
7 |
|
|
038 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
1 |
|
|
039 |
999-0525
|
Nut 5/16-18 flange lock serrated zinc plated |
1 |
|
|
040 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
|
|
041 |
999-0016
|
Washer 1/4 flat plain finish |
15 |
|
|
042 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
043 |
999-0028
|
Washer 5/16 split lock plain finish |
7 |
|
|
044 |
174-0283
|
3/4 retaining ring |
1 |
|
|
045 |
174-0283
|
3/4 retaining ring |
1 |
|
|
046 |
174-0201
|
Cotter pin |
2 |
|
|
047 |
174-5160
|
Bolt 1/4-20 x .44 x 3/8 shoulder |
1 |
|
|
048 |
999-0492
|
Bolt 3/8 x 3/4 x 5/16 shoulder socket head |
2 |
|
|
049 |
174-1377
|
Bolt 1/4-20 x 1/2 hex head #5 |
4 |
|
|
050 |
174-2408
|
Bolt 5/16-18 x 1 #5 hex head |
9 |
|
|
051 |
999-0730
|
Bolt 5/16-18 x 2 1/2 hex head grade 5 zinc plated |
1 |
|
|
052 |
174-8033
|
Bolt 3/8-16 x 1 1/4 hex head |
4 |
|
|
053 |
174-2839
|
Pulley |
2 |
|
|
054 |
174-5185
|
Square keyway |
2 |
|
|
055 |
174-2840
|
Clevis pin |
2 |
|
|
056 |
174-2841
|
Bearing flange |
4 |
|
|
057 |
174-1291
|
Bearing with collar |
2 |
|
|
059 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
060 |
174-2842
|
Pulley stud |
1 |
|
|
061 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
2 |
|
|
062 |
999-0566
|
Washer 1/2 flat nylon |
1 |
|
|
063 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
1 |
|
|
064 |
174-2843
|
Spacer |
2 |
|
|
