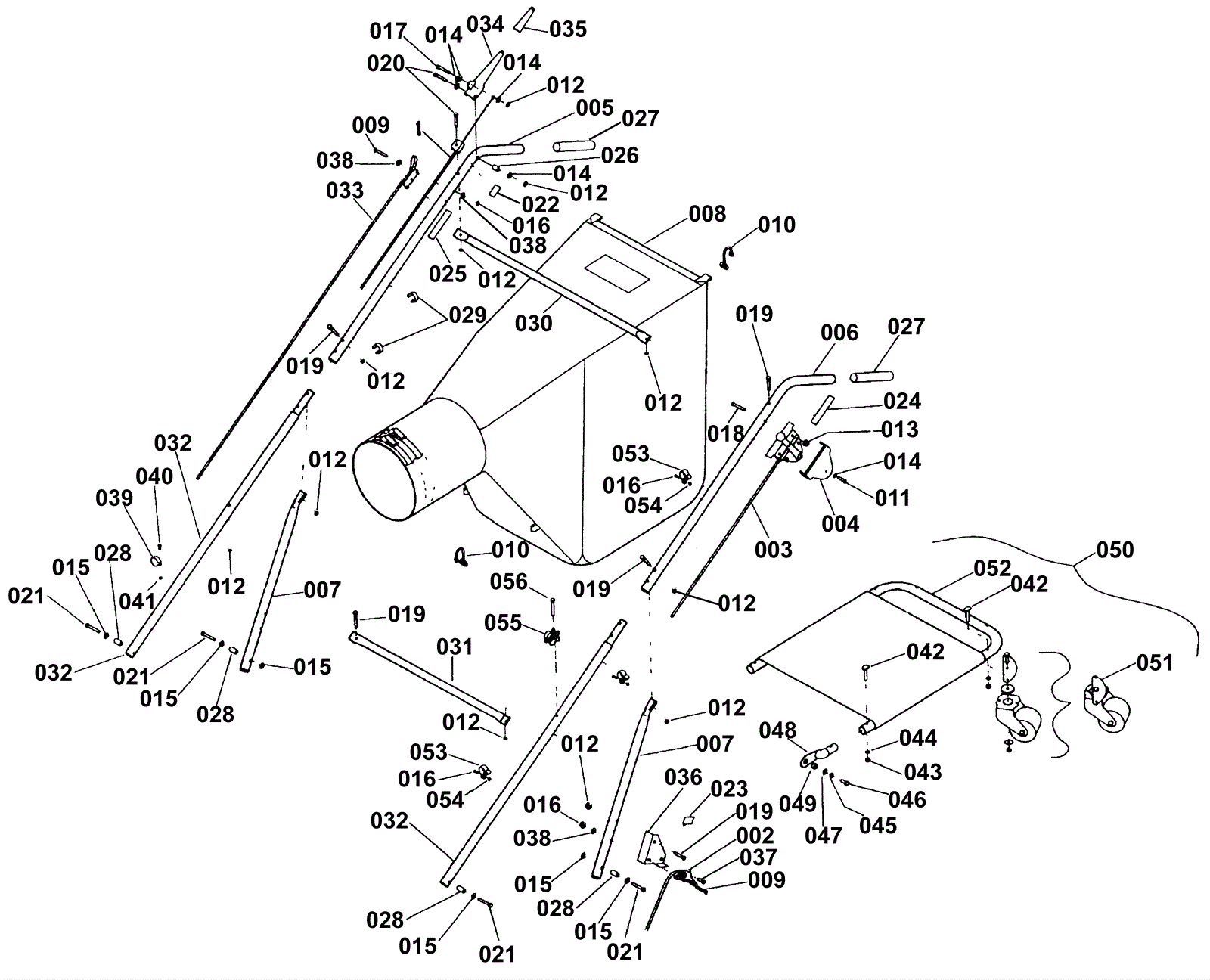

Traction Frame Assembly - 1

#PartDescription ReqNotesAvailability
001 174-2796 Clutch cable assembly 1
002 174-2797 Brake cable assembly (OBSOLETE) 1
003 N/A Not available 1 Transmission shifter cab
004 174-2799 Plastic cover shiffter 1
005 174-2800 Right upper handle 1
006 174-2801 Left upper handle 1
007 174-2802 Lower brace support 2
008a 174-1074 Vacuum dust bag (OBSOLETE) 1
008b 174-1147 Disposable vacuum bag (OBSOLETE) 1
009 999-0146 Screw 10-24 x 1 1/2 round head slotted zinc plated 3
010 174-1073 Bag hook 4
011 999-0508 Screw 1/4-20 x 1/2 pan head phillips zinc plated 1
012 999-0190 Nut 1/4-20 hex plain finish 11
013 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
014 999-0016 Washer 1/4 flat plain finish 5
015 999-0024 Washer 5/16 flat stainless steel 6
016 999-0442 Nut 10-24 nylon insert lock stainless steel 7
017 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
018 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 2
019 999-0344 Bolt 1/4-20 x 1 1/2 hex head plain finish 8
020 999-0258 Bolt 1/4-20 x 2 hex head grade 5 zinc plated 2
021 999-0109 Bolt 5/16-18 x 1 1/2 hex head grade 5 zinc plated 4
022 174-1048 Clutch engage decal 1
023 174-2803 Parking brake decal 1
024 174-2804 Shift position decal 1
025 174-2805 Throttle control decal 1
026 174-0982 Spacer 2
027 174-0864 Black handle grip 2
028 174-1061 Insert 4
029 174-1062 Snap-on clamp 3
030 174-1058 Upper cross brace 1
031 174-1059 Lower cross brace 1
032 174-2806 Middle handle 2
033 174-2807 Throttle control assembly 1
034 174-2808 Clutch lever (OBSOLETE) 1
035 174-2809 Clutch handle grip 1
036 174-2810 Brake cable mounting bracket 1
037 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 1
038 999-0006 Washer 3/16 flat zinc plated 5
039 174-0984 Clamp 1
040 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 1
041 999-0151 Nut 8-32 nylon insert lock zinc plated 1
042 174-2414 Bolt 1/4-20 x 1 1/2 contour head (OBSOLETE) 6
043 999-0190 Nut 1/4-20 hex plain finish 6
044 999-0060 Washer 1/4 split lock plain finish 6
045 999-0028 Washer 5/16 split lock plain finish 2
046 174-2408 Bolt 5/16-18 x 1 #5 hex head 2
047 174-2416 Washer special 2
048 174-1068 Tubing end cap (OBSOLETE) 2
049 174-1069 Spacer 2
050 N/A Not available 1 (Bag platform)
051 N/A Not available 1 (Caster and plate assembly)
052 174-1071 Frame and bag platform 1
053 174-2811 Clamp 1
054 999-0267 Screw 10-24 x 1/2 pan head phillips zinc 3
055 174-2787 Rope guide 1
056 999-0141 Bolt 1/4-20 x 2 1/4 hex head grade 5 zinc plated 1
