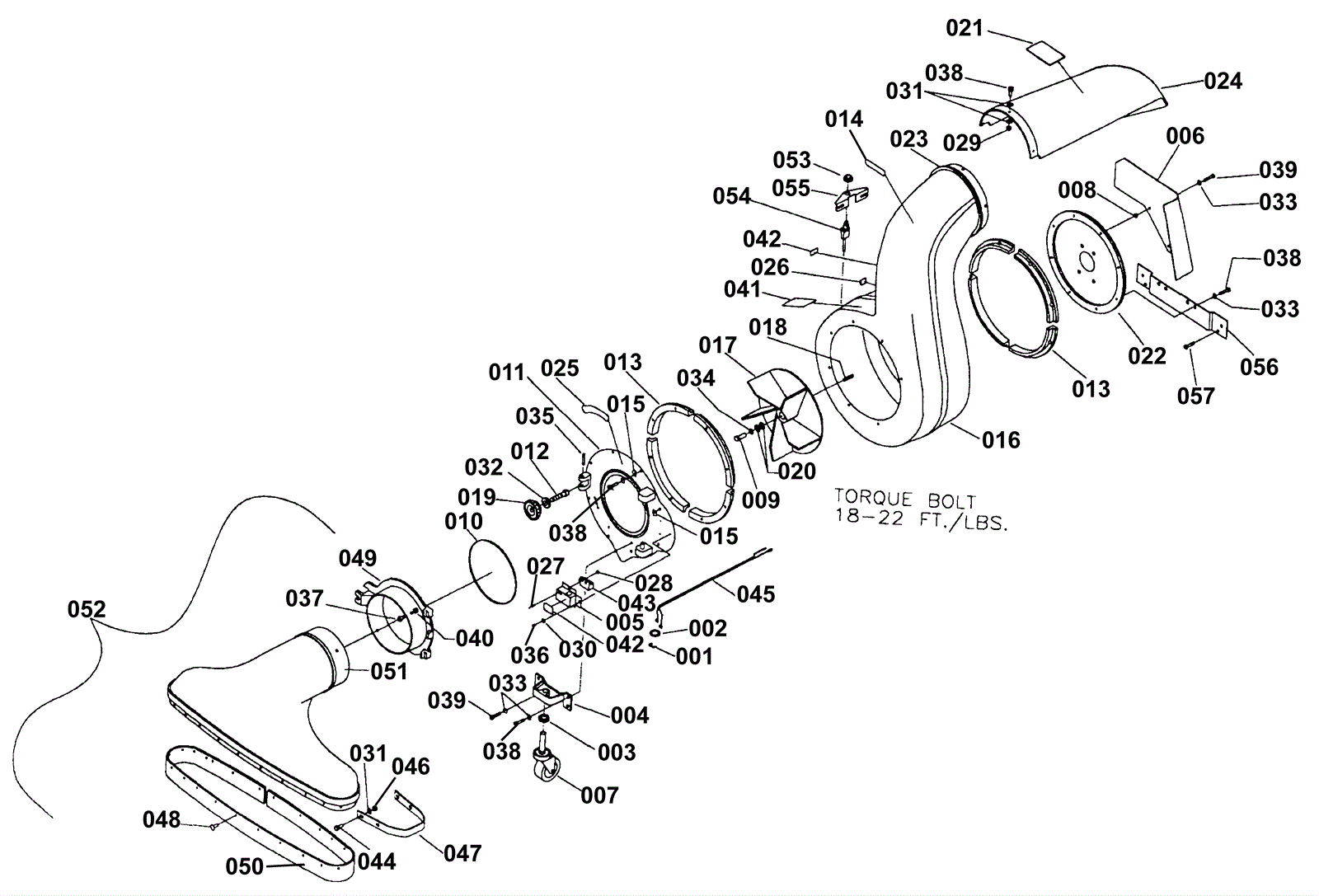

Intake Assembly

#PartDescription ReqNotesAvailability
001 174-2058 Strain relief 1
002 174-1093 Rubber grommet 1
003 174-2409 Nut 3/4 jam 1
004 N/A Not available 1 (Caster bracket)
005 174-1094 Switch bracket 1
006 174-1095 Heat shield 1
007 N/A Not available 1 (Caster wheel)
008 174-1096 Spacer 2
009 999-0043 Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated 1
010 174-1097 O-ring gasket 1
011 174-1098 Front plate 1
012 174-1099 Pivot bolt 1
013 174-1100 Anti-wrap segment (OBSOLETE) 8
014 174-1111 Spin Pak decal 1
015 174-1112 Cable clip (OBSOLETE) 2
016 174-1113 Housing assembly (OBSOLETE) 1
017 174-1114 Fan wheel with 1 inch bore (OBSOLETE) 1
018 174-1082 Square keyway 1
019 174-1115 Adjusting knob 1
020 174-5343 Area washer 2
021 174-1116 Caution decal 1
022 174-1117 Back plate and gasket 1
023 174-1118 Retaining ring 1
024 174-1119 Spin Pak deflector (OBSOLETE) 1
025 174-1120 Warning decal 1
026 174-1121 Cord clip 1
027 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated 2
028 999-0151 Nut 8-32 nylon insert lock zinc plated 2
029 999-0190 Nut 1/4-20 hex plain finish 4
030 999-0006 Washer 3/16 flat zinc plated 3
031 999-0016 Washer 1/4 flat plain finish 16
032 999-0187 Washer 1/2 flat plain finish 1
033 999-0060 Washer 1/4 split lock plain finish 18
034 174-5344 Washer 7/16 belleville 1
035 174-1122 Spring pin 1
036 999-0817 Screw 10-24 x 5/8 round head zinc plated 3
037 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
038 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 14
039 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4
040 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
041 174-1049 Warning decal 1
042 174-1051 Safety interlock decal 2
043 174-0430 Switch 1
044 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated 8
045A 174-1124 Wire lead (Briggs) 1
045B 174-1125 Wire lead (Kohler) 1
045C 174-1126 Wire lead (Honda) 1
046 999-0152 Nut 1/4-20 nylon insert lock zinc plated 8
047 174-1127 Guard (OBSOLETE) 2
048 198-0002 Fastener 15
049 174-1128 Collar 1
050A 174-1129 Skirt (24 inch intake) 1
050B 174-1130 Skirt (30 inch intake) (OBSOLETE) 1
050C 174-1131 Skirt (36 inch intake) (OBSOLETE) 1
051A 174-1132 Intake housing 1
051B 174-1133 Intake housing 1
051c 174-1137 36 inch intake housing (OBSOLETE) 1
052A 174-1135 24 inch intake 1
052B 174-1136 30 inch intake (OBSOLETE) 1
052C 174-1137 36 inch intake housing (OBSOLETE) 1
053 174-1045 Switch nut 1
054A 174-1138 Safety switch (Briggs) (OBSOLETE) 1
054B 174-1044 Safety switch (Honda) 1
054C 174-1139 Safety switch (Kohler) (OBSOLETE) 1
055 174-1140 Safety switch bracket 1
056 174-1141 Housing support 1
057 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 4
