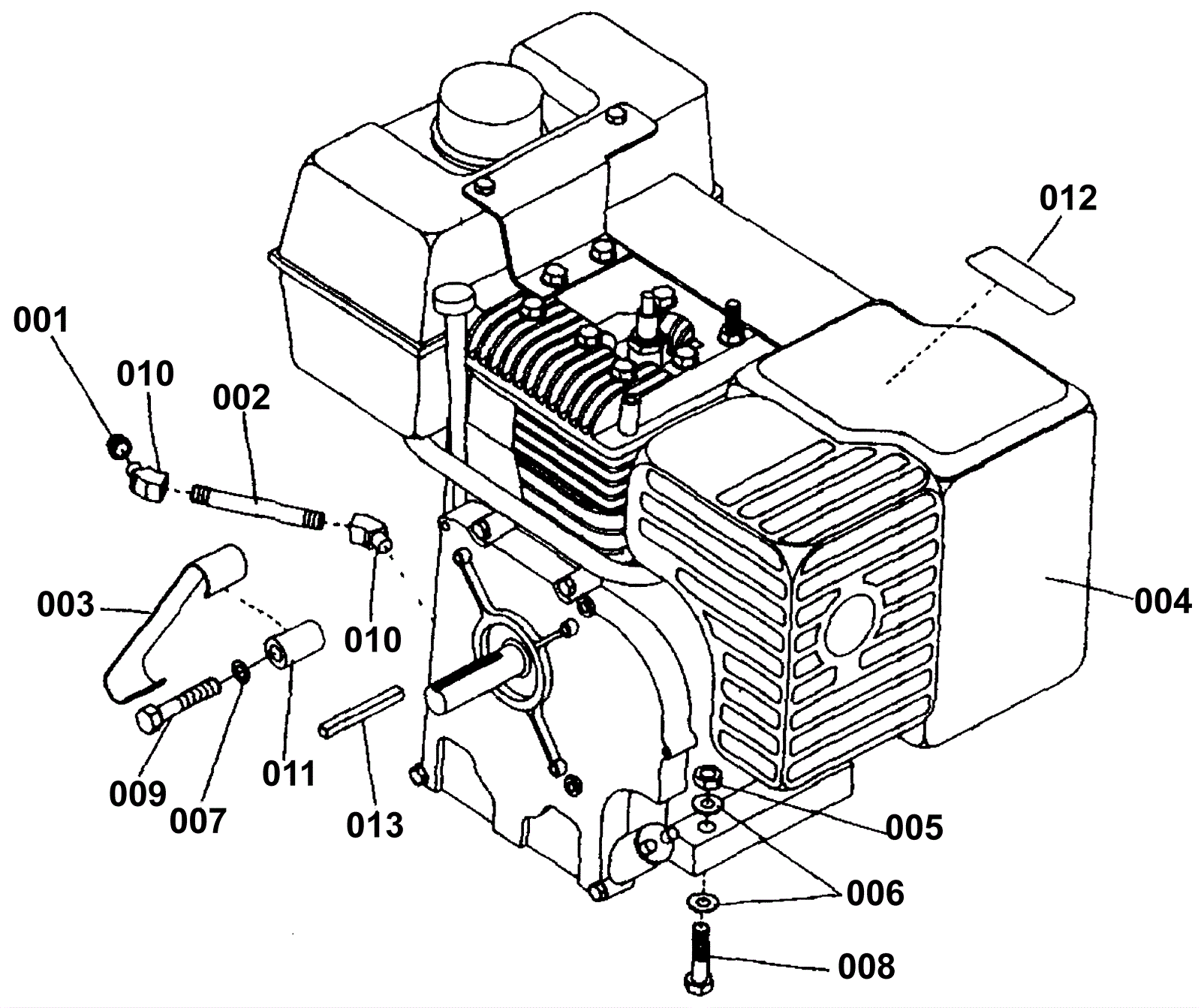

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
174-2793
|
Brass cap 3/8 |
1 |
|
|
002 |
174-2794
|
Brass pipe 3/8 npt x 4 |
1 |
|
|
003 |
174-1769
|
Finger guard |
2 |
|
|
004 |
174-1515
|
8 Horse power briggs and stratton engine |
1 |
|
|
005 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
|
|
006 |
999-0024
|
Washer 5/16 flat stainless steel |
8 |
|
|
007 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
008 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
4 |
|
|
009 |
174-1079
|
Bolt 3/8-16 x 2 1/4 hex head grade 5 |
4 |
|
|
010 |
174-2795
|
45 Degree brass street 3/8 npt |
2 |
|
|
011 |
174-1091
|
Spacer |
4 |
|
|
012 |
174-1081
|
Muffler decal |
1 |
|
|
013 |
174-1082
|
Square keyway |
1 |
|
|
N/S |
174-1774
|
Engine pulley |
1 |
|
|
N/S |
174-2787
|
Rope guide |
1 |
|
|
