| # | Part | Description |
Req | Notes | Availability |
|---|

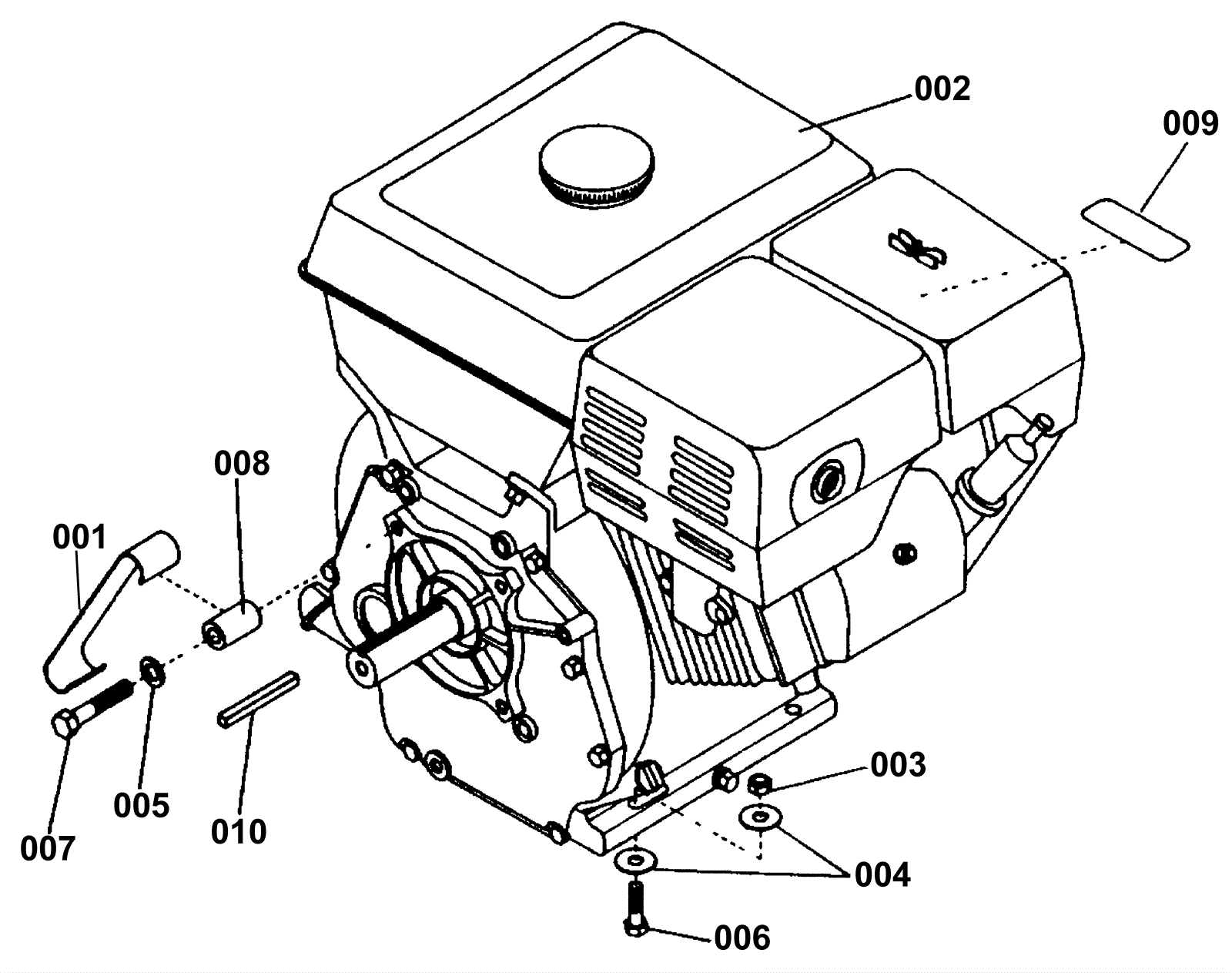

001 |
174-1769
|
Finger guard |
2 |
|
|
002 |
174-1077
|
8 HP Honda engine (OBSOLETE) |
8 |
|
|
003 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
4 |
|
|
004 |
999-0328
|
Washer 7/16 USS flat |
8 |
|
|
005 |
999-0034
|
Washer 3/8 split lock plain finish |
4 |
|
|
006 |
999-0542
|
Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated |
4 |
|
|
007 |
174-1079
|
Bolt 3/8-16 x 2 1/4 hex head grade 5 |
4 |
|
|
008 |
174-1080
|
Spacer |
4 |
|
|
009 |
174-1081
|
Muffler decal |
1 |
|
|
010 |
174-1082
|
Square keyway |
1 |
|
|
N/S |
174-2787
|
Rope guide |
1 |
|
|
N/S |
174-1774
|
Engine pulley |
1 |
|
|
