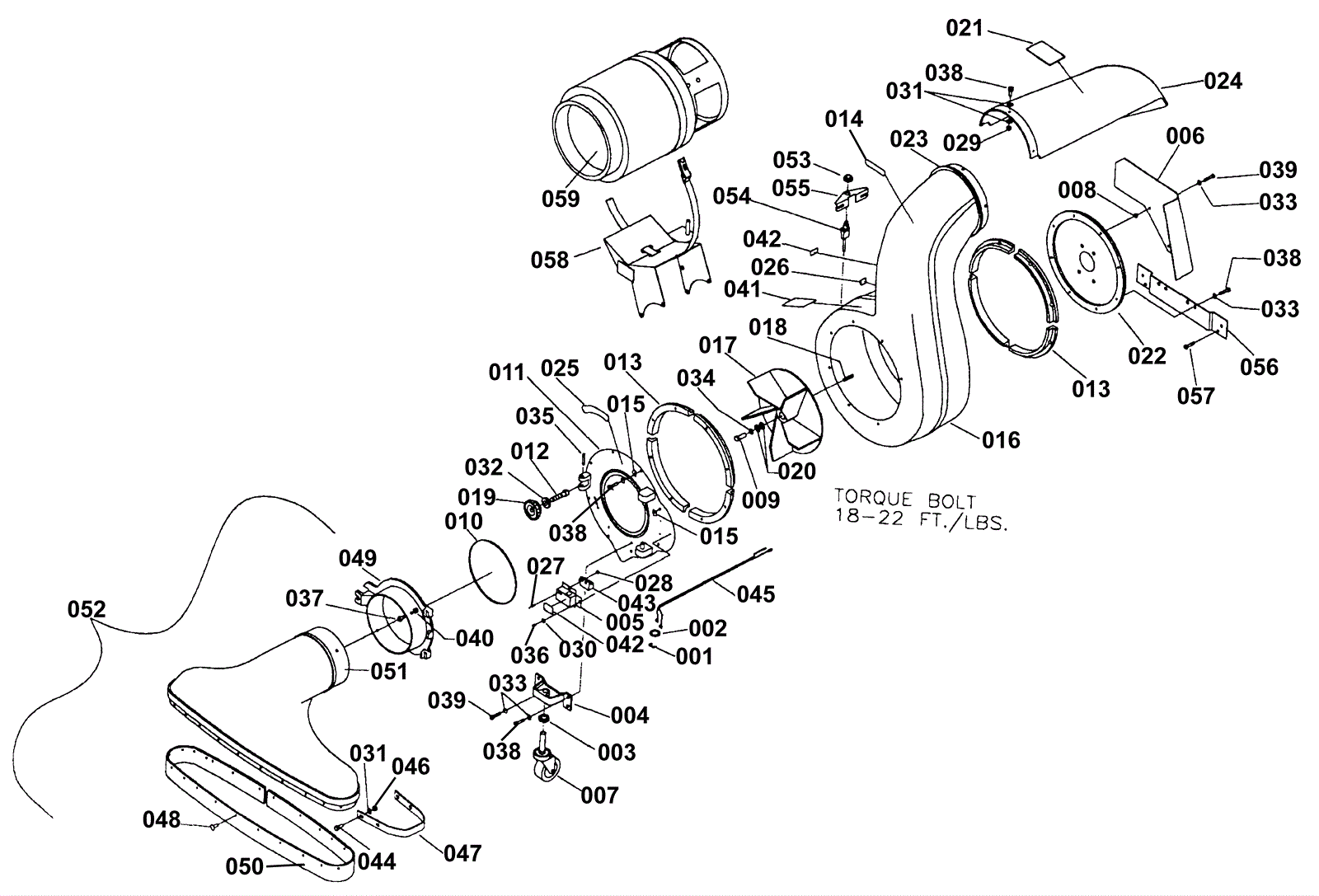

PRKRVAC-35 PV9908KLP Intake Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-1778 Strain relief $0.90 1 usually ships 1-5 days
002 174-1093 Rubber grommet $1.10 1 usually ships 1-5 days
003 174-2409 Nut 3/4 jam $4.06 1 usually ships 3-9 days
004 N/A Not available Call for price 1 (Caster bracket) usually ships 3-26 days
005 174-1094 Switch bracket Call for price 1 usually ships 1-5 days
006 174-1779 Heat shield Call for price 1 usually ships 1-5 days
007 N/A Not available Call for price 1 (Caster wheel) usually ships 3-26 days
008 174-1096 Spacer $0.95 2 usually ships 1-5 days
009 999-0043 Bolt 7/16-20 x 1 1/4 hex head grade 5 zinc plated $1.14 1 ships same day
010 174-1097 O-ring gasket Call for price 1 usually ships 1-5 days
011 174-1098 Front plate Call for price 1 usually ships 1-5 days
012 174-1099 Pivot bolt Call for price 1 usually ships 1-5 days
013 174-1100 Anti-wrap segment (OBSOLETE) Call for price 8 usually ships 4-14 days
014 174-1111 Spin Pak decal Call for price 1 usually ships 1-5 days
015 174-1112 Cable clip $1.39 2 usually ships 1-5 days
016 174-1113 Housing assembly (OBSOLETE) $263.03 1 usually ships 4-14 days
017 174-1114 Fan wheel with 1 inch bore $149.85 1 usually ships 4-14 days
018 174-1082 Square keyway Call for price 1 usually ships 1-5 days
019 174-1115 Adjusting knob $4.30 1 usually ships 1-5 days
020 174-5343 Area washer Call for price 2 usually ships 1-5 days
021 174-1116 Caution decal Call for price 1 usually ships 1-5 days
022 174-1780 Back plate and gasket Call for price 1 usually ships 1-5 days
023 174-1118 Retaining ring Call for price 1 usually ships 1-5 days
024 174-1119 Spin Pak deflector (OBSOLETE) $44.12 1 usually ships 4-14 days
025 174-1120 Warning decal Call for price 1 usually ships 1-5 days
026 174-1121 Cord clip $1.82 1 usually ships 4-14 days
027 999-0410 Screw 8-32 x 5/8 pan head slotted zinc plated $0.99 2 ships same day
028 999-0150 Washer #8 medium split lock $0.99 2 ships same day
029 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
030 999-0006 Washer 3/16 flat zinc plated $0.99 3 ships same day
031 999-0016 Washer 1/4 flat plain finish $0.99 20 ships same day
032 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
033 999-0060 Washer 1/4 split lock plain finish $0.99 18 ships same day
034 999-0044 Washer 7/16 medium split lock $0.99 1 ships same day
035 174-1122 Spring pin $0.95 1 usually ships 1-5 days
036 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 3 ships same day
037 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
039 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
040 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
041 174-1049 Warning decal $0.90 1 usually ships 1-5 days
042 174-1051 Safety interlock decal $0.90 1 usually ships 1-5 days
043 174-0430 Switch $7.34 1 usually ships 1-5 days
044 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 12 ships same day
045 174-1125 Wire lead (Kohler) Call for price 1 usually ships 1-5 days
046 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
047 174-1127 Guard (OBSOLETE) $5.96 2 usually ships 4-14 days
048 198-0002 Fastener $0.90 15 usually ships 4-14 days
049 174-1128 Collar Call for price 1 usually ships 4-14 days
050a 174-1129 Skirt (24 inch intake) Call for price 1 usually ships 1-5 days
050b 174-1130 Skirt (30 inch intake) (OBSOLETE) $163.10 1 usually ships 4-14 days
050c 174-1131 Skirt (36 inch intake) (OBSOLETE) Call for price 1 usually ships 4-14 days
051a 174-1132 Intake housing Call for price 1 usually ships 1-5 days
051b 174-1133 Intake housing Call for price 1 usually ships 1-5 days
051c 174-1137 36 inch intake housing Call for price 1 usually ships 1-5 days
052 174-1136 30 inch intake (OBSOLETE) $597.40 1 usually ships 3-9 days
053 174-1045 Switch nut Call for price 1 usually ships 1-5 days
054a 174-1138 Safety switch (Briggs) (OBSOLETE) Call for price 1 usually ships 4-14 days
054b 174-1044 Safety switch (Honda) Call for price 1 usually ships 1-5 days
054c 174-1139 Safety switch (Kohler) (OBSOLETE) Call for price 1 usually ships 3-9 days
055 174-1140 Safety switch bracket $43.07 1 usually ships 1-5 days
056 174-1141 Housing support Call for price 1 usually ships 1-5 days
057 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
058 174-1782 Tank bracket assembly Call for price 1 usually ships 1-5 days
059 174-1783 Tank $261.64 1 usually ships 1-5 days
