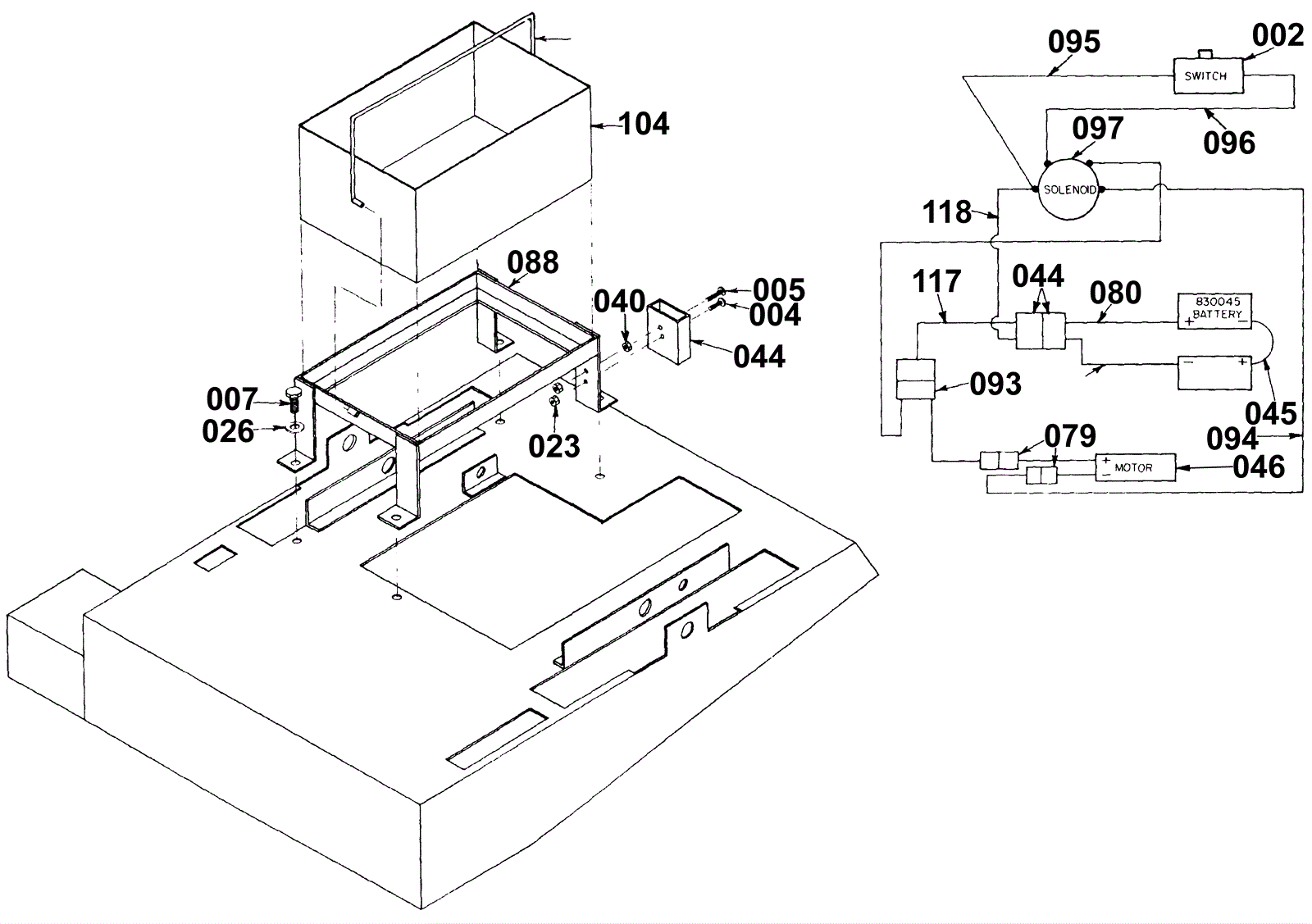

747B Electrical System and Battery Housing Assembly

#PartDescriptionPriceReqNotesAvailability
002 174-2152 Switch Assembly $58.90 1 usually ships 4-14 days
004 999-0656 Screw #6-32 x 7/8 pan head phillips zinc plated $0.99 3 ships same day
005 174-2135 MC Screw 6 32 x .15 $0.97 1 usually ships 1-5 days
007 999-0396 Screw 1/4-20 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
023 174-2136 Nut 6-32 flange wizz $0.97 4 usually ships 1-5 days
026 999-0060 Washer 1/4 split lock plain finish $0.99 6 ships same day
040 217-0111 Nut 10-24 hex (OBSOLETE) $1.85 1 usually ships 1-5 days
044 991-2102 50amp charger plug SB50 only (red) $11.16 2 ships same day
046 174-2229 Drive Motor .5HP 24V DC $1,056.10 1 usually ships 4-14 days
079 174-2142 Connector $13.09 2 usually ships 1-5 days
080 174-2143 Cable Assembly Positive $44.27 1 usually ships 4-14 days
088 174-2139 Battery Tray $124.93 1 usually ships 1-5 days
093 174-2146 Lead Assembly $44.18 1 usually ships 1-5 days
094 174-2145 Lead Assembly Black $28.26 1 usually ships 1-5 days
095 174-1394 Lead assembly white $1.18 1 usually ships 1-5 days
096 174-1395 Lead assembly white Call for price 1 usually ships 1-5 days
097 174-0209 24V 50amp contactor $87.71 1 usually ships 4-14 days
102 174-2144 Battery Lead Assembly $26.60 1 usually ships 4-14 days
104 174-2140 Battery Box $103.98 1 usually ships 1-5 days
105 174-2141 Battery Strap $16.00 1 usually ships 1-5 days
117 174-2150 Wire Lead Assembly 8 GA $16.48 1 usually ships 1-5 days
118 174-2153 Wire Assembly Black 8 GA $25.07 1 usually ships 1-5 days
