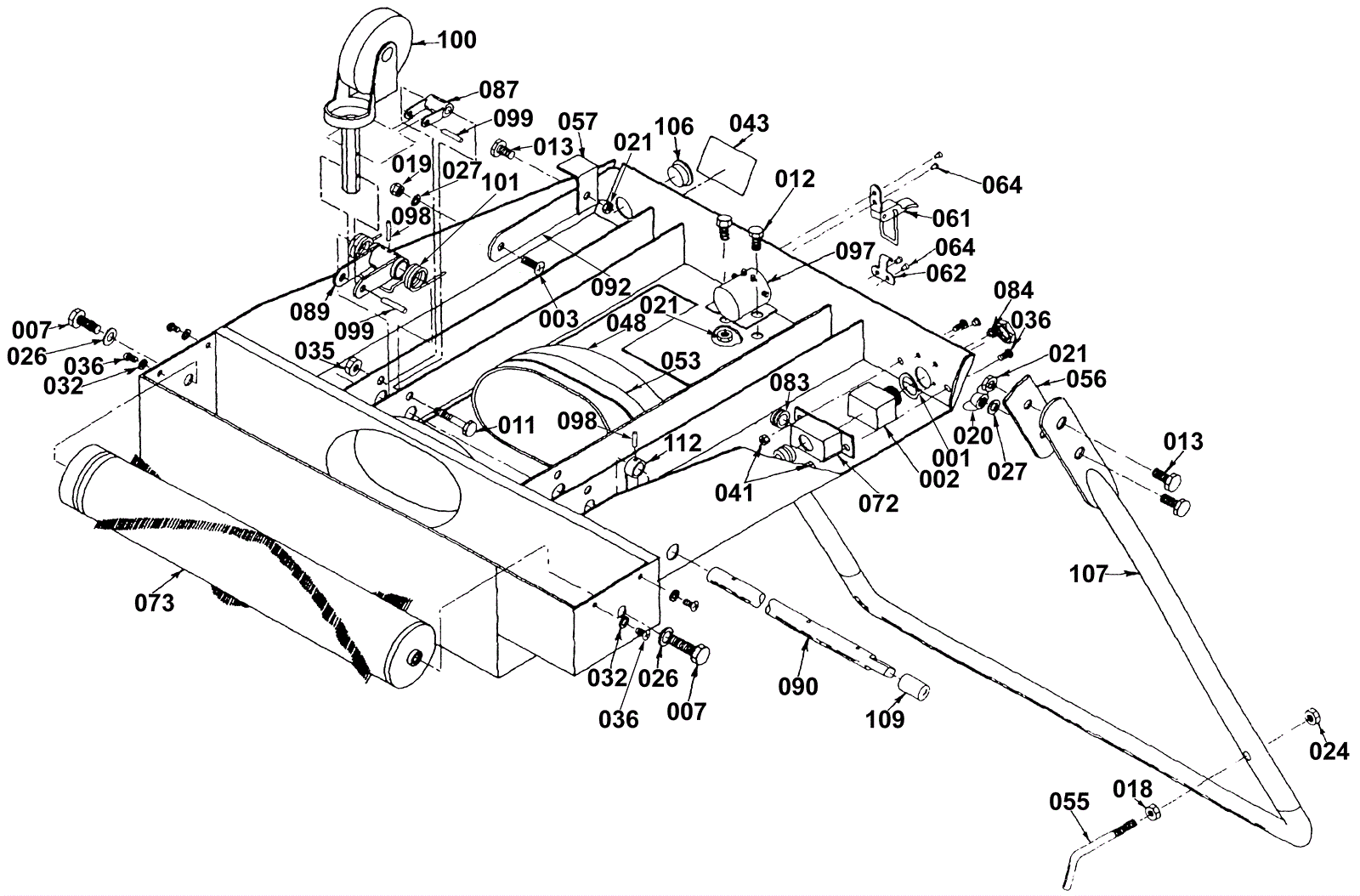

747B Brush Housing Assembly

#PartDescriptionPriceReqNotesAvailability
002 174-2152 Switch Assembly $65.44 1 usually ships 12-16 days
003 174-1391 Screw 5/16-18 x 1/2 mc $1.08 4 usually ships 12-16 days
007 999-0396 Screw 1/4-20 x 1/2 pan head slotted stainless steel $0.99 6 ships same day
011 174-5771 Bolt 1/4 20 x 2 1/4 hex head $1.05 2 usually ships 1-5 days
012 999-1450 Bolt 5/16-18 x 5/8 hex head stainless steel $0.99 2 usually ships 1-5 days
013 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $1.08 10 usually ships 1-5 days
019 174-2155 Nut 5/16-18 acorn brass $1.08 2 usually ships 1-5 days
020 999-0133 Nut 5/16-18 wing zinc plated $0.99 2 ships same day
021 175-5055 Brush/pad lobed friction hub (OBSOLETE) $172.26 16 usually ships 1-5 days
027 999-0028 Washer 5/16 split lock plain finish $0.99 10 ships same day
032 999-0089 Washer #10 internal star lock zinc plated $0.99 11 ships same day
036 999-0817 Screw 10-24 x 5/8 round head zinc plated $0.99 6 ships same day
041 174-3171 Nut 10-24 flange wizz $1.33 11 usually ships 12-16 days
043 174-5775 Serial nameplate decal $1.38 1 usually ships 1-5 days
048 174-2160 Blower Hose $101.19 1 usually ships 1-5 days
053 174-2161 Hose Clamp $10.67 2 usually ships 1-5 days
056 174-2162 Handle Bracket $78.83 1 usually ships 1-5 days
057 174-2163 Bracket Hold Down $23.64 2 usually ships 1-5 days
061 174-2132 Latch $26.33 2 usually ships 12-16 days
062 174-2133 Latch keeper $7.05 2 usually ships 1-5 days
072 174-2167 Box Switch $28.81 1 usually ships 1-5 days
073 174-2168 Brush $430.88 1 usually ships 12-16 days
083 174-2171 Grommet $1.03 2 usually ships 1-5 days
084 174-2172 Heyco Plug Not Shown Call for price 2 usually ships 1-5 days
087 174-2173 Caster Pivot $40.44 2 usually ships 1-5 days
089 174-1392 Caster bracket $66.31 1 usually ships 1-5 days
092 174-1393 Shaft $54.78 1 usually ships 1-5 days
092 174-2176 Bracket Handle $72.28 1 usually ships 1-5 days
097 174-0209 24V 50amp contactor $97.46 1 usually ships 12-16 days
098 174-2177 Roll Pin 1/4 x 7/8 $1.03 3 usually ships 1-5 days
099 174-2178 Roll Pin 1/4 x 1 1/4 Call for price 4 usually ships 1-5 days
100 174-2179 Swivel Caster $25.61 2 usually ships 12-16 days
101 174-2180 Spring $8.25 2 usually ships 1-5 days
106 174-2182 Plug Hose $1.03 2 usually ships 1-5 days
107 174-2183 Handle $212.61 1 usually ships 1-5 days
109 174-2185 End cap $1.03 1 usually ships 1-5 days
112 999-0326 Screw 1/4-20 x 3/4 flat head phillips zinc plated $0.99 1 ships same day
