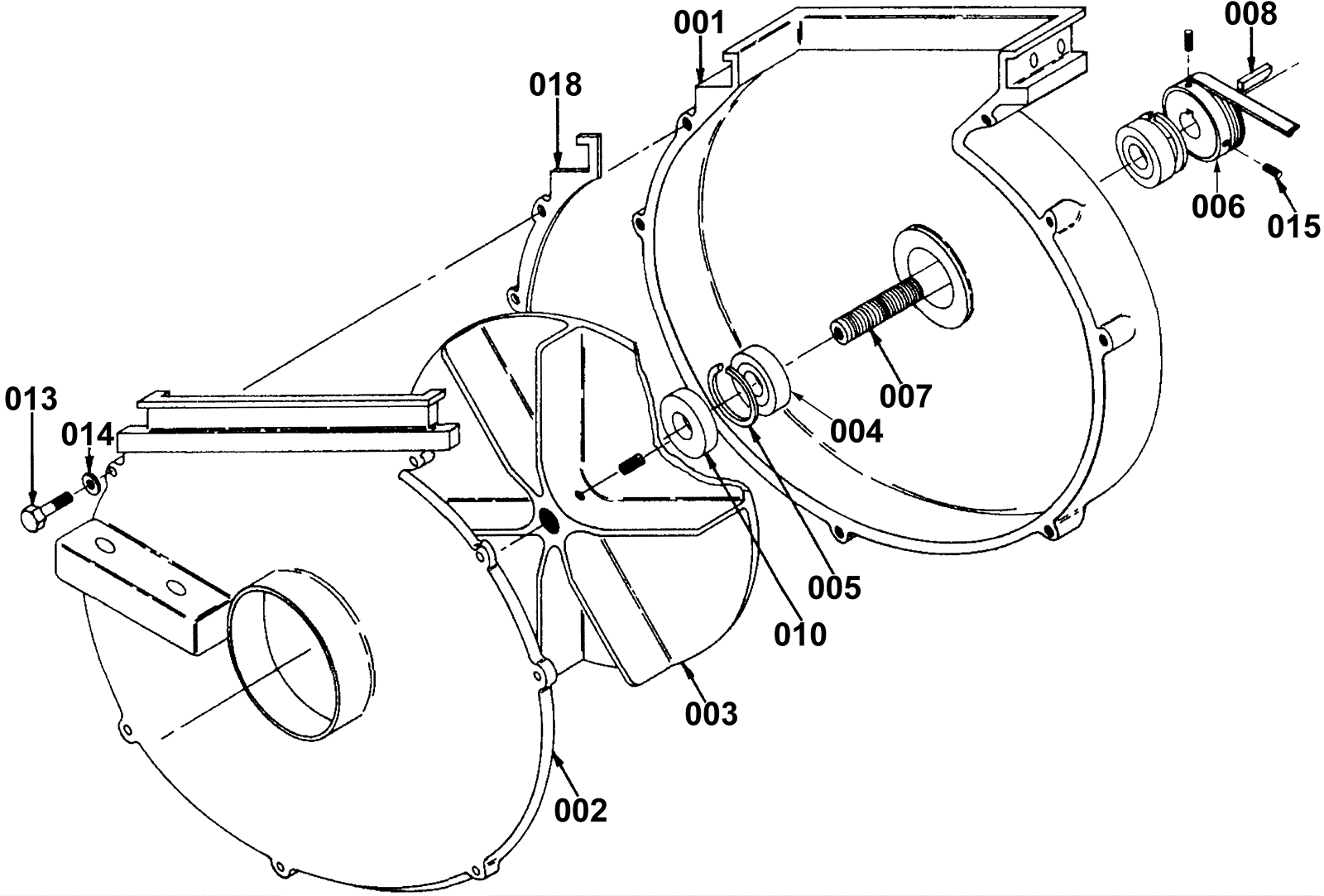

747B Fan Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-2196 Bottom Housing Fan $352.02 1 usually ships 1-5 days
002 174-2197 Top Housing Fan $216.09 1 usually ships 1-5 days
003 174-2198 Fan $169.16 1 usually ships 12-16 days
004 174-2199 Bearing Ball $21.93 2 usually ships 12-16 days
005 174-2200 Retaining ring $1.33 2 usually ships 12-16 days
006 174-2201 Fan Pulley $41.38 1 usually ships 1-5 days
007 174-2202 Bearing Shaft $47.09 1 usually ships 1-5 days
008 174-2203 Key $1.74 1 usually ships 1-5 days
010 174-2204 Spacer $5.15 1 usually ships 1-5 days
013 174-2205 Screw 1/4 3/4 Call for price 7 usually ships 1-5 days
014 999-0060 Washer 1/4 split lock plain finish $0.99 8 ships same day
015 174-2207 Screw 10-24 x 3/8 set $1.48 3 usually ships 1-5 days
018 174-2208 Housing Gasket $44.35 1 usually ships 1-5 days
