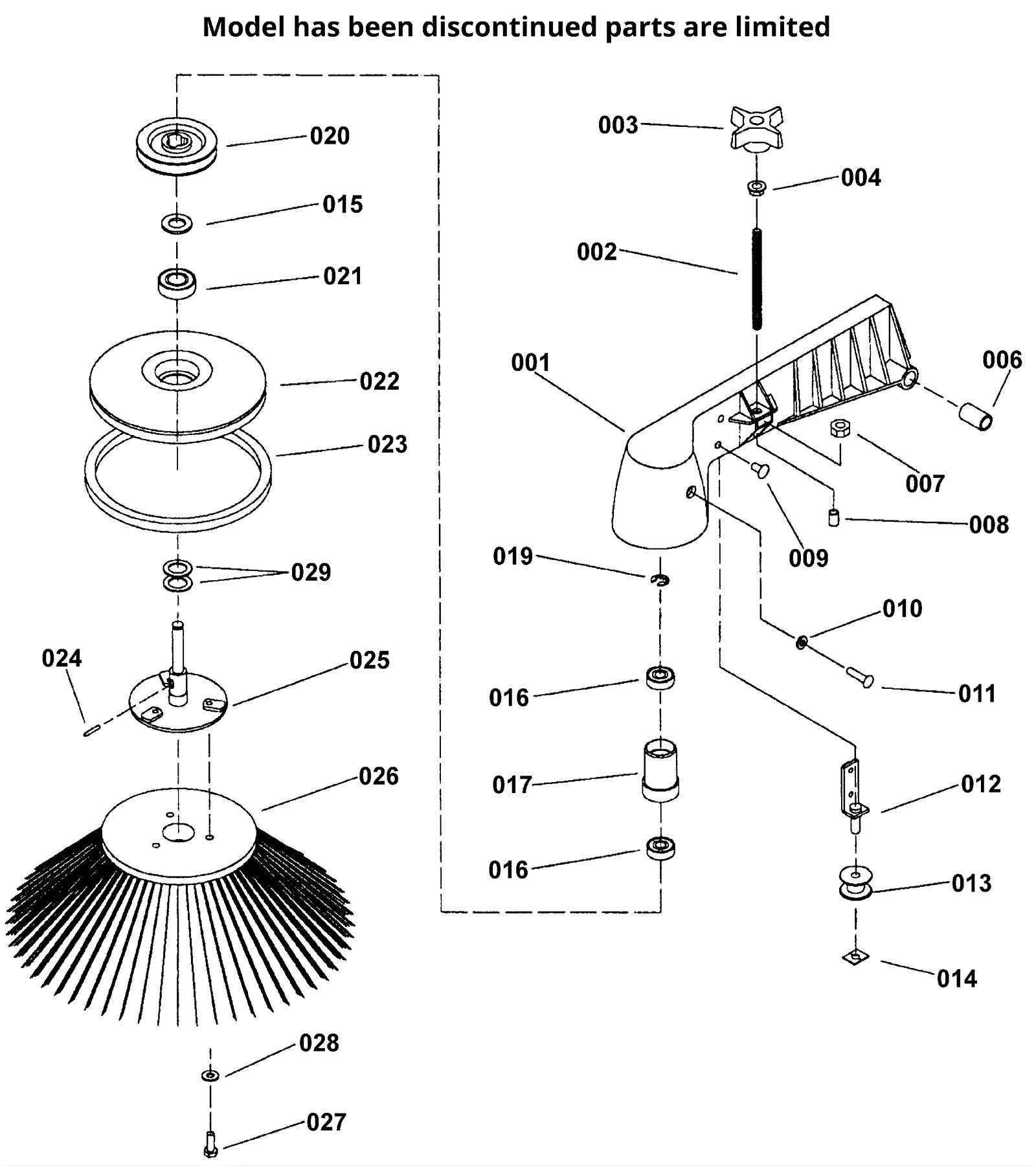

KLEEN SWEEP 27 Side Arm Assembly

#PartDescriptionPriceReqNotesAvailability
1 174-8550 Molded side arm Call for price 1 usually ships 1-5 days
2 174-8551 Threaded rod $4.78 1 usually ships 4-14 days
3 174-7023 Four arm knob 5/16-18 $2.18 1 usually ships 4-14 days
4 999-0525 Nut 5/16-18 flange lock serrated zinc plated $0.99 1 ships same day
6 174-7025 Bushing Call for price 1 usually ships 1-5 days
7 999-0069 Nut 5/16-18 hex $0.99 1 ships same day
8 174-1319 Threaded cover cap $0.95 1 usually ships 4-14 days
9 999-0113 Screw 1/4-20 x 1/2 truss head slotted $0.99 2 ships same day
10 999-0060 Washer 1/4 split lock plain finish $0.99 1 ships same day
11 174-8552 Screw 14 x 1 $0.97 7 usually ships 1-5 days
12 174-8553 Idler bracket $19.10 1 usually ships 1-5 days
13 174-8554 Idler pulley (OBSOLETE) Call for price 1 usually ships 4-14 days
14 174-8555 Shaft retainer $0.95 1 usually ships 4-14 days
15 999-0349 Washer 5/8 SAE flat $0.99 1 ships same day
16 174-8556 Bearing 6000 seal $8.46 2 usually ships 1-5 days
17 174-8557 Bearing sleeve $39.52 1 usually ships 1-5 days
19 174-0140 Retaining ring $1.08 1 usually ships 4-14 days
20 174-8558 Front pulley (OBSOLETE) Call for price 1 usually ships 1-5 days
21 174-8559 Bearing 6003 seal $3.30 1 usually ships 4-14 days
22 174-8560 Front brush cover $104.06 1 usually ships 4-14 days
23 174-8561 Rubber ring $15.31 1 usually ships 1-5 days
24 174-0772 Roll Pin $0.97 1 usually ships 1-5 days
25 174-8562 Brush plate weldment $52.43 1 usually ships 1-5 days
26 174-8418 Side brush $76.28 1 usually ships 4-14 days
27 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
28 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
29 174-0522 Washer .69 flat stainless steel $1.10 2 usually ships 4-14 days
