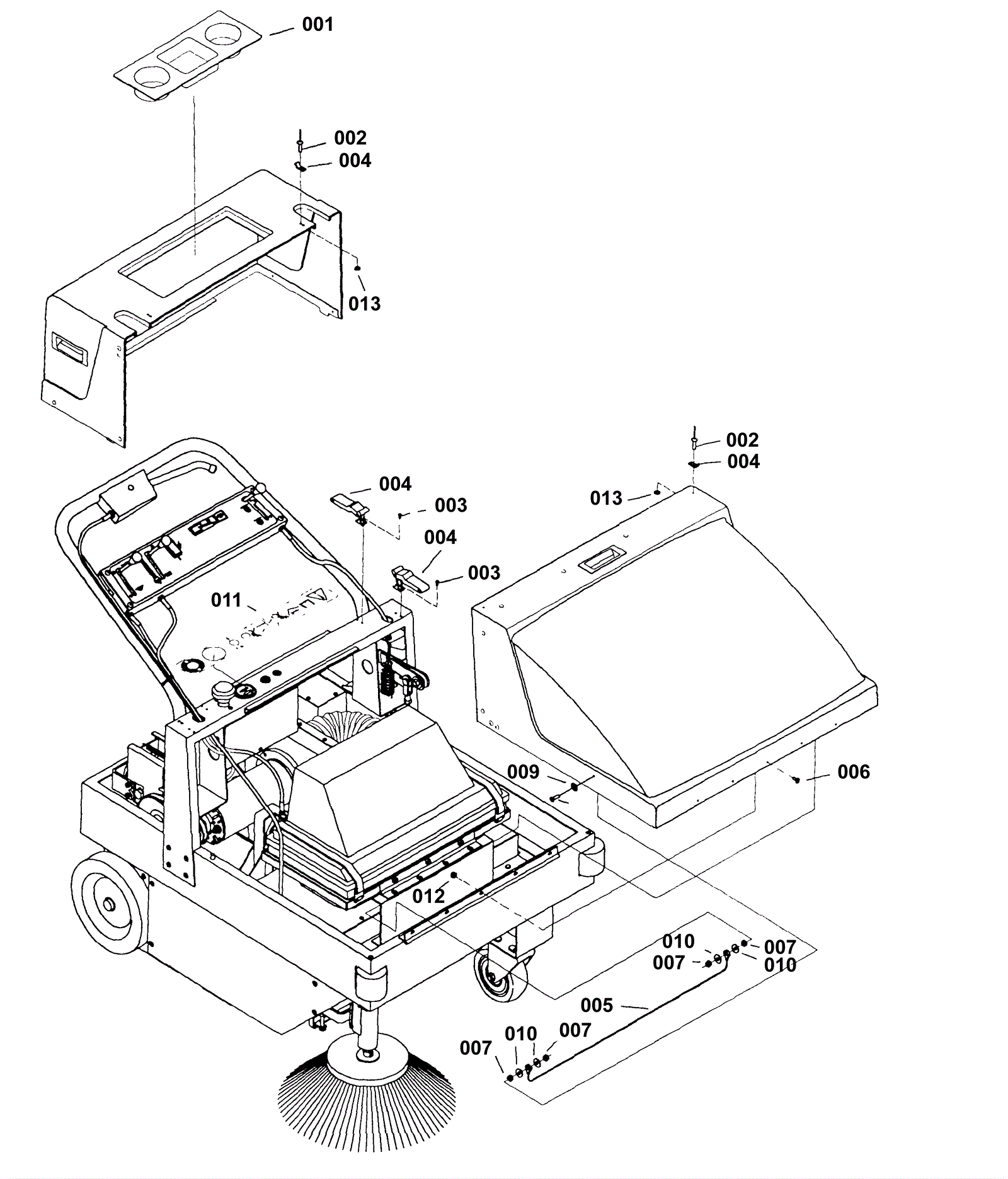

KS35-HM350000QP Rear Tray Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-6239 Rear tray $47.30 1 usually ships 1-5 days
002 174-2051 Pop rivet $0.97 8 usually ships 4-14 days
003 174-6240 Screw 8-32 x .5 A point $0.95 8 usually ships 1-5 days
004 174-3200 Latch $38.72 4 usually ships 4-14 days
005 174-6241 Tilt cable ACS $13.94 1 usually ships 1-5 days
006 999-0615 Screw 10-24 x 5/8 truss head slotted stainless steel $0.99 5 ships same day
007 999-0190 Nut 1/4-20 hex plain finish $0.99 4 ships same day
008 999-0748 Screw 1/4-20 x 1 1/2 flat head phillips zinc plated $0.99 2 ships same day
009 174-6189 Dress washer Call for price 2 usually ships 1-5 days
010 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
011 174-6243 Instruction decal $4.22 1 usually ships 1-5 days
012 174-5230 Washer #6 flat $1.20 8 usually ships 4-14 days
012 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 5 ships same day
