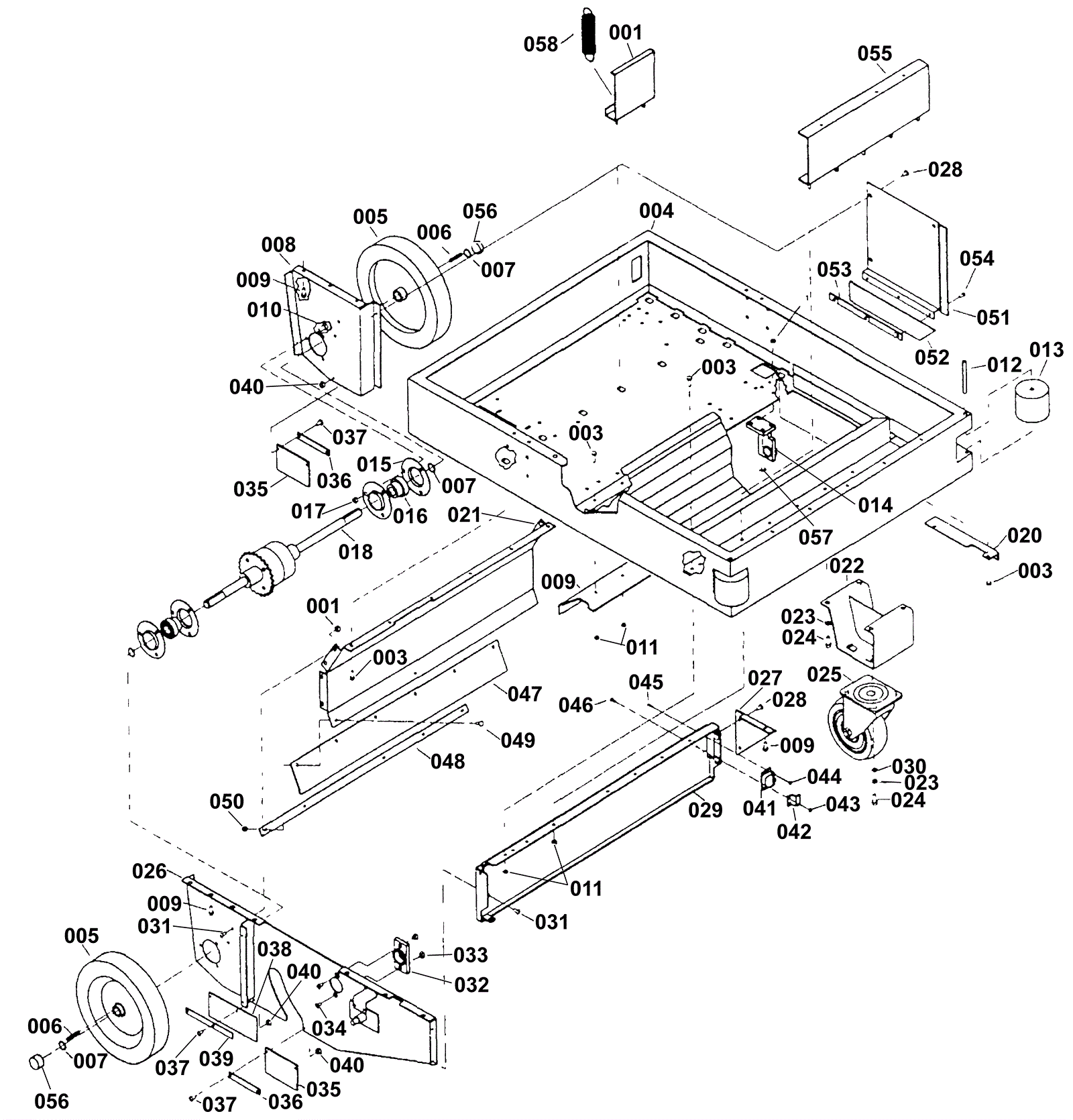

# | Part | Description | Price | Req | Notes | Availability |
001 |
174-6205
|
Filter rest bracket |
Call for price
|
1 |
|
usually ships 1-5 days |
003 |
999-0020
|
Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated |
$0.99
|
20 |
|
ships same day |
004 |
N/A
|
Not available |
Call for price
|
1 |
Mainframe weldment |
usually ships 30-32 days |
005 |
N/A
|
Not available |
Call for price
|
2 |
(Wheel) |
usually ships 30-32 days |
006 |
174-5717
|
Square keyway |
$1.13
|
2 |
|
usually ships 4-12 days |
007 |
174-0283
|
3/4 retaining ring |
$3.97
|
4 |
|
ships same day |
008 |
174-6208
|
Left side plate |
Call for price
|
1 |
|
usually ships 1-5 days |
009 |
999-0019
|
Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated |
$0.99
|
33 |
|
ships same day |
010 |
999-1450
|
Bolt 5/16-18 x 5/8 hex head stainless steel |
$0.90
|
6 |
|
usually ships 1-5 days |
011 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
32 |
|
ships same day |
012 |
174-6209
|
3/8 OD x 3.5 lg rollpin |
$1.16
|
2 |
|
usually ships 1-5 days |
013 |
174-6210
|
Roller |
Call for price
|
2 |
|
usually ships 1-5 days |
014 |
174-6211
|
Axle holding bracket assembly |
$31.03
|
1 |
|
usually ships 1-5 days |
015 |
174-6148
|
Bearing flange |
$4.28
|
4 |
|
usually ships 1-5 days |
016 |
174-1291
|
Bearing with collar |
$63.30
|
2 |
|
usually ships 1-5 days |
017 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
$0.99
|
6 |
|
ships same day |
018 |
174-6212
|
Differential |
$146.46
|
1 |
|
usually ships 1-5 days |
019 |
174-6213
|
Brush guard |
Call for price
|
1 |
|
usually ships 1-5 days |
020 |
174-6214
|
Dust cover bracket |
Call for price
|
1 |
|
usually ships 1-5 days |
021 |
174-6215
|
Rear brush guard |
Call for price
|
1 |
|
usually ships 1-5 days |
022 |
174-6216
|
Caster bracket weldment |
Call for price
|
1 |
|
usually ships 1-5 days |
023 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
8 |
|
ships same day |
024 |
174-0525
|
Bolt 5/16 -18 3/4 hex head steel plated |
$0.97
|
8 |
|
usually ships 1-5 days |
025 |
174-6217
|
6 inch caster |
$69.31
|
1 |
|
usually ships 4-12 days |
026 |
174-6218
|
Right side plate weldment |
Call for price
|
1 |
|
usually ships 1-5 days |
027 |
174-6219
|
Triangle support |
Call for price
|
1 |
|
usually ships 1-5 days |
028 |
999-0567
|
Screw 1/4-20 x 5/8 pan head phillips stainless steel |
$0.99
|
5 |
|
ships same day |
029 |
174-6220
|
Front hopper support |
Call for price
|
1 |
|
usually ships 1-5 days |
030 |
999-0024
|
Washer 5/16 flat stainless steel |
$1.34
|
4 |
|
usually ships 14-31 days |
031 |
999-0487
|
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
$0.99
|
12 |
|
ships same day |
032 |
174-6221
|
Nylon bushing |
$33.12
|
1 |
|
usually ships 1-5 days |
033 |
999-0190
|
Nut 1/4-20 hex plain finish |
$0.99
|
2 |
|
ships same day |
034 |
174-5640
|
Screw 1/4-20 x 1 steel plated |
$1.77
|
2 |
|
usually ships 1-5 days |
035 |
174-6222
|
4 inch rubber flap |
$10.47
|
2 |
|
usually ships 1-5 days |
036 |
174-6223
|
4 inch retainer strip |
Call for price
|
2 |
|
usually ships 1-5 days |
037 |
174-6224
|
Screw 10-32 x 5/8 truss head |
$0.97
|
7 |
|
usually ships 1-5 days |
038 |
174-6225
|
6 inch rubber flap |
$11.60
|
1 |
|
usually ships 1-5 days |
039 |
174-6226
|
6 inch retainer strap |
Call for price
|
1 |
|
usually ships 1-5 days |
040 |
999-0086
|
Nut 10-32 nylon insert lock zinc plated |
$0.99
|
4 |
|
ships same day |
041 |
174-6227
|
Latch catch |
Call for price
|
1 |
|
usually ships 1-5 days |
042 |
174-6228
|
Latch bracket |
$32.99
|
1 |
|
usually ships 1-5 days |
043 |
999-0357
|
Nut 8-32 nylon insert lock stainless steel |
$0.90
|
2 |
|
ships same day |
044 |
999-0195
|
Nut 6-32 hex plain |
$0.90
|
2 |
|
ships same day |
045 |
174-5638
|
Screw 6-32 x 3/8 steel plated |
$0.97
|
2 |
|
usually ships 1-5 days |
046 |
174-6229
|
Screw 8-32 x 3 3/4 flat head |
$1.21
|
2 |
|
ships same day |
047 |
174-6230
|
Rubber flap |
$41.00
|
1 |
|
usually ships 1-5 days |
048 |
174-6231
|
Flap holding bar |
Call for price
|
1 |
|
usually ships 1-5 days |
049 |
999-0615
|
Screw 10-24 x 5/8 truss head slotted stainless steel |
$0.99
|
6 |
|
ships same day |
050 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
$1.76
|
6 |
|
ships same day |
051 |
174-6232
|
Dust cover |
$22.62
|
1 |
|
usually ships 1-5 days |
052 |
174-6233
|
Rubber flap |
$16.77
|
1 |
|
usually ships 1-5 days |
053 |
174-6234
|
Flap retainer strip |
$45.03
|
1 |
|
usually ships 1-5 days |
054 |
999-0586
|
Screw 10-24 x 1/2 truss head stainless steel |
$0.90
|
3 |
|
ships same day |
055 |
174-6235
|
Mounting bracket |
Call for price
|
1 |
|
usually ships 1-5 days |
056 |
174-6236
|
Wheel cover (OBSOLETE) |
Call for price
|
2 |
|
usually ships 4-12 days |
057 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
$0.99
|
4 |
|
ships same day |
058 |
174-0405
|
Extension spring |
$7.39
|
1 |
|
usually ships 1-5 days |
