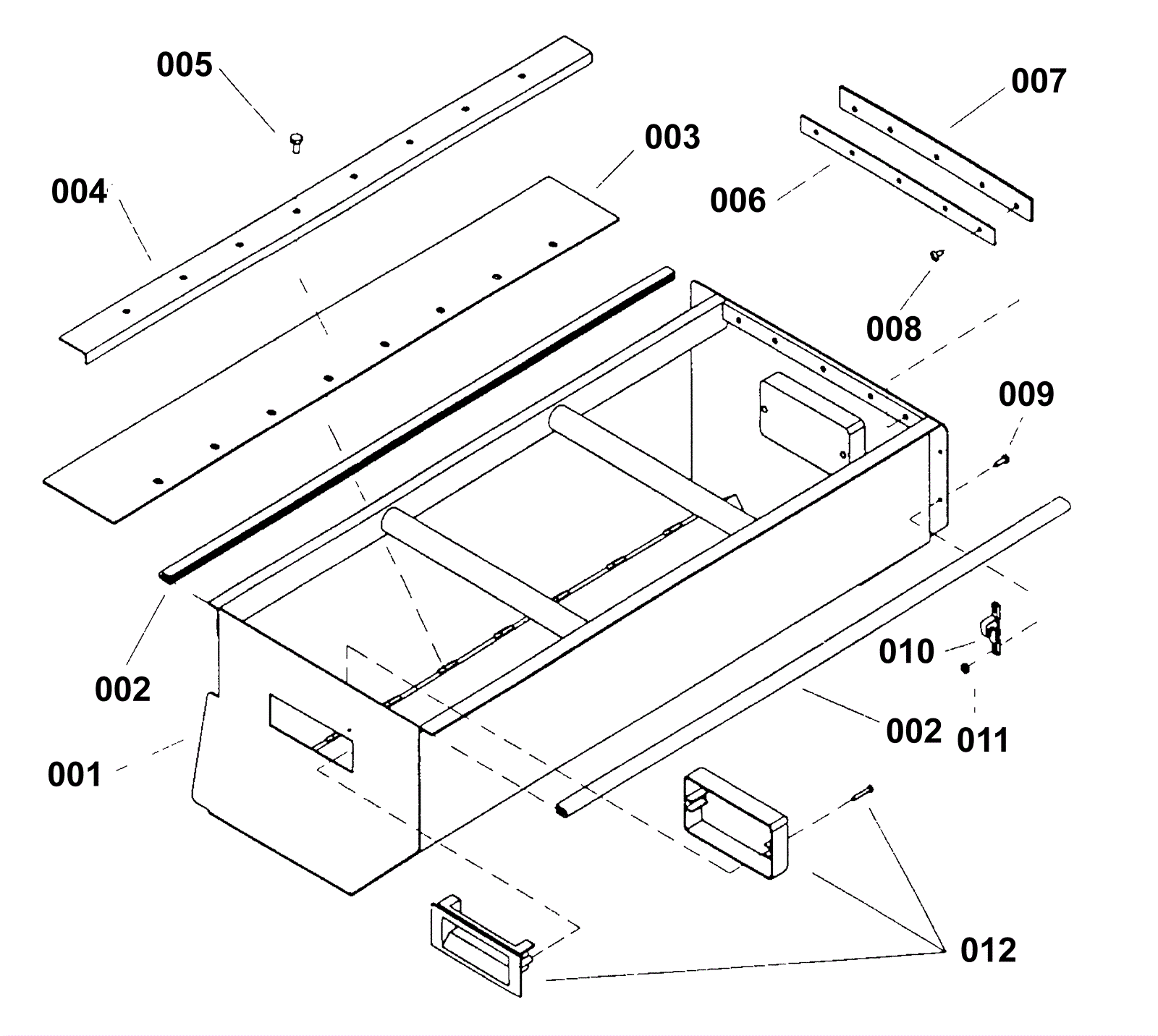

KS35-HM350000QP Hopper Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-6196 Hopper weldment $345.72 1 usually ships 1-5 days
002 174-6197 Edging $11.41 2 usually ships 4-14 days
003 174-6198 Hopper flap $32.43 1 usually ships 4-14 days
004 174-6199 Flap flange $89.79 1 usually ships 1-5 days
005 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 8 ships same day
006 174-6200 Seal plate $0.90 1 usually ships 1-5 days
007 174-6201 Hopper seal $5.69 1 usually ships 1-5 days
008 174-6202 Screw 10-24 x .37 $0.97 5 usually ships 1-5 days
009 174-6143 Screw 8 - 32 x 1/2 $0.97 2 usually ships 1-5 days
010 174-6203 Latch keeper $3.81 1 usually ships 4-14 days
011 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
012 174-6204 Pocket pull $8.76 2 usually ships 1-5 days
