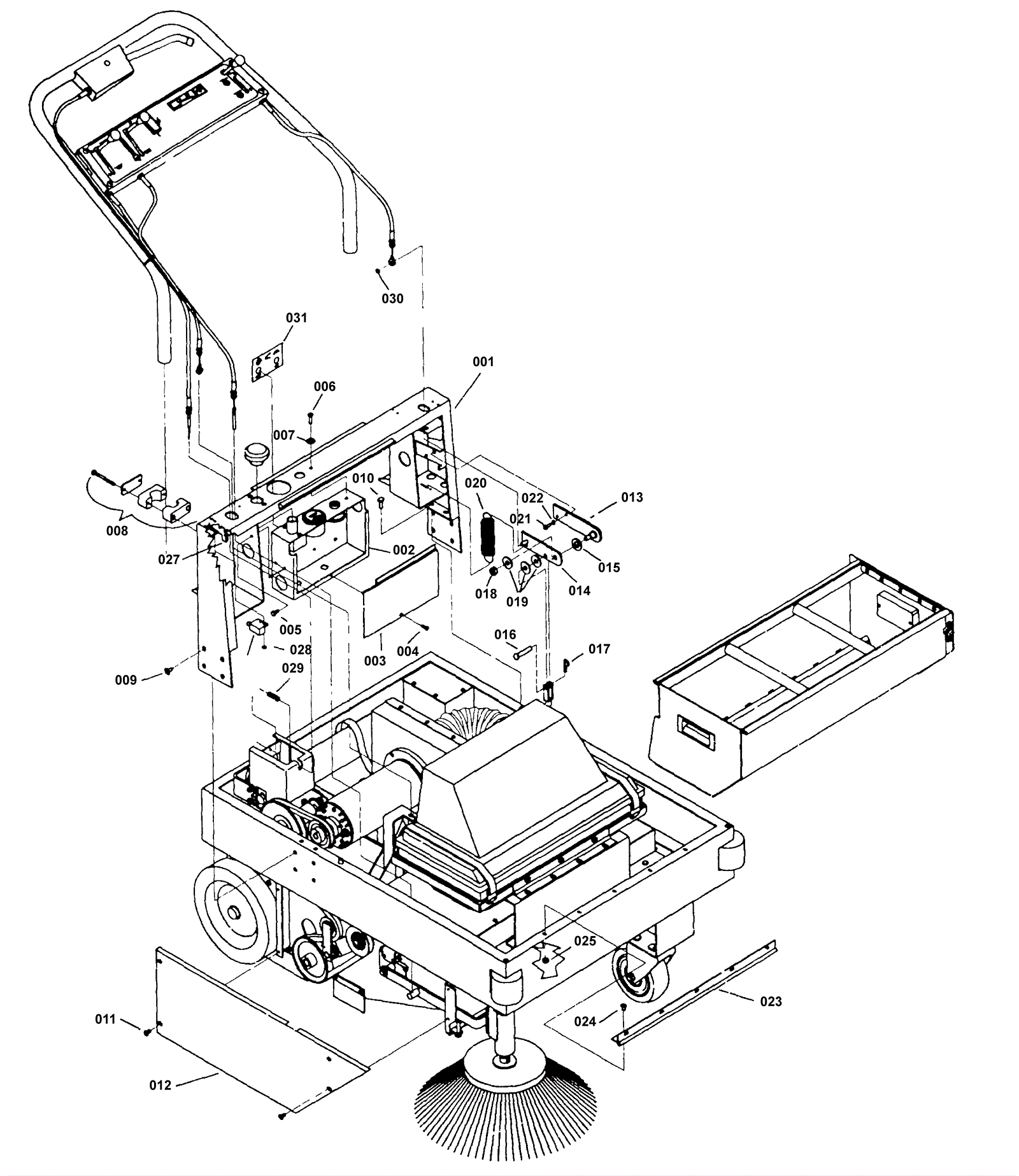

# | Part | Description | Price | Req | Notes | Availability |
001 |
174-6186
|
Handle support weldment |
Call for price
|
1 |
|
usually ships 1-5 days |
002 |
174-6187
|
Electrical box assembly |
$226.03
|
1 |
|
usually ships 1-5 days |
003 |
174-6188
|
Electrical box cover |
Call for price
|
1 |
|
usually ships 1-5 days |
004 |
174-3159
|
Screw 10 x 3/8 pan head stainless steel |
$0.97
|
1 |
|
usually ships 1-5 days |
005 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
$0.90
|
2 |
|
ships same day |
006 |
999-0326
|
Screw 1/4-20 x 3/4 flat head phillips zinc plated |
$0.90
|
1 |
|
ships same day |
007 |
174-6189
|
Dress washer |
Call for price
|
1 |
|
usually ships 1-5 days |
008 |
174-6190
|
Handle holder w/ mtg. plate |
Call for price
|
4 |
|
usually ships 1-5 days |
009 |
999-0601
|
Screw 5/16-18 x 5/8 pan head phillips zinc plated |
$0.90
|
8 |
|
ships same day |
010 |
999-0030
|
Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated |
$1.04
|
4 |
|
ships same day |
011 |
999-0487
|
Screw 1/4-20 x 3/4 pan head phillips zinc plated |
$0.99
|
4 |
|
ships same day |
012 |
174-6095
|
Right side dust cover |
$157.24
|
1 |
|
usually ships 1-5 days |
013 |
174-6191
|
Pivot bar weldment |
Call for price
|
1 |
|
usually ships 1-5 days |
014 |
174-6192
|
Crank arm |
Call for price
|
1 |
|
usually ships 1-5 days |
015 |
999-0566
|
Washer 1/2 flat nylon |
$0.99
|
1 |
|
ships same day |
016 |
174-0195
|
Clevis pin |
$0.86
|
1 |
|
ships same day |
017 |
174-0200
|
Cotter pin |
$1.20
|
1 |
|
usually ships 4-12 days |
018 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
$0.99
|
1 |
|
ships same day |
019 |
999-0617
|
Washer 3/8 x 1 flat stainless steel |
$1.82
|
3 |
|
ships same day |
020 |
174-0405
|
Extension spring |
$7.39
|
1 |
|
usually ships 1-5 days |
021 |
174-0525
|
Bolt 5/16 -18 3/4 hex head steel plated |
$0.97
|
2 |
|
usually ships 1-5 days |
022 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
$0.90
|
2 |
|
ships same day |
023 |
174-6193
|
Hinge cover |
Call for price
|
1 |
|
usually ships 1-5 days |
024 |
999-0615
|
Screw 10-24 x 5/8 truss head slotted stainless steel |
$0.99
|
5 |
|
ships same day |
025 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
$1.76
|
5 |
|
ships same day |
026 |
174-6144
|
Cover open switch (OBSOLETE) |
Call for price
|
1 |
|
usually ships 4-12 days |
027 |
174-6143
|
Screw 8 - 32 x 1/2 |
$0.97
|
2 |
|
usually ships 1-5 days |
028 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
$1.00
|
2 |
|
ships same day |
029 |
174-6194
|
Compression spring |
$4.91
|
1 |
|
usually ships 1-5 days |
030 |
174-0140
|
Retaining ring |
$1.19
|
1 |
|
usually ships 4-12 days |
031 |
174-6195
|
Fuse decal |
Call for price
|
1 |
|
usually ships 1-5 days |
