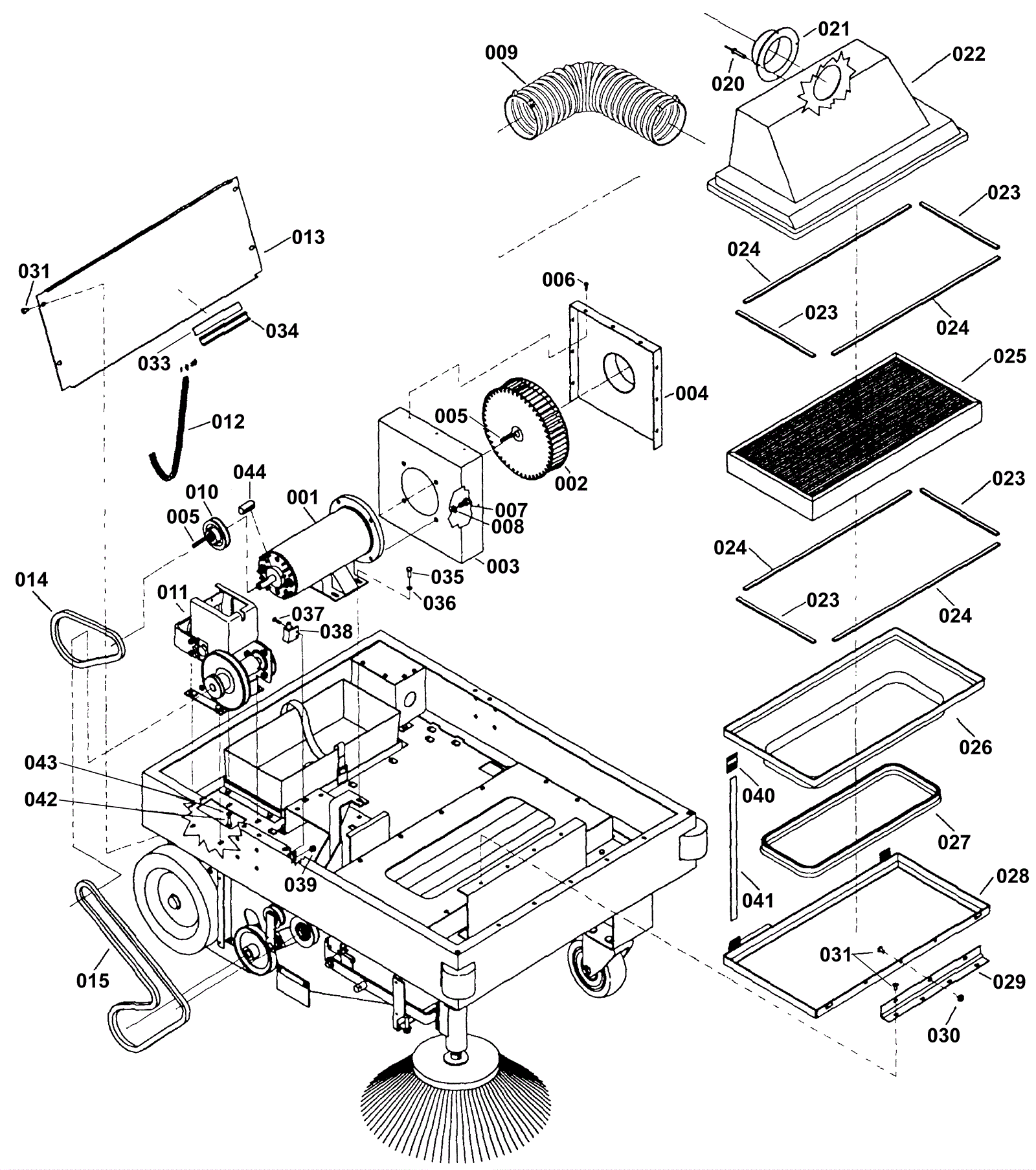

KS35-HM350000QP Drive Motor and Vacuum Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
001 174-6125 Drive motor 12V Call for price 1 usually ships 1-5 days
002 174-6126 Fan cage Call for price 1 usually ships 1-5 days
003 174-6127 Vacuum fan housing Call for price 1 usually ships 1-5 days
004 174-6128 Fan housing lid weldment Call for price 1 usually ships 1-5 days
005 174-5717 Square keyway $1.13 2 usually ships 4-14 days
006 174-5053 Screw 10 x 1/2 stainless steel $1.20 9 usually ships 1-5 days
008 999-0201 Washer 3/8 internal star lock $0.99 4 ships same day
009 174-6129 Flexible tubing $34.30 1 usually ships 1-5 days
010 174-6130 Drive 4L 2.8 x .625 pulley $9.32 1 usually ships 1-5 days
011 174-6131 Traction drive assembly Call for price 1 usually ships 1-5 days
012 174-0243 Drive chain $26.48 1 usually ships 4-14 days
013 174-6132 Rear cover Call for price 1 usually ships 1-5 days
014 174-6133 3L250 belt $18.04 1 usually ships 4-14 days
015 174-6134 3V475 belt $33.69 1 usually ships 4-14 days
020 174-2051 Pop rivet $0.97 4 usually ships 4-14 days
021 174-6135 Hole reinforcement Call for price 1 usually ships 1-5 days
022 174-6136 Vacuum filter lid $54.41 1 usually ships 1-5 days
023 174-6137 Gasket $1.66 2 usually ships 4-14 days
024 174-6138 Long gasket $7.71 2 usually ships 4-14 days
025 174-6139 Panel filter $169.18 1 usually ships 4-14 days
026 174-6140 Vacuum filter base $52.04 1 usually ships 1-5 days
027 174-6141 Filter base gasket $25.35 1 usually ships 1-5 days
028 174-6142 Filter bracket weldment Call for price 1 usually ships 1-5 days
029 174-0067 Hinge $25.30 1 usually ships 1-5 days
030 999-0190 Nut 1/4-20 hex plain finish $0.99 5 ships same day
031 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 5 ships same day
033 174-0062 Foam tape (sold by the foot) $2.89 1 usually ships 4-14 days
034 174-0167 U-channel $63.84 1 usually ships 1-5 days
035 174-0525 Bolt 5/16 -18 3/4 hex head steel plated $0.97 4 usually ships 1-5 days
036 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
037 174-6143 Screw 8 - 32 x 1/2 $0.97 2 usually ships 1-5 days
038 174-6144 Cover open switch (OBSOLETE) Call for price 1 usually ships 4-14 days
039 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
040 174-6145 Filter strap buckle $11.41 2 usually ships 1-5 days
041 174-6146 Filter strap $22.09 2 usually ships 4-14 days
042 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated $0.99 4 ships same day
043 999-0060 Washer 1/4 split lock plain finish $0.99 4 ships same day
044 174-6147 Carbon brushes (4 per set) Call for price 1 Set usually ships 1-5 days
